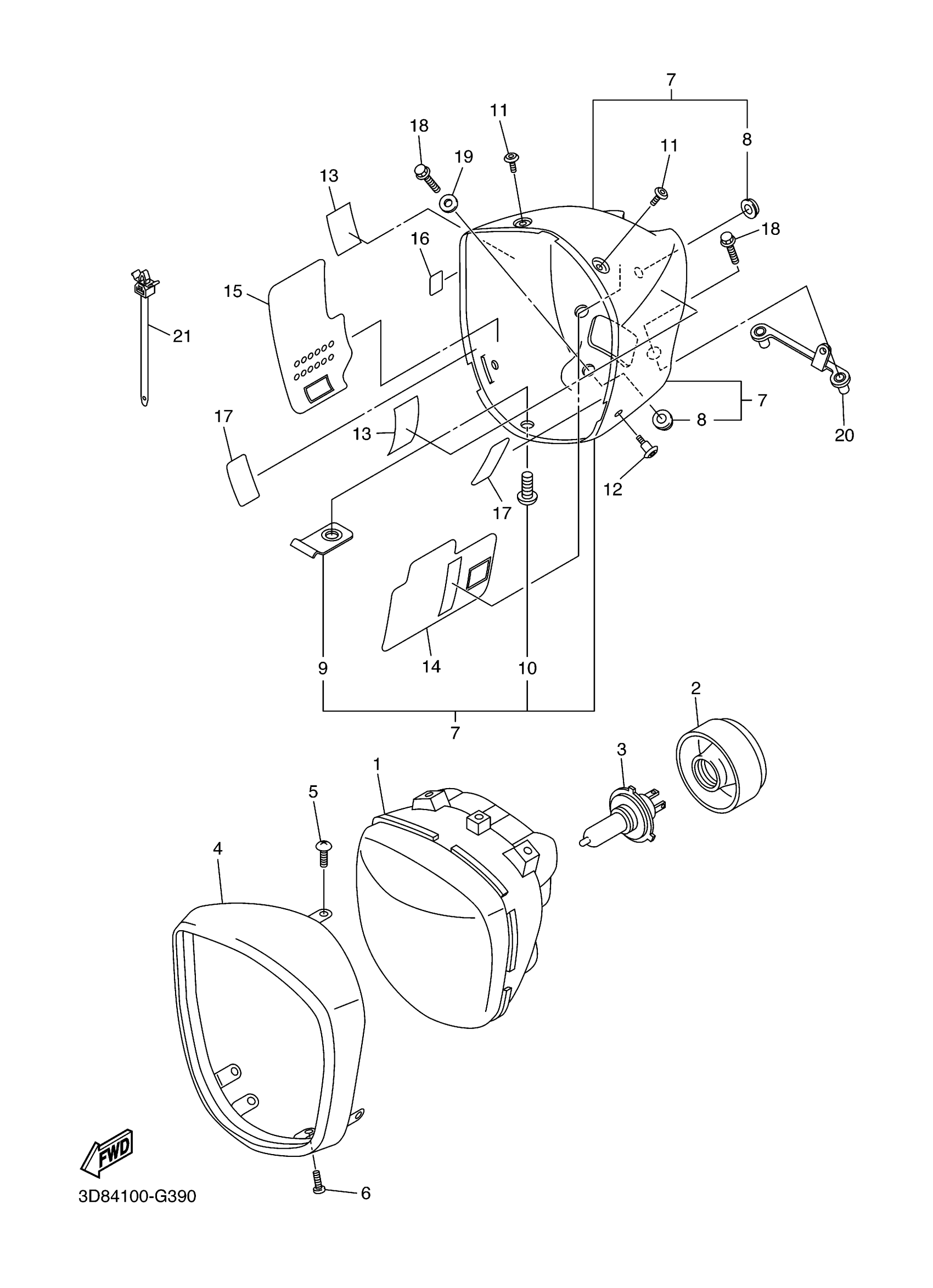

Yamaha XVS13CTXS (V STAR 1300 TOURER) 5S641 2008 HEADLIGHT Diagram

#

Description
Price

1

LENS ASSY

3D8-84320-00-00

$404.99

2

COVER, SOCKET

5JW-84397-00-00

Unavailable

3

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

4

RIM, HEADLIGHT

3D8-84315-00-00

$157.99

5

SCREW, PAN

98517-05012-00

$4.73

6

SCREW, OVAL HEAD TAPPING

97780-40112-00

Unavailable

7

BODY ASSY

3D8-84330-00-P4

Unavailable

7

BODY ASSY

3D8-84330-00-P5

Unavailable

7

BODY ASSY

3D8-84330-00-P6

Unavailable

8

DAMPER, HEADLIGHT 1

42X-84366-00-00

$20.99

9

. STAY, 2

3D8-8431T-00-00

Unavailable

10

SCREW

3D8-84526-00-00

$7.99

11

BOLT

90111-05007-00

$8.49

12

BOLT

90111-05020-00

$4.24

13

SEAL 1

3SP-21732-00-00

$17.49

14

HOLDER, 1

3D8-8411T-00-00

Unavailable

15

HOLDER, 2

3D8-8411U-00-00

Unavailable

16

PROTECTOR

3MA-27491-00-00

Unavailable

17

SEAL 1

3D8-21575-00-00

Unavailable

18

BOLT, FLANGE

95022-06025-00

Unavailable

19

COLLAR

90387-06175-00

Unavailable

20

HOLDER

3D8-84387-00-00

Unavailable

21

CLAMP(2TV)

90464-10112-00

Unavailable
