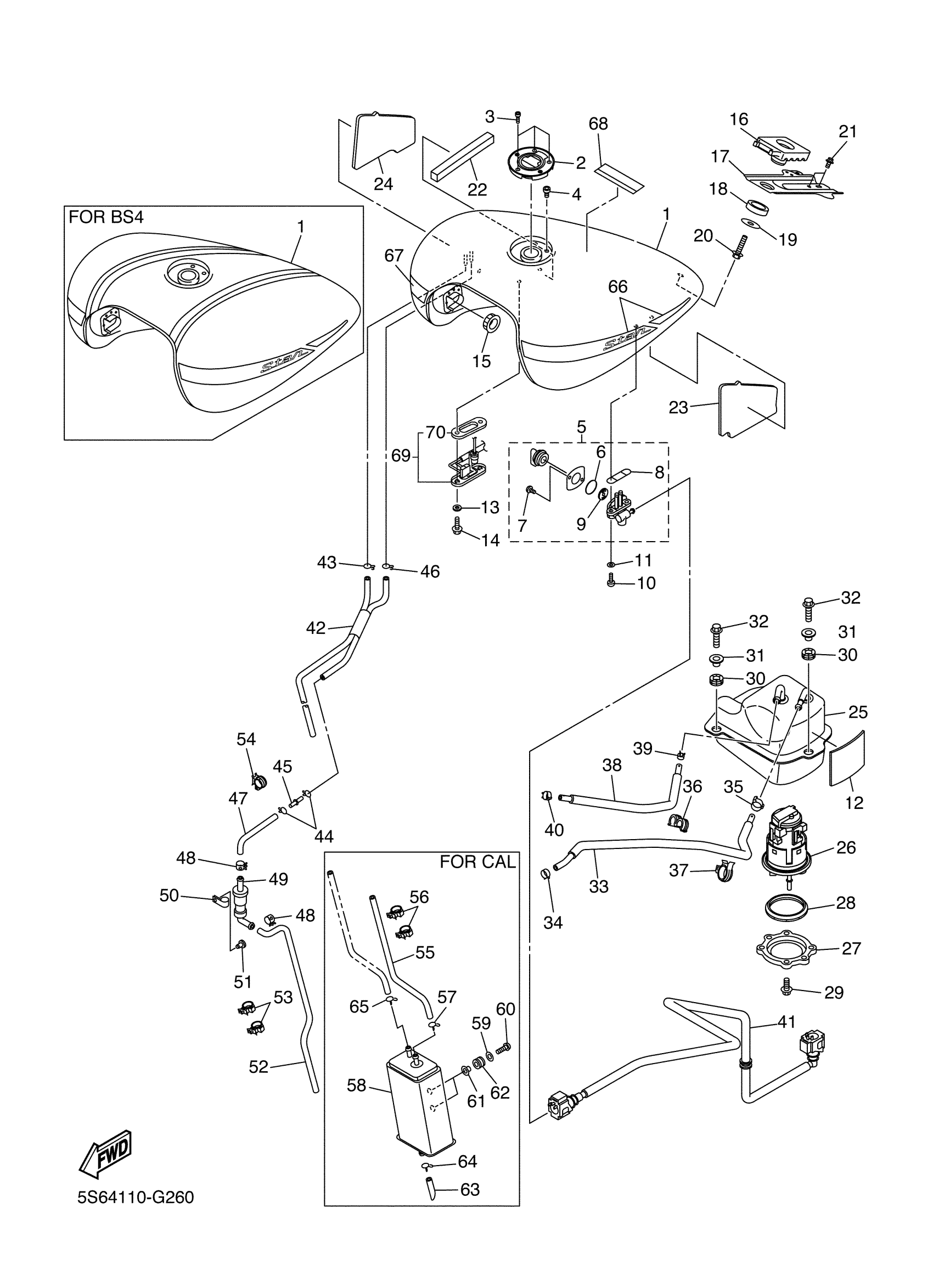

Yamaha XVS13CTXS (V STAR 1300 TOURER) 5S641 2008 FUEL TANK Diagram
#
1
FUEL TANK COMP. (VERY DARK RED METALLIC 2)
3D8-YK241-00-P5
Unavailable
1
FUEL TANK COMP. (LIGHT YELLOWISH GRAY ME 9)
3D8-YK241-00-P6
Unavailable
2
CAP ASSY
3D8-24602-10-00
Unavailable
14
BOLT, FLANGE
95817-06016-00
Unavailable
15
DAMPER, LOCATING
4H7-24181-00-00
Unavailable
16
DAMPER, LOCATING 2
1D7-24182-00-00
Unavailable
17
BRACKET, TANK FITTING
3D8-2413Y-00-00
Unavailable
18
DAMPER, LOCATING 3
4TR-24183-00-00
Unavailable
19
COLLAR
90387-06177-00
Unavailable
20
BOLT, FLANGE
95812-06030-00
Unavailable
21
BOLT, FLANGE
95817-08012-00
Unavailable
22
DAMPER 1
3XV-28217-00-00
Unavailable
23
PROTECTOR, 1
3D8-2476U-00-00
Unavailable
24
PROTECTOR,2
3D8-2476V-00-00
Unavailable
25
PUMP CASE COMP.
3D8-244A0-00-00
Unavailable
26
FUEL PUMP COMP
3D8-13907-03-00
Unavailable
27
BRACKET, FUEL PUMP
3D8-24491-10-00
Unavailable
28
O-RING
19B-24486-01-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
30
DAMPER, LOCATING 5
3D8-24185-00-00
Unavailable
31
COLLAR(2TV)
90387-062U9-00
Unavailable
32
BOLT, FLANGE
95817-06025-00
Unavailable
33
PIPE, FUEL 1
3D8-24311-11-00
Unavailable
34
CLIP
90467-12004-00
Unavailable
35
CLIP
90467-130A1-00
Unavailable
36
CLAMP
90464-19001-00
Unavailable
37
CLAMP(4GY)
90464-20191-00
Unavailable
38
PIPE 2
3D8-24312-10-00
Unavailable
39
CLIP
90467-160A2-00
Unavailable
40
CLIP
5PX-2411M-00-00
Unavailable
41
PIPE, FUEL 1
3D8-13971-00-00
Unavailable
42
HOSE ASSY
3D8-2318J-01-00
Unavailable
43
CLIP
90467-090A2-00
Unavailable
44
CLIP
90467-090A2-00
Unavailable
45
JOINT
4XY-14568-00-00
Unavailable
46
CLIP
90467-090A2-00
Unavailable
47
PIPE 13
3D8-24324-00-00
Unavailable
48
CLIP
90467-09001-00
Unavailable
49
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
50
CLAMP
90464-15014-00
Unavailable
51
RIVET
90269-05005-00
Unavailable
52
HOSE
90445-10040-00
Unavailable
53
CLAMP(4GY)
90464-20191-00
Unavailable
54
CLAMP(4HM)
90464-15192-00
Unavailable
55
PIPE 1
3D8-2486A-01-00
Unavailable
56
CLAMP(4KM)
90464-25217-00
Unavailable
57
CLIP
90467-090A2-00
Unavailable
58
CANISTER ASSY
5PX-24170-00-00
Unavailable
59
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
60
BOLT
90111-06046-00
Unavailable
61
COLLAR(42G)
90387-062L2-00
Unavailable
62
GROMMET (1E5)
90480-13163-00
Unavailable
63
PIPE 14
3D8-24325-00-00
Unavailable
64
CLIP
90467-100A1-00
Unavailable
65
CLIP
90467-090A2-00
Unavailable
66
EMBLEM 3D SET
3D8-2416C-00-00
Unavailable
67
EMBLEM 3D SET
3D8-2417C-00-00
Unavailable
68
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
69
SENDER UNIT ASSY, FUEL METER
3D8-85752-11-00
Unavailable
70
GASKET, SENDER UNIT
3D8-85753-00-00
Unavailable
