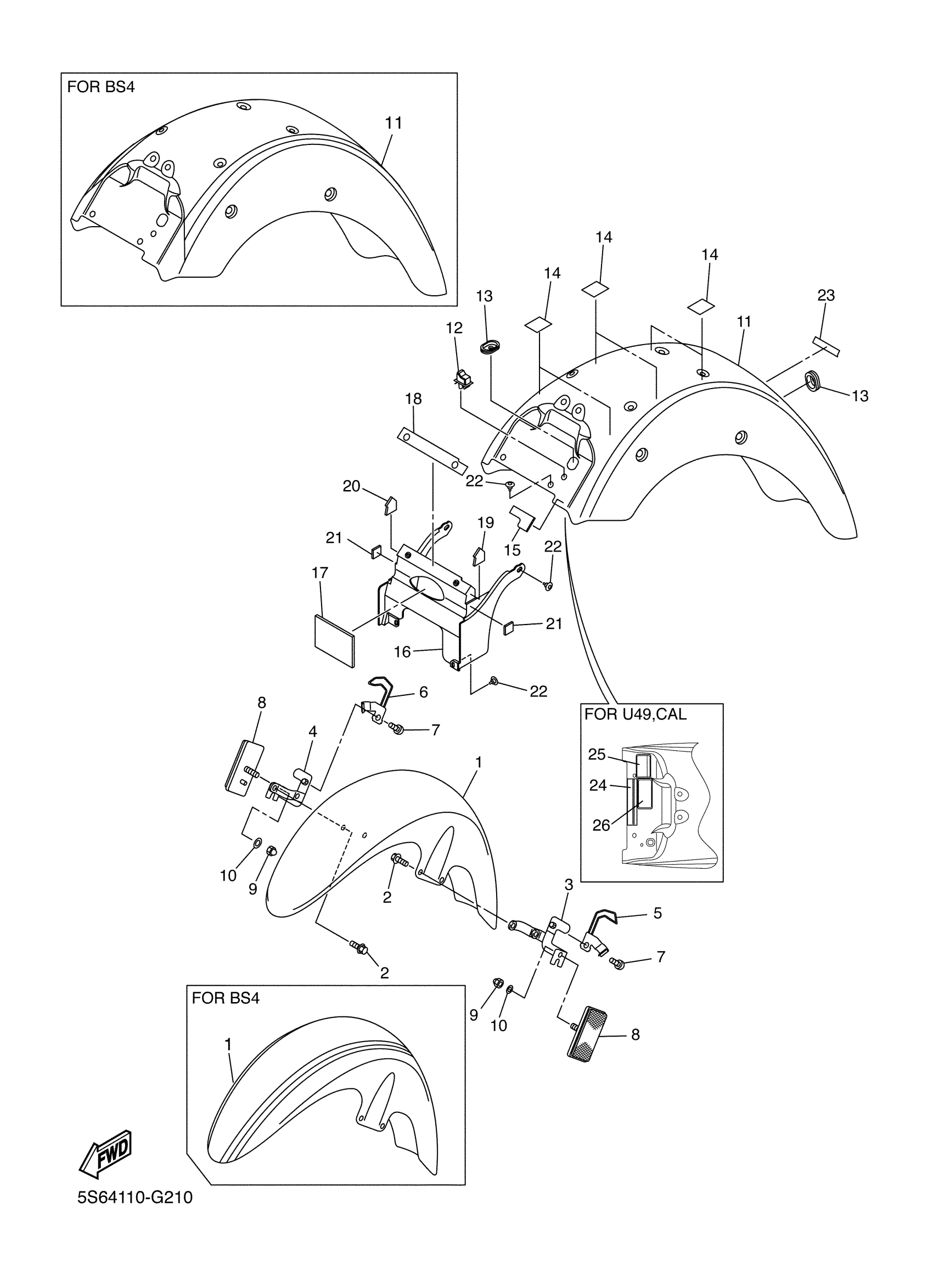

Yamaha XVS13CTXS (V STAR 1300 TOURER) 5S641 2008 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
3D8-21510-01-P8
Unavailable
1
FRONT FENDER COMP.
3D8-W2151-01-P6
Unavailable
3
STAY 1
3D8-21587-00-00
Unavailable
4
STAY 2
3D8-21588-00-00
Unavailable
5
HOLDER,WIRE 1
3D8-21597-00-00
Unavailable
6
HOLDER, WIRE 2
3D8-21598-00-00
Unavailable
11
REAR FENDER COMP.
3D8-21610-00-P5
Unavailable
11
REAR FENDER COMP.
3D8-21610-00-P6
Unavailable
12
CLAMP (1J7)
90464-16021-00
Unavailable
13
GROMMET
90480-01015-00
Unavailable
14
SEAL
5PX-21669-01-00
Unavailable
15
DAMPER
3D8-21747-00-00
Unavailable
16
GUARD, MUD (BLUISH SILVER 4)
3D8-21629-00-P4
Unavailable
16
GUARD, MUD (VERY DARK RED METALLIC 2)
3D8-21629-00-P5
Unavailable
16
GUARD, MUD
3D8-21629-00-P6
Unavailable
17
FLAP
3D8-21621-00-00
Unavailable
18
DAMPER 1
3D8-21638-00-00
Unavailable
19
DAMPER 2
3D8-21639-00-00
Unavailable
20
DAMPER
3D8-21649-00-00
Unavailable
21
PROTECTOR
3D8-21652-00-00
Unavailable
22
RIVET(4PH)
90269-07077-00
Unavailable
23
EMBLEM, YAMAHA
3WF-2153E-71-00
Unavailable
24
PLATE, EPA (CALIFORNIA)
3D8-2176P-00-00
Unavailable
24
PLATE, EPA (NON CALIFORNIA)
3D8-2179W-10-00
Unavailable
25
PLATE, ROUTING 2
5PX-21686-00-00
Unavailable
26
LABEL, TIRE
1D7-21668-00-00
Unavailable
