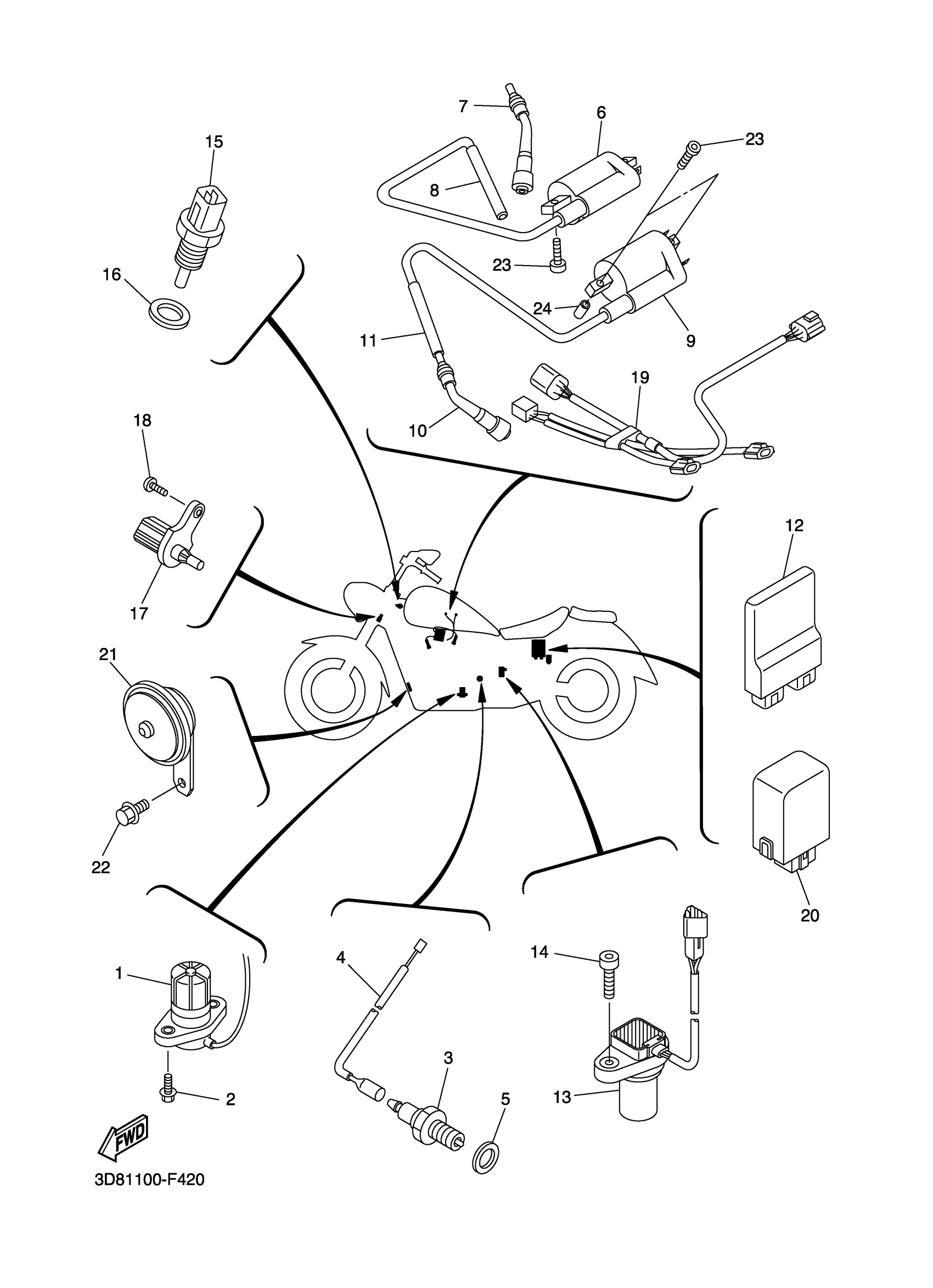

Yamaha XVS13CTXS (V STAR 1300 TOURER) 5S641 2008 ELECTRICAL 1 Diagram

#

Description
Price

1

OIL LEVEL GAUGE ASSY

3D8-85720-00-00

$113.99

2

BOLT, FLANGE

95022-06016-00

$3.62

3

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

4

WIRE, SUB LEAD

3D8-82509-00-00

Unavailable

5

GASKET (1KH,1.0T)

90430-10148-00

$5.60

6

IGNITION COIL ASSY

3D8-82310-03-00

$58.99

7

PLUG CAP ASSY

3D8-82370-00-00

$90.99

8

HOSE

5RU-82353-00-00

$4.78

9

IGNITION COIL ASSY

3D8-82310-11-00

Unavailable

10

PLUG CAP ASSY

3D8-82370-00-00

$90.99

11

HOSE

5RU-82353-00-00

$4.78

12

ENGINE CONTROL UNIT ASSY

3D8-8591A-10-00

$886.99

13

Sensor Speed

3D8-83755-01-00

Unavailable

14

BOLT, SOCKET

91314-06016-00

$8.49

15

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

16

WASHER, PLATE

90201-12790-00

Unavailable

17

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

18

SCREW, PAN

98517-05012-00

Unavailable

19

WIRE, SUB LEAD

3D8-82509-10-00

Unavailable

20

FLASHER RELAY ASSY

3D8-83350-01-00

Unavailable

21

HORN

3D8-83371-00-00

Unavailable

22

BOLT, WASHER BASED

90105-082A5-00

Unavailable

23

. BOLT

91380-06020-00

Unavailable

24

HOSE

90445-08029-00

Unavailable
