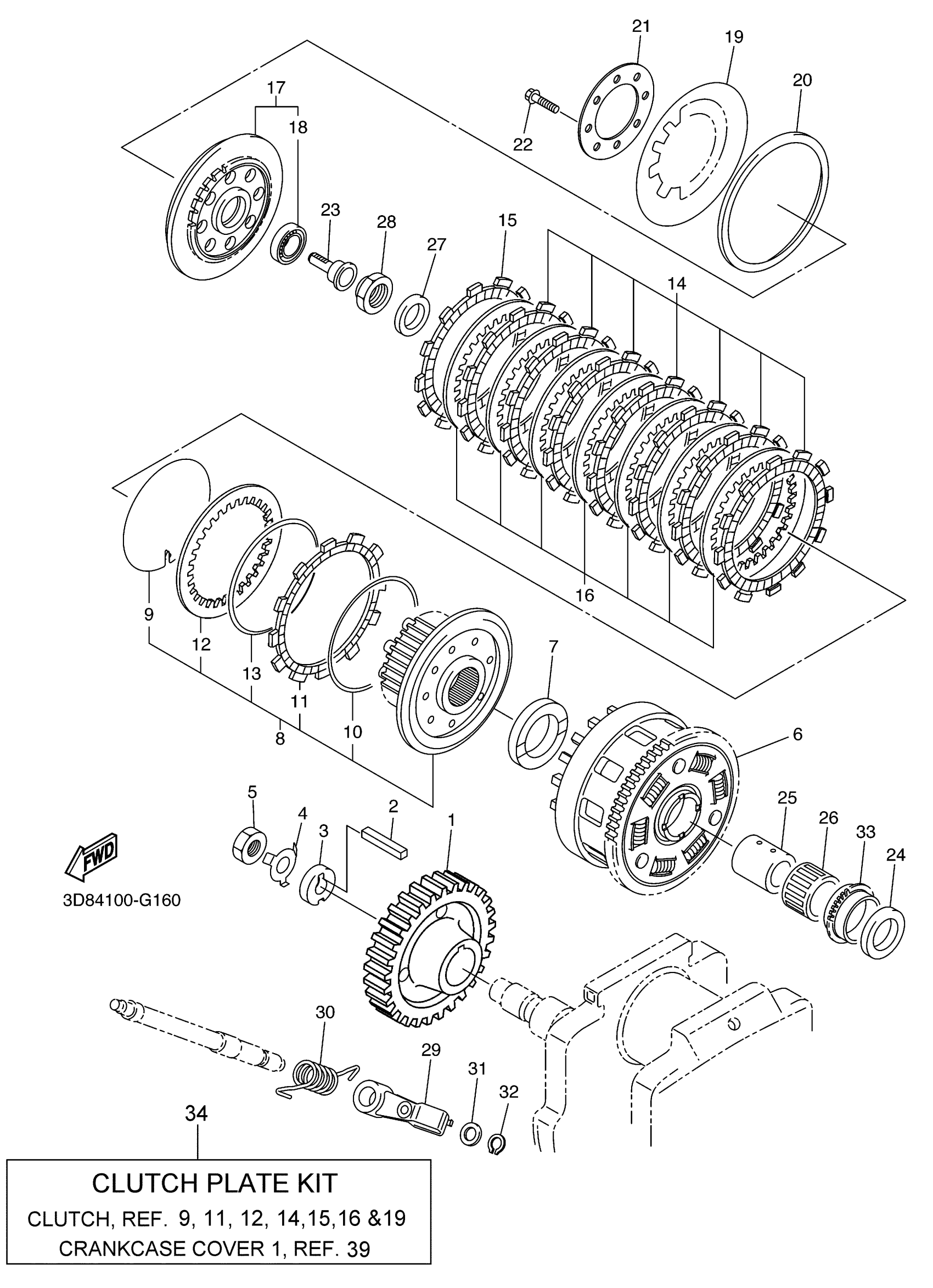

Yamaha XVS13CTXS (V STAR 1300 TOURER) 5S641 2008 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE
3D8-16111-00-00
Unavailable
2
KEY, STRAIGHT
90282-10001-00
Unavailable
3
SPACER 1
3D8-16181-00-00
Unavailable
5
NUT
90170-18008-00
Unavailable
6
PRIMARY DRIVEN GEAR COMP.
3D8-16150-20-00
Unavailable
7
PLATE, THRUST 1
5YU-16154-00-00
Unavailable
8
CLUTCH BOSS ASSY
3D8-16370-00-00
Unavailable
17
PRESSURE PLATE ASSY
3D8-16350-00-00
Unavailable
18
BEARING(2JN)
93306-00315-00
Unavailable
19
SPRING, CLUTCH 2
1TX-16334-00-00
Unavailable
20
HOUSING, SPRING
36Y-16335-00-00
Unavailable
21
PLATE, PRESSURE 2
1TX-16352-00-00
Unavailable
22
BOLT, FLANGE
95817-06025-00
Unavailable
23
ROD, PUSH 1
4XV-16356-01-00
Unavailable
24
PLATE, THRUST 2
3D8-16164-10-00
Unavailable
25
COLLAR
90387-26006-00
Unavailable
26
BEARING
93310-33560-00
Unavailable
27
WASHER, CONICAL SPRING
90208-20001-00
Unavailable
28
NUT
90179-20022-00
Unavailable
29
PUSH LEVER ASSY
3D8-16340-00-00
Unavailable
30
SPRING, TORSION
90508-18040-00
Unavailable
31
WASHER, PLATE
90201-10029-00
Unavailable
32
CIRCLIP(10W)
99009-10400-00
Unavailable
33
SPROCKET, DRIVE
3D8-13354-10-00
Unavailable
34
CLUTCH PLATE KIT
27D-W001G-00-00
Unavailable
