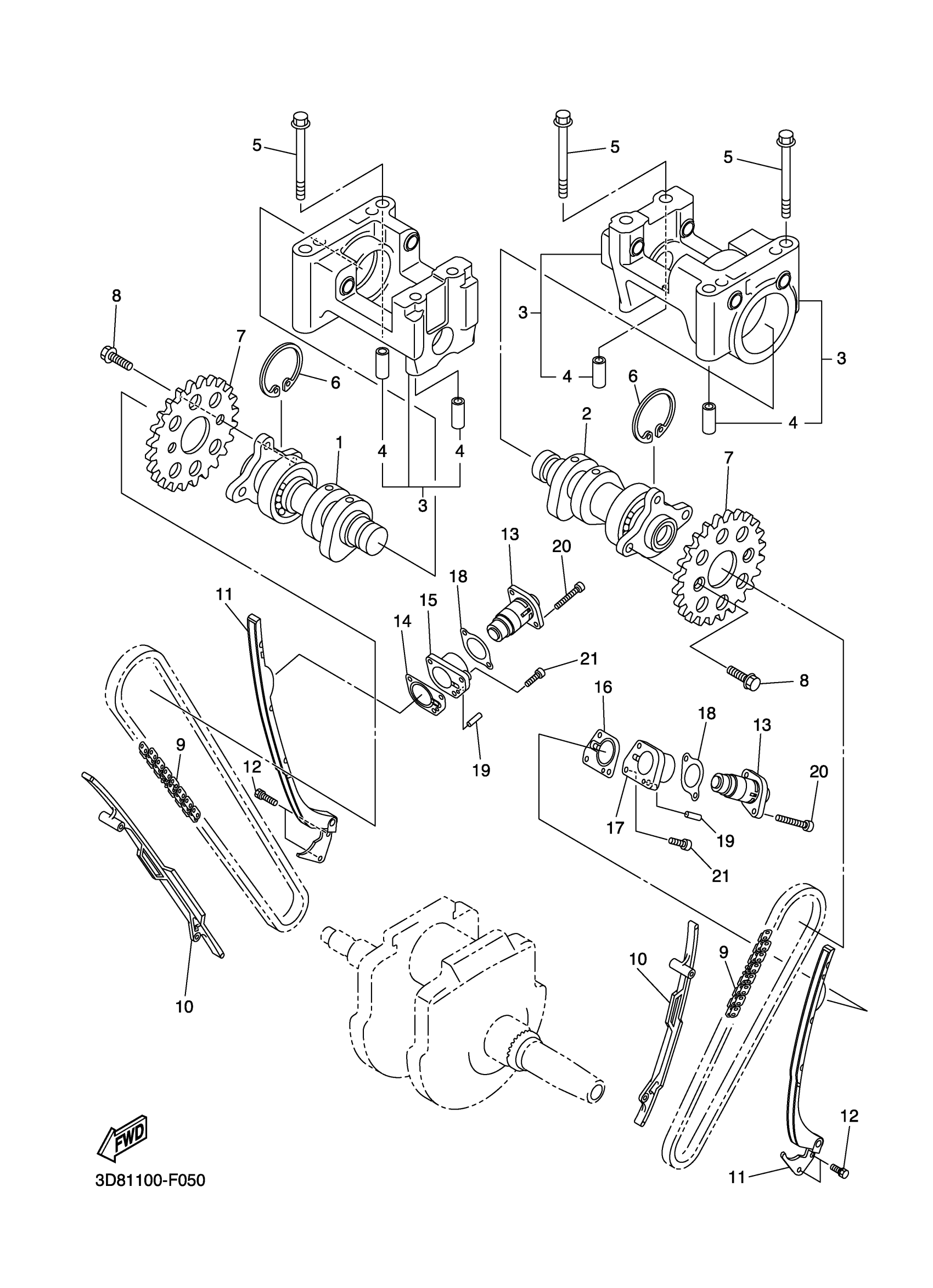

Yamaha XVS13CTXS (V STAR 1300 TOURER) 5S641 2008 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

3D8-12170-10-00

$220.99

2

CAMSHAFT ASSY 2

3D8-12180-00-00

Unavailable

3

CARRIER, CAMSHAFT 1

3D8-12194-00-00

$184.99

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

BOLT, WASHER BASED(1AA)

90105-06362-00

$2.02

6

CIRCLIP(26H)

99009-52500-00

$12.49

7

SPROCKET, CAM CHAIN

3D8-12176-00-00

$40.99

8

BOLT, FLANGE

90105-07004-00

$5.60

9

CHAIN

94591-57132-00

$37.99

10

GUIDE, STOPPER 1

3D8-12231-00-00

$20.99

11

GUIDE, STOPPER 2

3D8-12241-01-00

$81.99

12

BOLT, WITH WASHER

90119-06173-00

Unavailable

13

TENSIONER ASSY, CAM CHAIN

3D8-12210-10-00

Unavailable

14

GASKET, TENSIONER CASE

3D8-12213-00-00

$7.99

15

SPACER

27D-11445-00-00

$24.99

16

GASKET

3D8-12214-00-00

Unavailable

17

SPACER

27D-11485-00-00

Unavailable

18

GASKET

3D8-11195-00-00

Unavailable

19

PIN, DOWEL (341)

93603-09106-00

Unavailable

20

BOLT

91312-06045-00

Unavailable

21

BOLT(J17)

91312-06035-00

Unavailable
