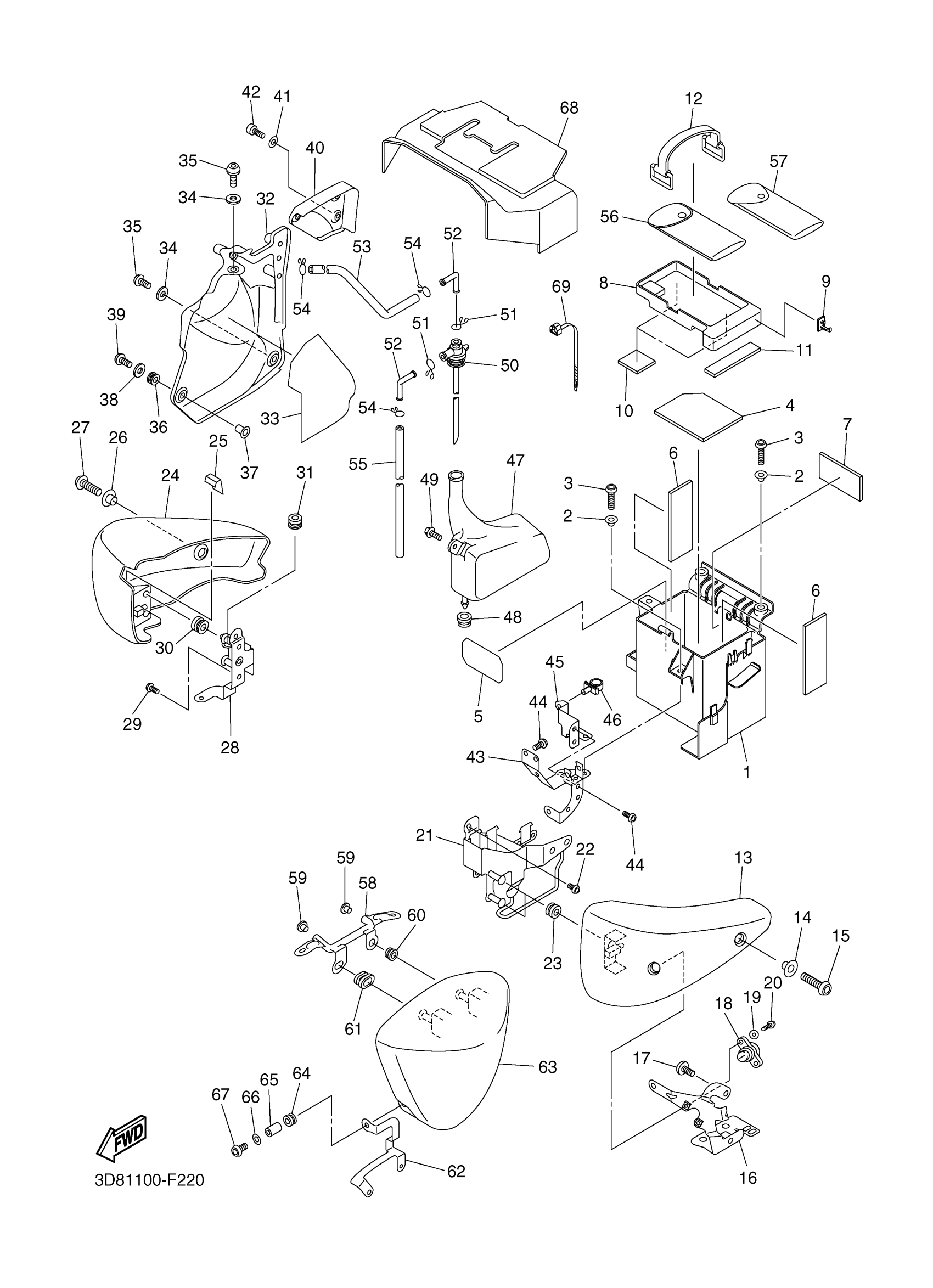

Yamaha XVS13CTWC (V STAR 1300 TOURER CA) 5S62 2007 SIDE COVER Diagram
#
2
COLLAR
90387-06267-00
Unavailable
5
PROTECTOR
5PX-21652-00-00
Unavailable
7
DAMPER, SIDE COVER
26H-21746-00-00
Unavailable
8
BOX, TOOL
3D8-28173-00-00
Unavailable
13
COVER, SIDE 1
3D8-21711-00-P0
Unavailable
13
COVER, SIDE 1
3D8-21711-00-P2
Unavailable
13
COVER, SIDE 1
3D8-21711-00-P3
Unavailable
14
COLLAR
90387-06173-00
Unavailable
15
SCREW
90149-06023-00
Unavailable
16
BRACKET 1
3D8-2175T-00-00
Unavailable
17
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
18
ROTOR SET
5PX-W2470-00-00
Unavailable
19
WASHER, PLATE
90201-06034-00
Unavailable
20
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
21
BRACKET 3
3D8-2172M-00-00
Unavailable
22
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
23
GROMMET(3VD)
90480-12550-00
Unavailable
24
COVER, SIDE 2
3D8-21721-00-P0
Unavailable
24
COVER, SIDE 2
3D8-21721-00-P2
Unavailable
24
COVER, SIDE 2
3D8-21721-00-P3
Unavailable
25
PROTECTOR
3MA-27491-00-00
Unavailable
26
COLLAR
90387-06173-00
Unavailable
27
BOLT
90111-06038-00
Unavailable
28
BRACKET 4
3D8-2172N-00-00
Unavailable
29
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
30
GROMMET(3VD)
90480-12550-00
Unavailable
31
GROMMET(3AK)
90480-18495-00
Unavailable
32
COVER, SIDE 4
3D8-21741-00-00
Unavailable
33
DAMPER
3D8-21746-00-00
Unavailable
34
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
35
BOLT
90111-06038-00
Unavailable
36
GROMMET
90480-12007-00
Unavailable
37
SPACER (4F2)
90560-06201-00
Unavailable
38
WASHER, PLATE
90201-06M01-00
Unavailable
39
BOLT
90111-06043-00
Unavailable
40
PLATE
3D8-2176E-00-00
Unavailable
41
WASHER, PLAIN (646)
92990-05600-00
Unavailable
42
BOLT, BUTTON HEAD
92014-05012-00
Unavailable
43
BRACKET 1
3D8-2172K-00-00
Unavailable
44
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
45
BRACKET 2
3D8-2172L-00-00
Unavailable
46
CLAMP
90464-12001-00
Unavailable
47
TANK, RECOVERY
3D8-21871-00-00
Unavailable
48
GROMMET(4FU)
90480-13567-00
Unavailable
49
BOLT, WITH WASHER
90119-06137-00
Unavailable
50
CAP
3D8-21875-00-00
Unavailable
51
CLIP(72X)
90467-11M08-00
Unavailable
52
ELBOW
26H-21828-00-00
Unavailable
53
PIPE, BREATHER
3D8-21826-00-00
Unavailable
54
CLIP 101235600
90467-08003-00
Unavailable
55
HOSE (L420)
90445-092K1-00
Unavailable
56
TOOL KIT
3D8-28100-00-00
Unavailable
57
TOOL KIT 2
3D8-28110-01-00
Unavailable
58
BRACKET
3D8-14849-00-00
Unavailable
59
PLUG
90338-10012-00
Unavailable
60
GROMMET(4FU)
90480-13567-00
Unavailable
61
GROMMET(4DN)
90480-01558-00
Unavailable
62
BRACKET
3D8-15199-00-00
Unavailable
63
COVER, SIDE 3
3D8-21731-00-00
Unavailable
64
GROMMET (462)
90480-13018-00
Unavailable
65
COLLAR
90387-06043-00
Unavailable
66
WASHER, PLATE
90201-06088-00
Unavailable
67
BOLT
90111-06038-00
Unavailable
68
COVER
3D8-24796-00-00
Unavailable
69
CLAMP(4FM)
90464-15195-00
Unavailable
