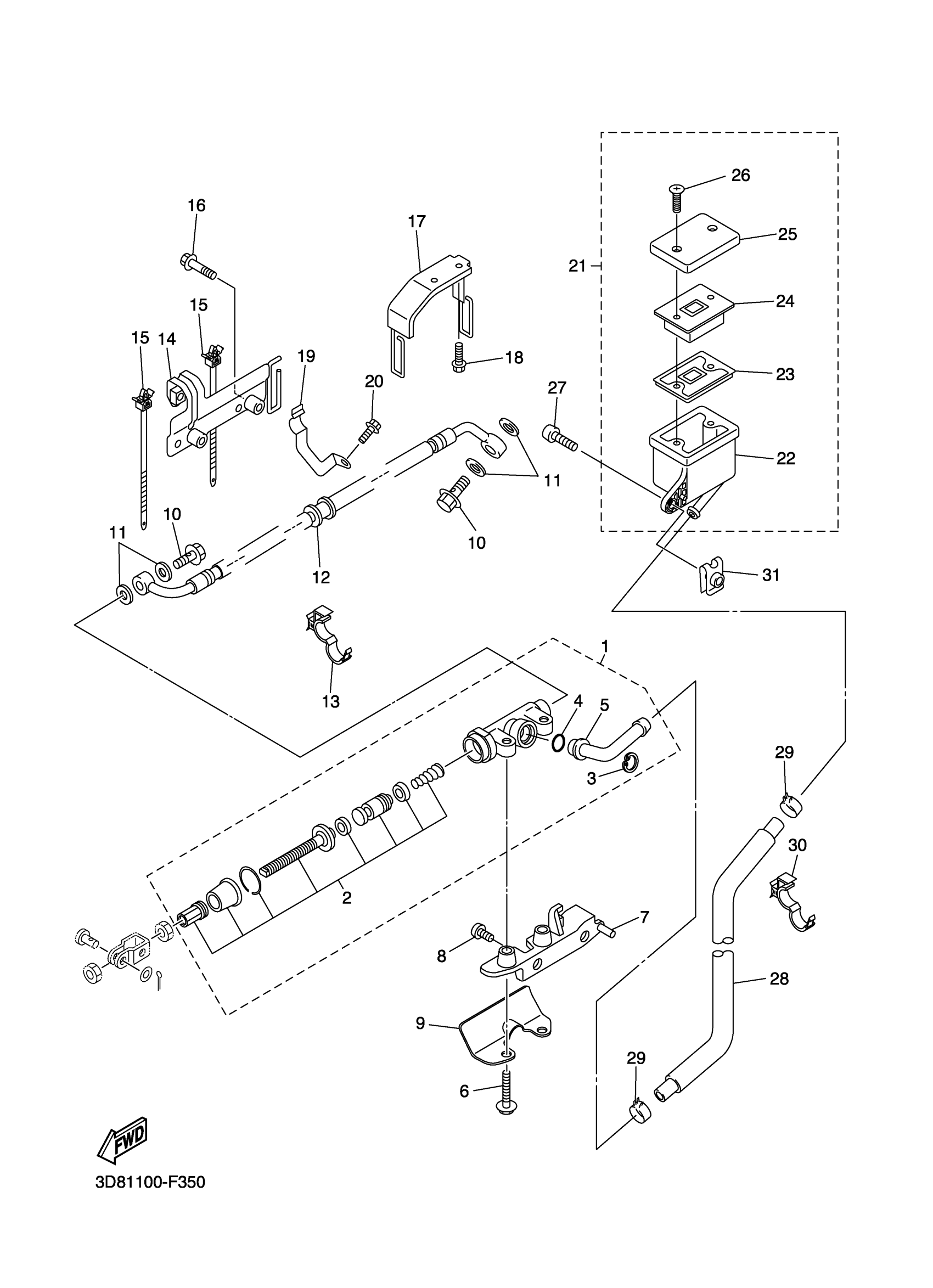

Yamaha XVS13CTWC (V STAR 1300 TOURER CA) 5S62 2007 REAR MASTER CYLINDER Diagram

RR. MASTER CYLINDER ASSY.

3D8-2583V-00-00

$164.99

CYLINDER KIT, MASTER

5EL-W0042-50-00

$83.99

CIRCLIP

2VN-25866-00-00

$6.99

O-RING (22U)

93210-15566-00

$7.49

JOINT

2VN-2582A-50-00

$20.99

BOLT, FLANGE(3EF)

95024-08035-00

$8.49

BRACKET, MASTER CYLINDER

5EL-25867-01-00

$81.99

BOLT, BUTTON

92014-08016-00

$8.49

PROTECTOR

5EL-27491-00-00

$17.49

BOLT, UNION

90401-10020-00

$9.49

GASKET

90430-10005-00

$9.49

HOSE, BRAKE 4

3D8-2581J-00-00

$119.99

CLAMP(4HM)

90464-15192-00

$8.49

HOLDER, FUEL PIPE

3D8-21374-00-00

Unavailable

CLAMP(2TV)

90464-10112-00

$8.49

BOLT, FLANGE

95022-06020-00

Unavailable

HOLDER, BRAKE HOSE

1D7-2587A-00-00

Unavailable

BOLT, FLANGE

95022-06016-00

Unavailable

HOLDER, BRAKE HOSE 5

3D8-2588F-00-00

Unavailable

BOLT, FLANGE

95022-06012-00

Unavailable

RESERVE TANK ASSY.

5YU-25804-00-00

Unavailable

TANK, RESERVOIR

5YU-25894-00-00

Unavailable

DIAPHRAGM, RESERVOIR

55U-25854-00-00

Unavailable

PLATE, DIAPHRAGM

3GM-2585B-20-00

Unavailable

CAP, RESERVOIR

5YU-25852-00-00

Unavailable

SCREW, FLAT HEAD

98706-04040-00

Unavailable

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

HOSE, RESERVOIR

3D8-25895-00-00

Unavailable

CLIP (7K7)

90467-11044-00

Unavailable

CLAMP(4HM)

90464-15192-00

$8.49

NUT, SPRING(4ES)

90183-06069-00

Unavailable
