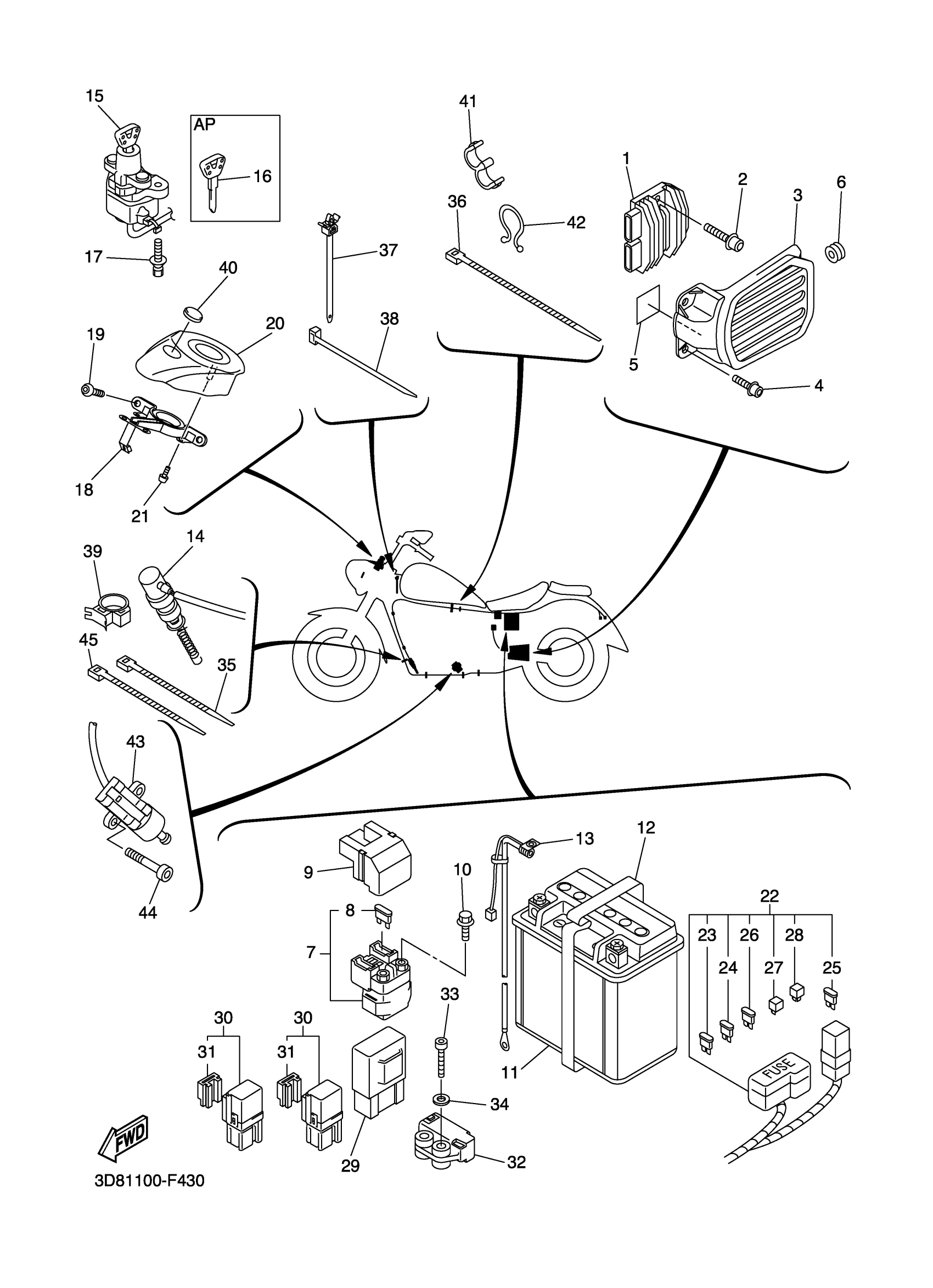

Yamaha XVS13CTWC (V STAR 1300 TOURER CA) 5S62 2007 ELECTRICAL 2 Diagram
#
2
BOLT, HEXAGON SOCKET HEAD
90110-06263-00
Unavailable
3
CASE, REGULATOR
3D8-21247-02-00
Unavailable
11
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
13
WIRE, MINUS LEAD
3D8-82116-00-00
Unavailable
14
STOP SWITCH ASSY
3D8-82530-01-00
Unavailable
16
BLANK KEY
4BH-82511-09-00
Unavailable
17
BOLT
90109-08196-00
Unavailable
18
BRACKET 1
3D8-2334G-00-00
Unavailable
19
BOLT, BUTTON HEAD
92012-06014-00
Unavailable
20
COVER, MAIN SWITCH
3D8-82568-00-00
Unavailable
21
SCREW, TRUSS TAP.
97707-40016-00
Unavailable
22
WIRE HARNESS ASSY
3D8-82590-00-00
Unavailable
23
. FUSE (10A)
67F-82151-40-00
Unavailable
24
FUSE (15A)
67F-82151-50-00
Unavailable
25
FUSE (50A)
5JW-82151-10-00
Unavailable
26
FUSE
5JJ-82151-20-00
Unavailable
27
DIODE ASSY
3WP-81980-00-00
Unavailable
28
DIODE ASSY
3XV-81980-00-00
Unavailable
29
RELAY ASSY
5KS-81950-32-00
Unavailable
30
RELAY ASSY (5EA-02)
5EA-81950-20-00
Unavailable
31
HOLDER,RELAY
5EA-81952-00-00
Unavailable
32
SENSOR, LEAN ANGLE
5PS-82576-02-00
Unavailable
33
BOLT
91312-04025-00
Unavailable
34
WASHER, PLATE
90201-04027-00
Unavailable
35
BAND
1UA-82591-00-00
Unavailable
36
CLAMP(MF1)
90464-15152-00
Unavailable
37
CLAMP(2TV)
90464-10112-00
Unavailable
38
CLAMP
5Y9-12491-00-00
Unavailable
39
CLAMP(4GY)
90464-10190-00
Unavailable
40
EMBLEM
3D8-2341B-00-00
Unavailable
41
CLAMP
90464-10M57-00
Unavailable
42
CLAMP (3Y2)
90464-16039-00
Unavailable
43
SWITCH, SIDE STAND
3D8-82566-B0-00
Unavailable
44
BOLT
91312-05025-00
Unavailable
45
BAND
3MA-82591-00-00
Unavailable
