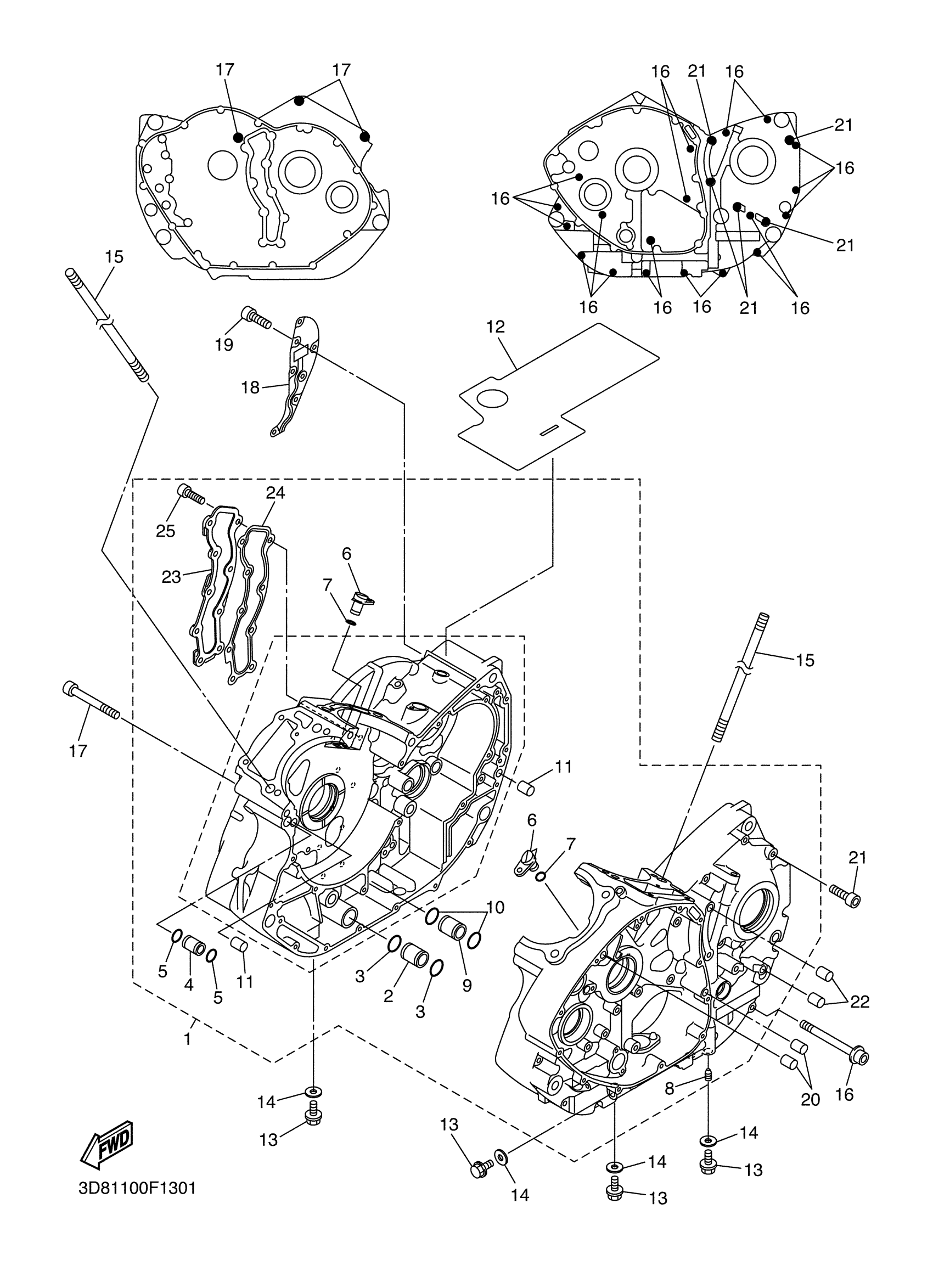

Yamaha XVS13CTWC (V STAR 1300 TOURER CA) 5S62 2007 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3D8-15100-01-00

Unavailable

2

NOZZLE ASSY., 2

3D8-15154-00-00

$20.99

3

O-RING (1J7)

93210-18319-00

$9.49

4

NOZZLE 1

1D7-15138-00-00

$5.49

5

O-RING

93210-10001-00

$2.18

6

NOZZLE 2

3D8-15148-00-00

Unavailable

7

O-RING (26H)

93210-06632-00

$8.49

8

NOZZLE 1

2H7-15138-00-00

Unavailable

9

NOZZLE 3

3D8-15155-00-00

$23.99

10

O-RING

93210-22298-00

$7.49

11

PIN, DOWEL(2VG)

99530-10116-00

$4.25

12

DAMPER 3

3D8-15335-00-00

Unavailable

13

BOLT, FLANGE

95024-10016-00

$3.50

14

GASKET (5R6)

90430-10171-00

$3.18

15

BOLT, STUD

90116-12011-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

90110-06297-00

Unavailable

17

BOLT

91314-10110-00

Unavailable

18

SEPERATOR, OIL

3D8-15368-00-00

Unavailable

19

BOLT,SOCKET

91317-06016-00

Unavailable

20

PIN, DOWEL

99530-08012-00

Unavailable

21

BOLT, SOCKET

91317-08035-00

Unavailable

22

PIN, DOWEL

99590-10114-00

Unavailable

23

COVER, CRANKCASE 3

3D8-15431-00-00

Unavailable

24

GASKET, CRANKCASE COVER 3

3D8-15462-00-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
