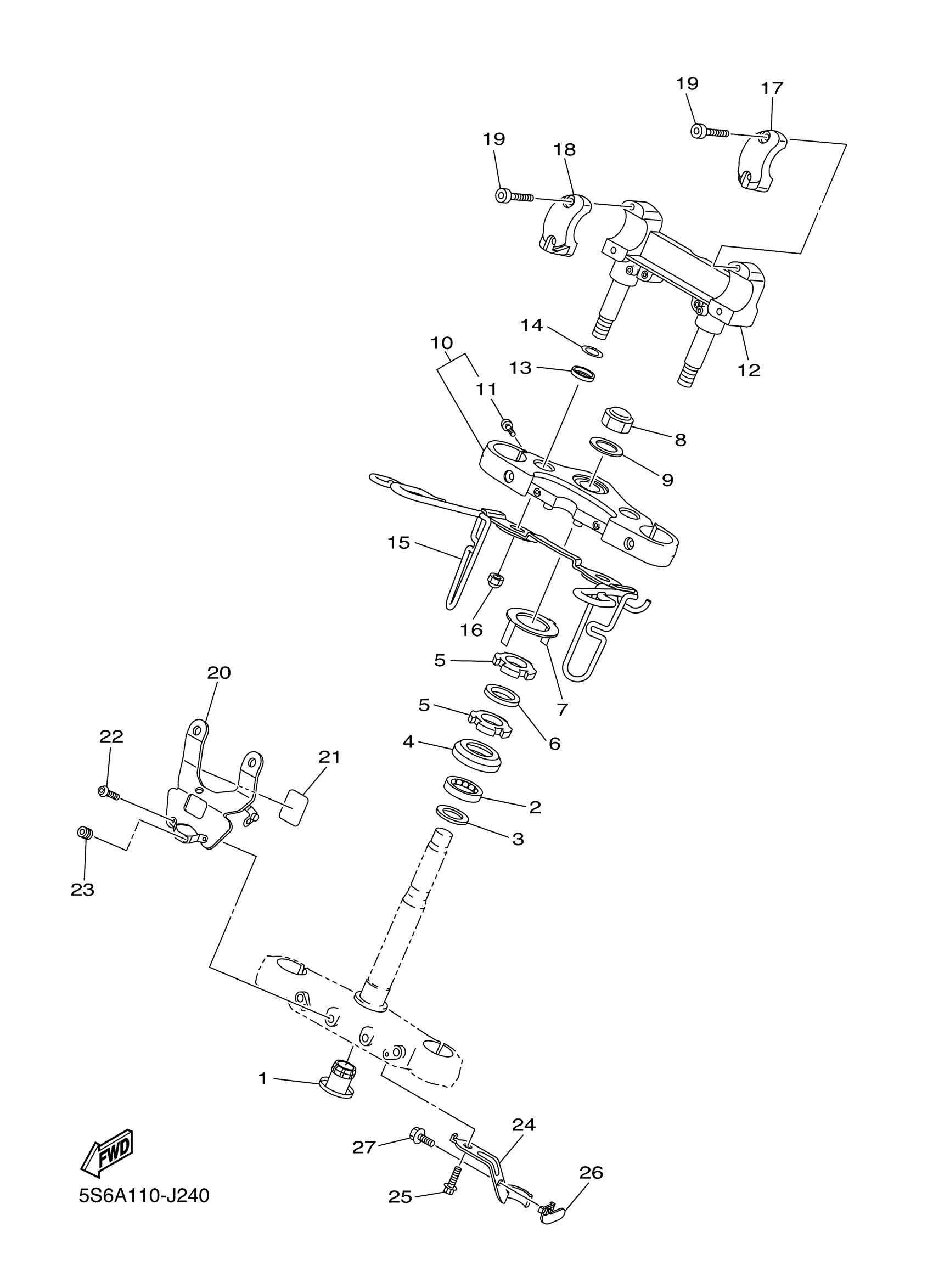

Yamaha XVS13CTHL (V STAR TOURER) BH94 2017 STEERING Diagram

#

Description
Price

1

COVER, LOWER 1

4KM-23123-01-00

$14.49

2

BEARING(3FV)

93399-99931-00

$57.99

3

WASHER, PLATE(3FV)

90202-24190-00

$9.49

4

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

5

NUT

90179-25004-00

$24.99

6

WASHER, PLATE (26H)

90202-26142-00

$9.49

7

WASHER, SPECIAL

26H-23418-01-00

$14.49

8

NUT, CROWN

90176-22002-00

$34.99

9

WASHER, PLATE

90201-22018-00

$5.60

10

CROWN, HANDLE

3D8-Y2343-01-00

Unavailable

11

BOLT,SOCKET

91314-08030-00

$2.34

12

HOLDER, HANDLE LOWER

3D8-23442-00-00

Unavailable

13

DAMPER

3DM-23445-00-00

$7.99

14

WASHER PLATE 248181370000

90201-14220-00

$8.49

15

GUIDE, CABLE

3D8-23389-20-00

Unavailable

16

NUT, CROWN(4TR)

90176-12052-00

Unavailable

17

HOLDER, HANDLE UPPER

3D8-23441-00-00

Unavailable

18

HOLDER, HANDLE UPPER 1

3D8-2344A-00-00

Unavailable

19

BOLT, SOCKET

91317-08025-00

Unavailable

20

STAY, HEADLIGHT

3D8-23174-00-00

Unavailable

21

SEAL

3D8-23844-00-00

Unavailable

22

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

23

GROMMET(4FU)

90480-13567-00

Unavailable

24

HOLDER, BRAKE HOSE

3D8-25886-00-00

Unavailable

25

BOLT, FLANGE

90105-06136-00

Unavailable

26

HOLDER, BRAKE HOSE

3D8-25887-00-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable
