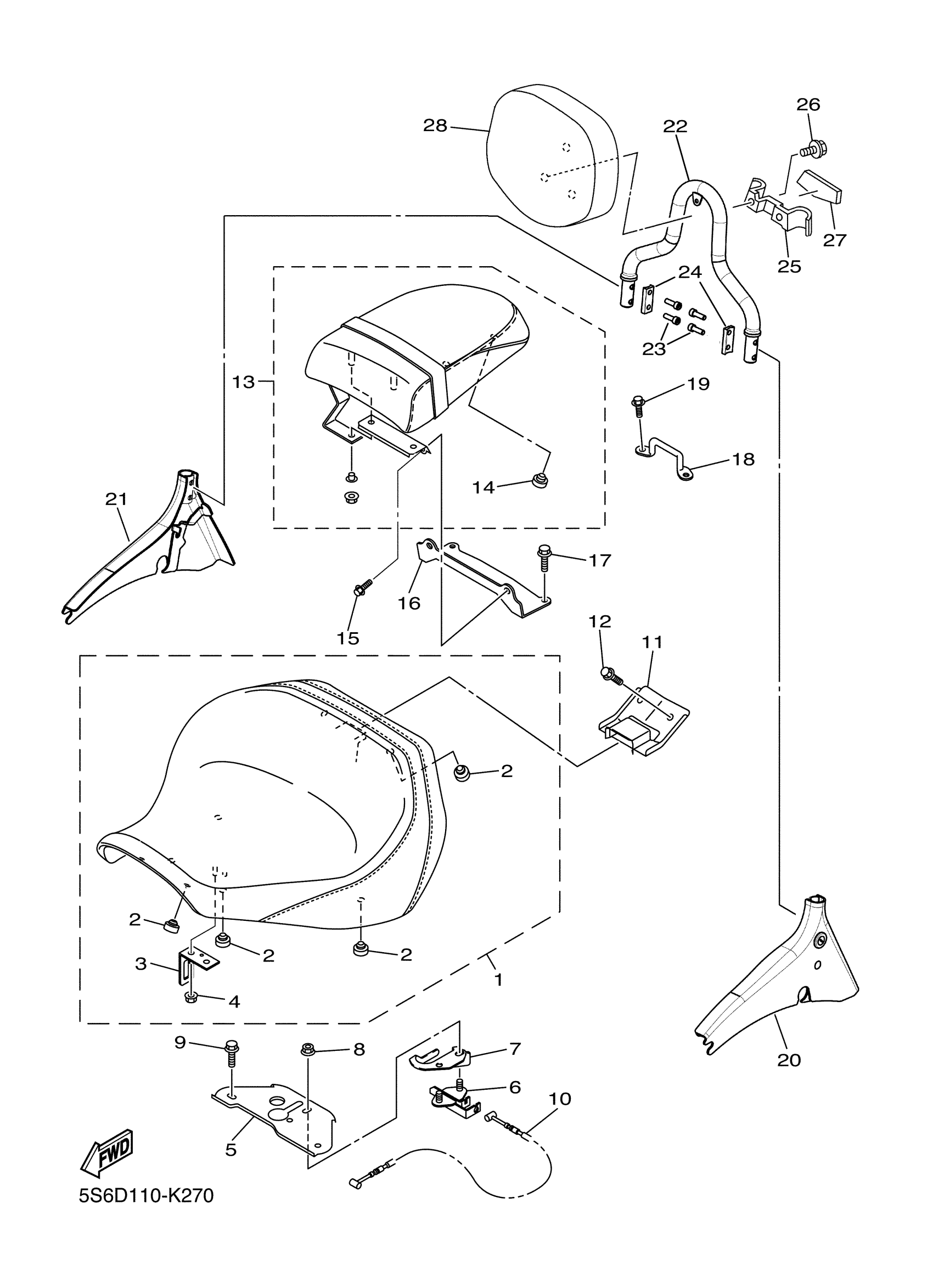

Yamaha XVS13CTHL (V STAR TOURER) BH94 2017 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
3D8-24710-11-00
Unavailable
5
BRACKET, SEAT 1
3D8-21341-01-00
Unavailable
9
BOLT, FLANGE
95817-06014-00
Unavailable
11
BRACKET
3D8-2475N-00-00
Unavailable
13
TANDEM SEAT ASSY
3D8-24750-02-00
Unavailable
16
BRACKET, SEAT LEVER 1
1D7-2475H-00-00
Unavailable
18
BRACKET 6
3D8-2475R-00-00
Unavailable
20
SIDE ARM REST LEFT
5S7-F840R-V0-00
Unavailable
21
ARM REST ASSY 2
5S7-F840T-V0-00
Unavailable
22
SHORT BACKREST UPRIGHT
5S6-F16C0-V1-00
Unavailable
23
BOLT, HEX. SOCKET HEAD
90111-0838-00
Unavailable
24
PLATE
2C5-F8417-00-00
Unavailable
25
STAY 2
5GA-2164G-00-00
Unavailable
26
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
27
EMBLEM
5GA-24786-01-00
Unavailable
28
BACK REST ASSY
5GA-2840F-21-00
Unavailable
