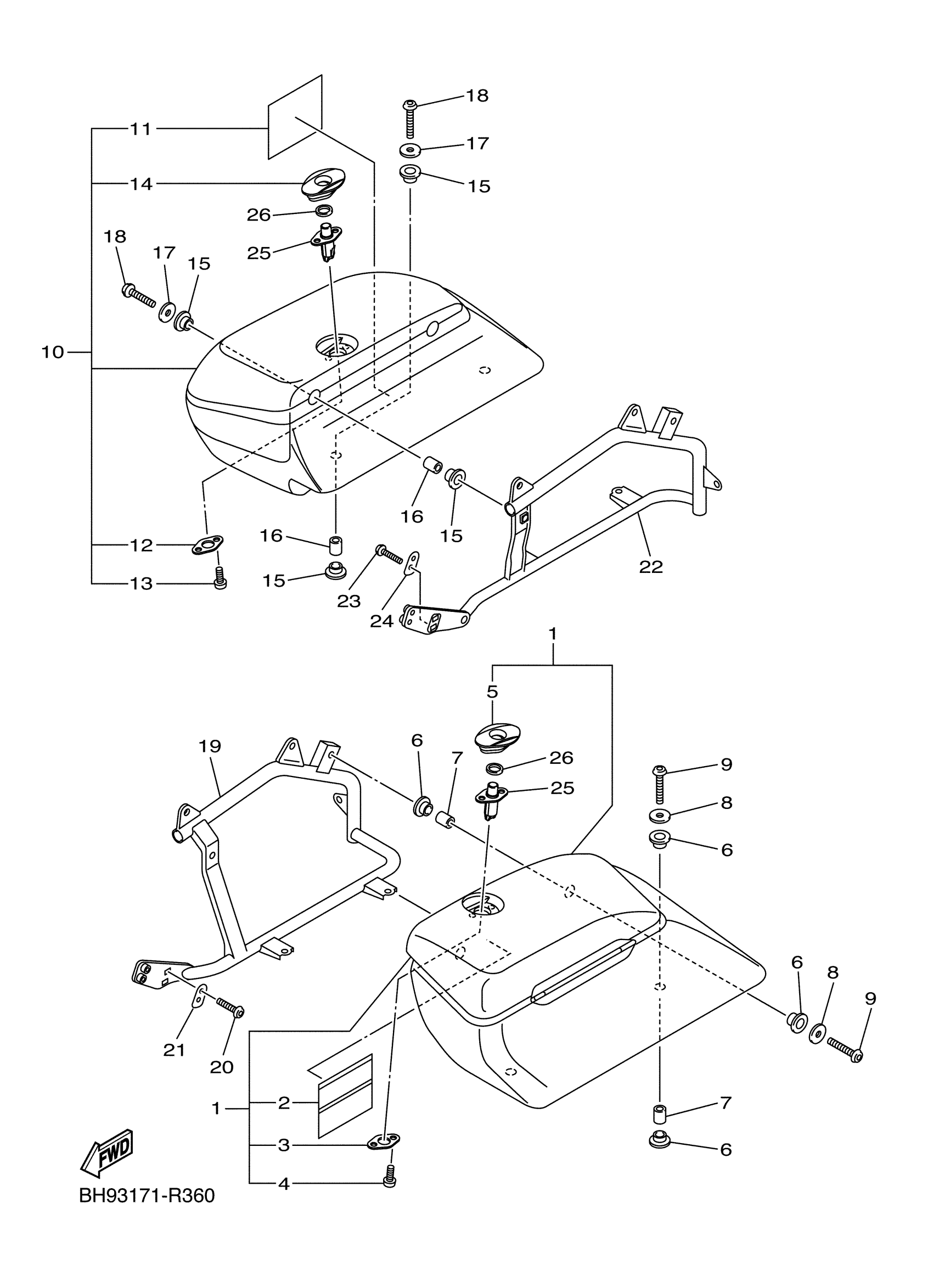

Yamaha XVS13CTHL (V STAR TOURER) BH94 2017 SADDLEBAG Diagram

#

Description
Price

1

SADDLEBAG COMP. 1 (LEFT)

5S6-F8430-01-00

Unavailable

2

. LABEL, CAUTION

5S6-F8446-00-00

Unavailable

3

. PLATE, LOCK 1

2C5-F848T-00-00

Unavailable

4

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$8.49

5

. COVER LOCK ASSY 2

5S6-F8493-00-00

Unavailable

6

GROMMET

90480-20004-00

$3.55

7

COLLAR

90387-08077-00

$8.49

8

WASHER (23T)

90201-065G8-00

$8.49

9

BOLT, BUTTON HEAD

92012-06025-00

$3.13

10

SADDLEBAG COMP. 2 (RIGHT)

5S6-F8440-01-00

Unavailable

11

. LABEL, CAUTION

5S6-F8446-00-00

Unavailable

12

. PLATE, LOCK 1

2C5-F848T-00-00

Unavailable

13

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$8.49

14

. COVER LOCK ASSY 2

5S6-F849K-00-00

Unavailable

15

GROMMET

90480-20004-00

$3.55

16

COLLAR

90387-08077-00

$8.49

17

WASHER (23T)

90201-065G8-00

$8.49

18

BOLT, BUTTON HEAD

92012-06025-00

$3.13

19

FRAME, SADDLEBAG 1

5S6-28473-01-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-08046-00

Unavailable

21

PLATE

5S6-28417-00-00

Unavailable

22

FRAME, SADDLEBAG 2

5S6-28474-01-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-08046-00

Unavailable

24

PLATE

5S6-28417-00-00

Unavailable

25

LOCK ASSY.1

5S6-28408-00-00

Unavailable

26

SEAL 1

5S6-28428-00-00

Unavailable
