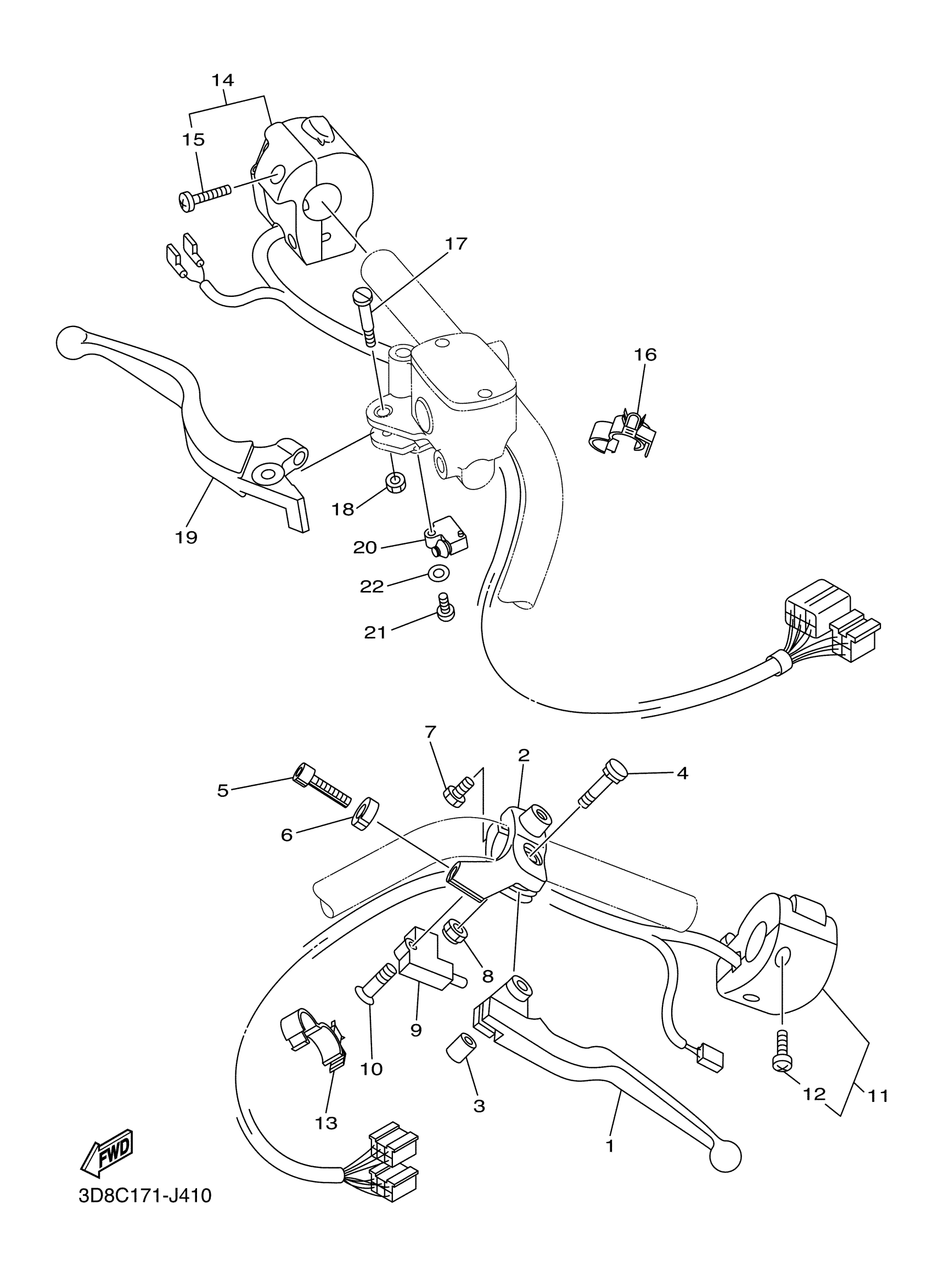

Yamaha XVS13CTHL (V STAR TOURER) BH94 2017 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 1

5BN-83912-00-00

$51.99

2

HOLDER, LEVER 1

5BN-82911-20-00

$56.99

3

COLLAR, LEVER 1

4TR-83913-00-00

$7.99

4

BOLT, LEVER

4TR-83945-10-00

$14.49

5

BOLT

90123-08002-00

$10.49

6

NUT

90179-08030-00

$5.49

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

SWITCH

3YX-82917-01-00

$43.99

10

SCREW, FLAT HEAD(4BP)

98707-03020-00

$8.49

11

SWITCH, HANDLE 3

3D8-83973-10-00

Unavailable

12

SCREW, PAN HEAD(N15)

98504-05025-00

Unavailable

13

CLAMP(4HM)

90464-15192-00

$8.49

14

SWITCH, HANDLE 4

3D8-83972-10-00

Unavailable

15

SCREW, PAN HEAD(N15)

98504-05025-00

Unavailable

16

CLAMP(4HM)

90464-15192-00

$8.49

17

BOLT, LEVER

5VS-2589F-00-00

Unavailable

18

NUT, SELF-LOCKING

95617-06100-00

$8.49

19

LEVER 2

3D8-83922-00-00

Unavailable

20

SWITCH

36Y-82917-00-00

Unavailable

21

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

22

WASHER, PLAIN (646)

92990-04600-00

Unavailable
