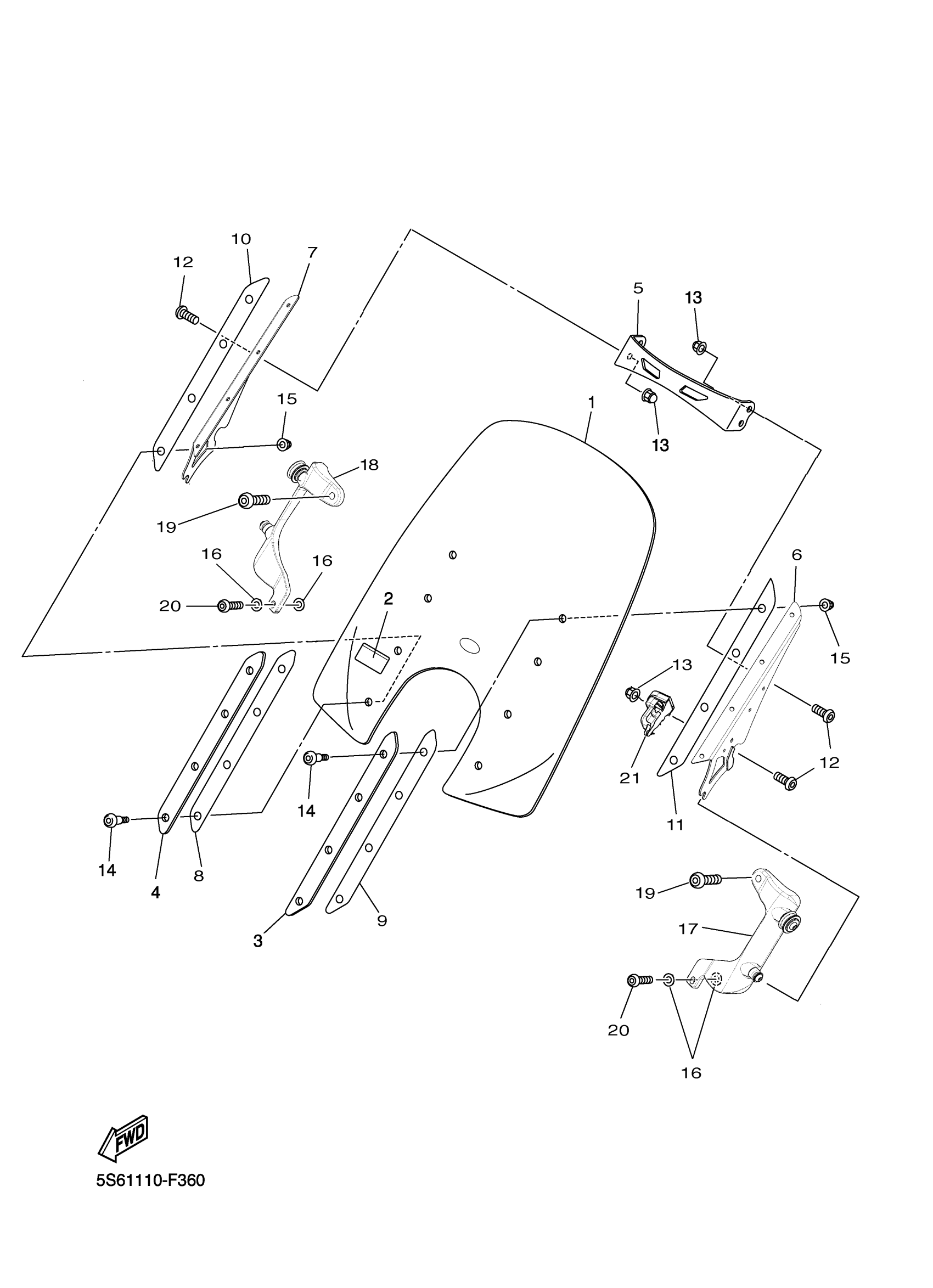

Yamaha XVS13CTHL (V STAR TOURER) BH94 2017 COWLING Diagram

#

Description
Price

1

SCREEN

3D8-F837U-V0-00

Unavailable

2

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

$7.99

3

PLATE 1

5S7-F8396-V0-00

Unavailable

4

PLATE 2

5S7-F8397-V0-00

Unavailable

5

PLATE, FRONT

5S7-F8361-V0-00

Unavailable

6

BRACKET 1

5S7-F836A-T1-00

Unavailable

7

BRACKET 2

5S7-F836E-T1-00

Unavailable

8

DAMPER 6

5S7-F837K-V0-00

Unavailable

9

DAMPER 5

5S7-F837J-V0-00

Unavailable

10

BOLT, HEX. SOCKET BUTTON

90111-06820-00

Unavailable

11

DAMPER 2

5S7-F8416-V0-00

Unavailable

12

BOLT, HEX. SOCKET BUTTON

90111-06820-00

Unavailable

13

NUT (J17)

95380-06800-00

$8.49

14

BOLT, BUTTON HEAD

4NL-F8355-00-00

Unavailable

15

NUT (J17)

95380-06800-00

$8.49

16

WASHER

90201-09802-00

Unavailable

17

GUIDE STAY SUB-COMP 1

3D8-F830E-V0-00

Unavailable

18

GUIDE STAY SUB-COMP 2

3D8-F830F-V0-00

Unavailable

19

BOLT, HEX. SOCKET BUTTON

90111-08839-00

Unavailable

20

BOLT, HEX. SOCKET BUTTON

90111-10805-00

Unavailable

21

LOCK ASSY,2

2C5-28409-01-00

Unavailable
