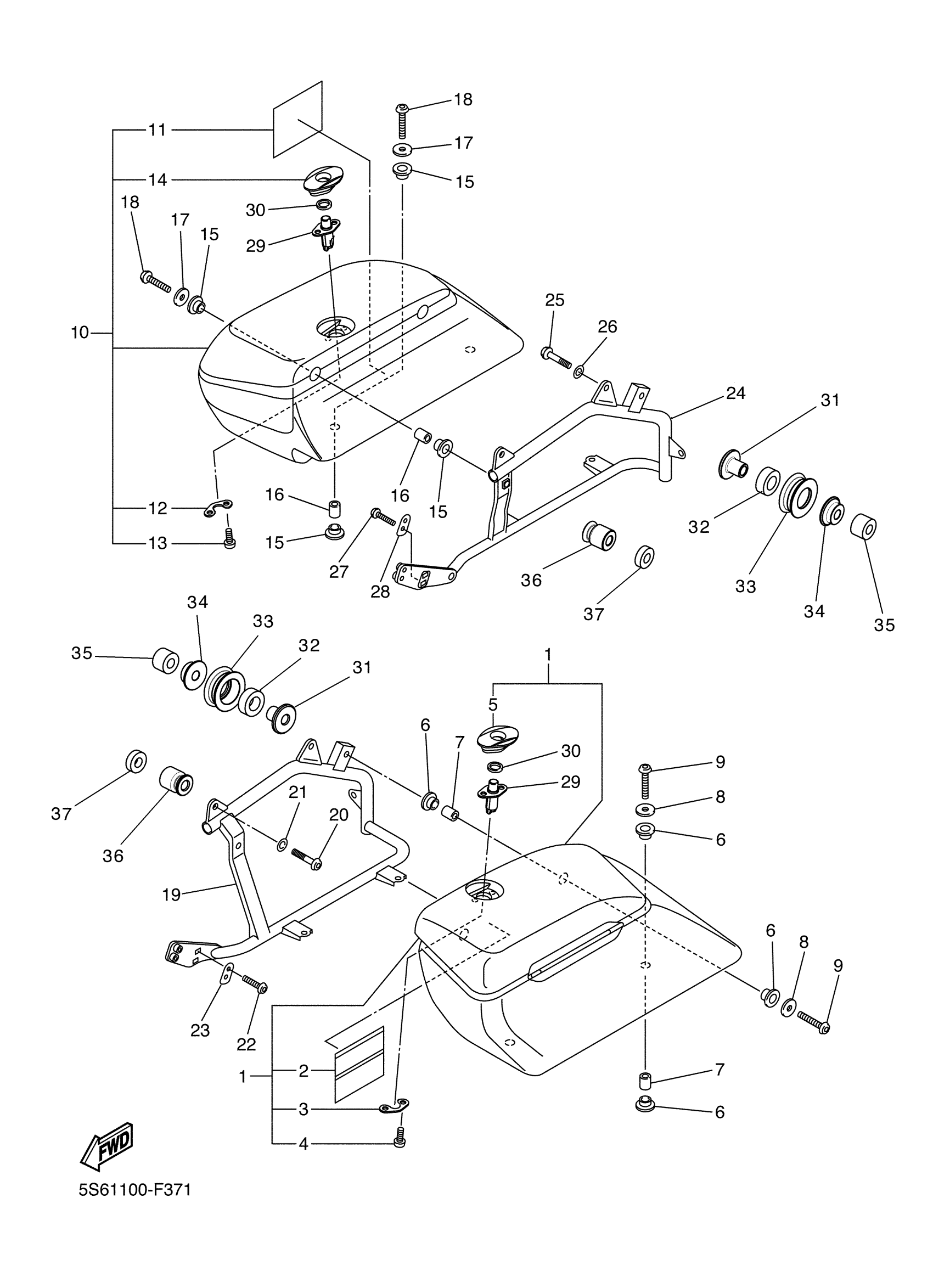

Yamaha XVS13CTGR (V STAR 1300 TOURER) BH91 2016 SADDLEBAGS Diagram
#
Description
Price
1
SADDLEBAG COMP. 1 (LEFT)
5S6-F8430-01-00
Unavailable
2
. LABEL, CAUTION
5S6-F8446-00-00
Unavailable
3
. PLATE, LOCK 1
2C5-F848T-00-00
Unavailable
5
. COVER LOCK ASSY 2
5S6-F8493-00-00
Unavailable
10
SADDLEBAG COMP. 2 (RIGHT)
5S6-F8440-01-00
Unavailable
11
. LABEL, CAUTION
5S6-F8446-00-00
Unavailable
12
. PLATE, LOCK 1
2C5-F848T-00-00
Unavailable
14
. COVER LOCK ASSY 2
5S6-F849K-00-00
Unavailable
19
FRAME, SADDLEBAG 1
5S6-28473-01-00
Unavailable
20
BOLT, HEX. SOCKET HEAD
91380-08075-00
Unavailable
21
WASHER
90201-09802-00
Unavailable
22
FRAME, SADDLEBAG 2
5S6-28474-01-00
Unavailable
23
BOLT,HEX. SOCKET BUTTON
90111-08046-00
Unavailable
24
PLATE
5S6-28417-00-00
Unavailable
25
BOLT, HEX. SOCKET HEAD
91380-08075-00
Unavailable
26
WASHER
90201-09802-00
Unavailable
27
BOLT,HEX. SOCKET BUTTON
90111-08046-00
Unavailable
28
PLATE
5S7-28417-00-00
Unavailable
29
LOCK ASSY.1
5S6-28408-00-00
Unavailable
30
SEAL 1
5S6-28428-00-00
Unavailable
31
SPACER
2C5-F8329-00-00
Unavailable
32
DAMPER, LOCATING 1
2C5-F836T-00-00
Unavailable
33
STOPPER, OPEN
2C5-F845L-00-00
Unavailable
34
DAMPER 3
2C5--F8425-00-00
Unavailable
35
SPACER
5S7-F83-U0-00
Unavailable
36
PIN, STOPPER
2C5-F842L-00-00
Unavailable
37
SPACER
5S7-F8329-V0-00
Unavailable
