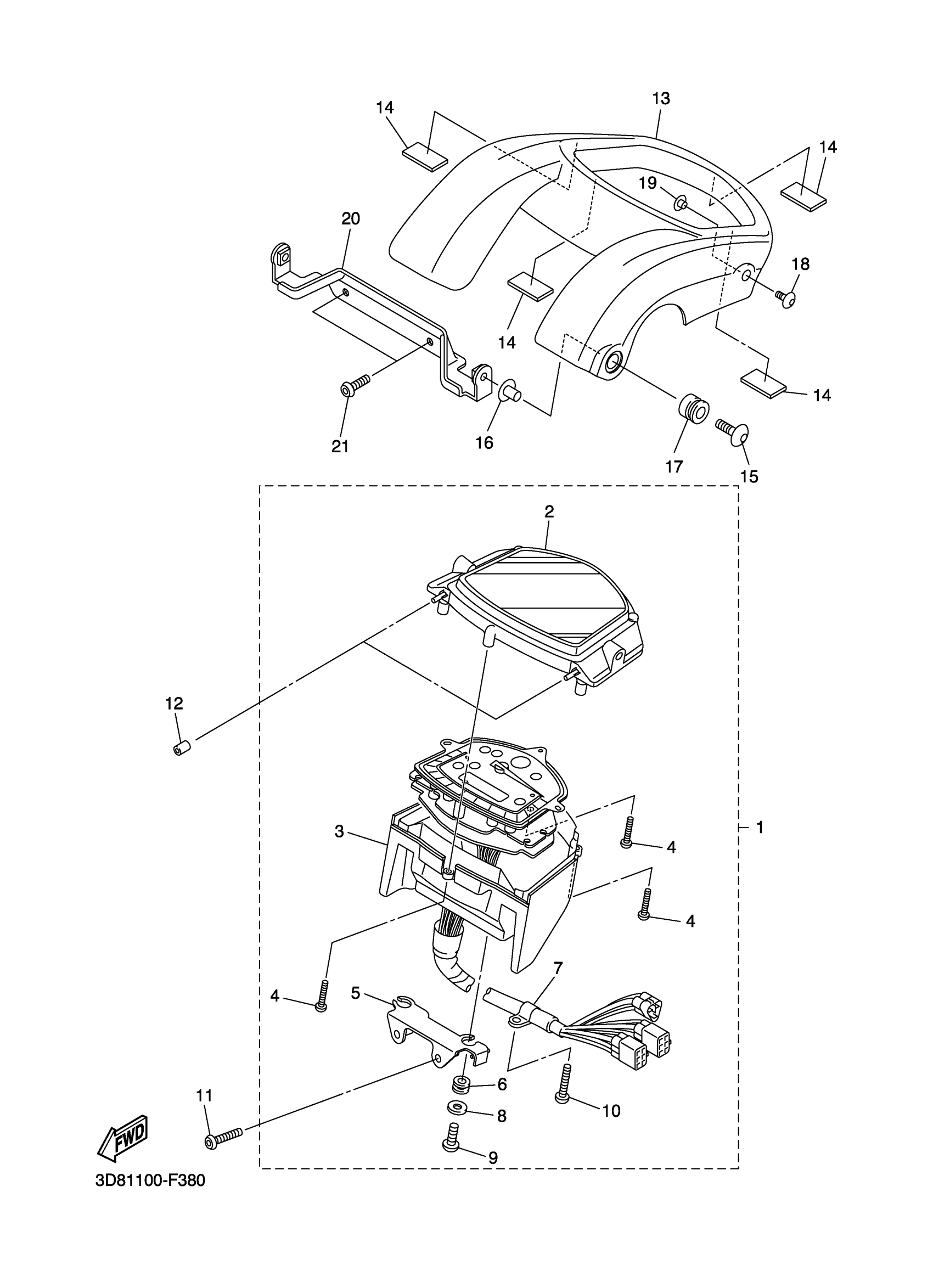

Yamaha XVS13CTGR (V STAR 1300 TOURER) BH91 2016 METER Diagram
#
Description
Price
1
METER ASSY
3D8-83500-02-00
Unavailable
2
CASE, METER UPPER
3D8-8353E-00-00
Unavailable
3
CASE, SPEEDOMETER LOWER
3D8-83572-00-00
Unavailable
5
BRACKET, METER
3D8-83519-00-00
Unavailable
7
CLAMP
4HC-83595-00-00
Unavailable
10
SCREW, TRUSS TAP.
97707-40014-00
Unavailable
13
COVER, METER
3D8-83559-01-00
Unavailable
16
COLLAR
90387-06162-00
Unavailable
17
GROMMET
90480-13020-00
Unavailable
18
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
19
COLLAR
90387-05035-00
Unavailable
20
BRACKET
3D8-8350E-00-00
Unavailable
21
BOLT
90111-06062-00
Unavailable
