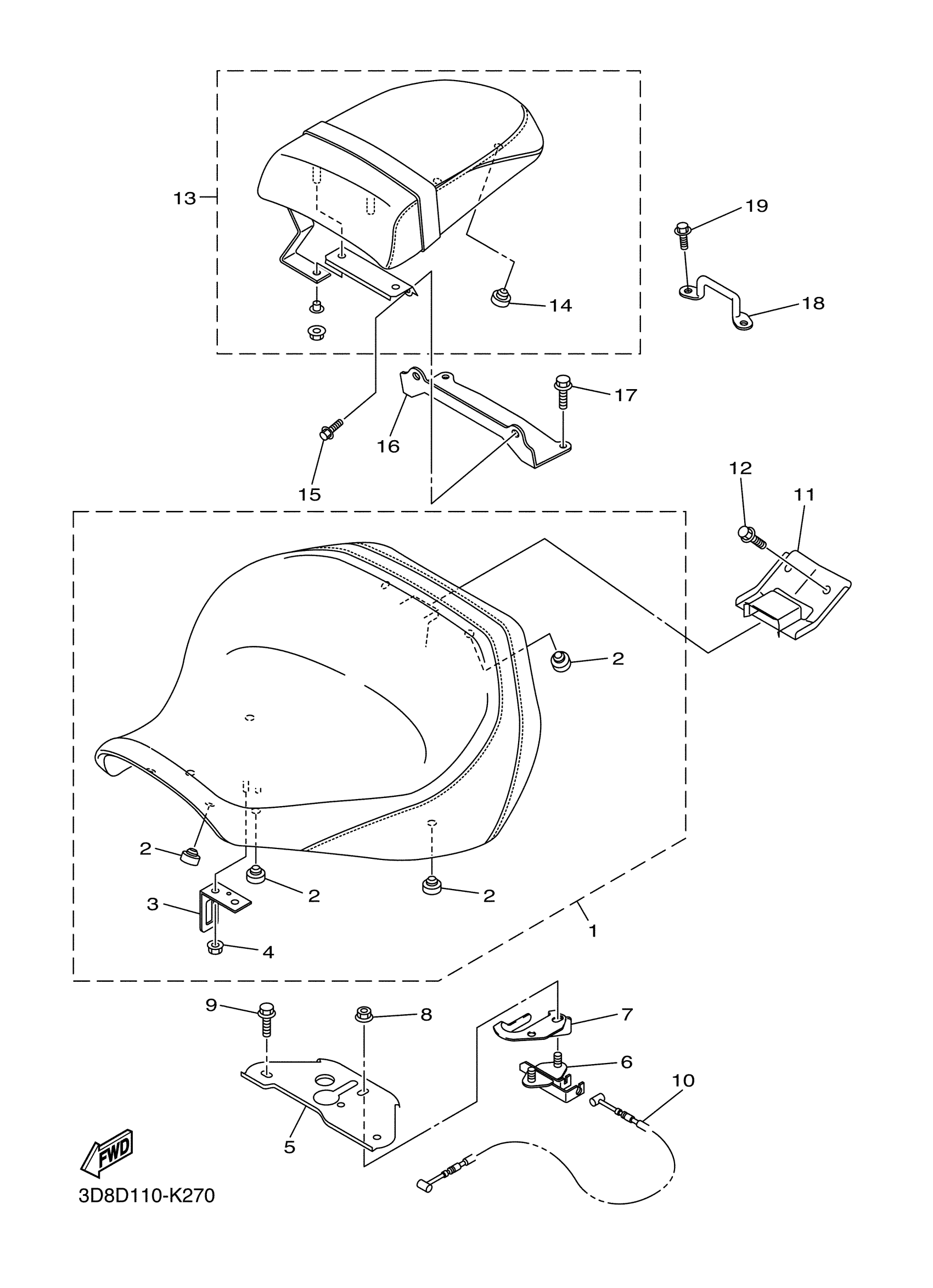

Yamaha XVS13CTFGC (V STAR 1300 DELUXE) 2CAE 2016 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
3D8-24710-11-00
Unavailable
5
BRACKET, SEAT 1
3D8-21341-01-00
Unavailable
9
BOLT, FLANGE
95817-06014-00
Unavailable
11
BRACKET
3D8-2475N-00-00
Unavailable
13
TANDEM SEAT ASSY
3D8-24750-02-00
Unavailable
16
BRACKET, SEAT LEVER 1
1D7-2475H-00-00
Unavailable
18
BRACKET 6
3D8-2475R-00-00
Unavailable
