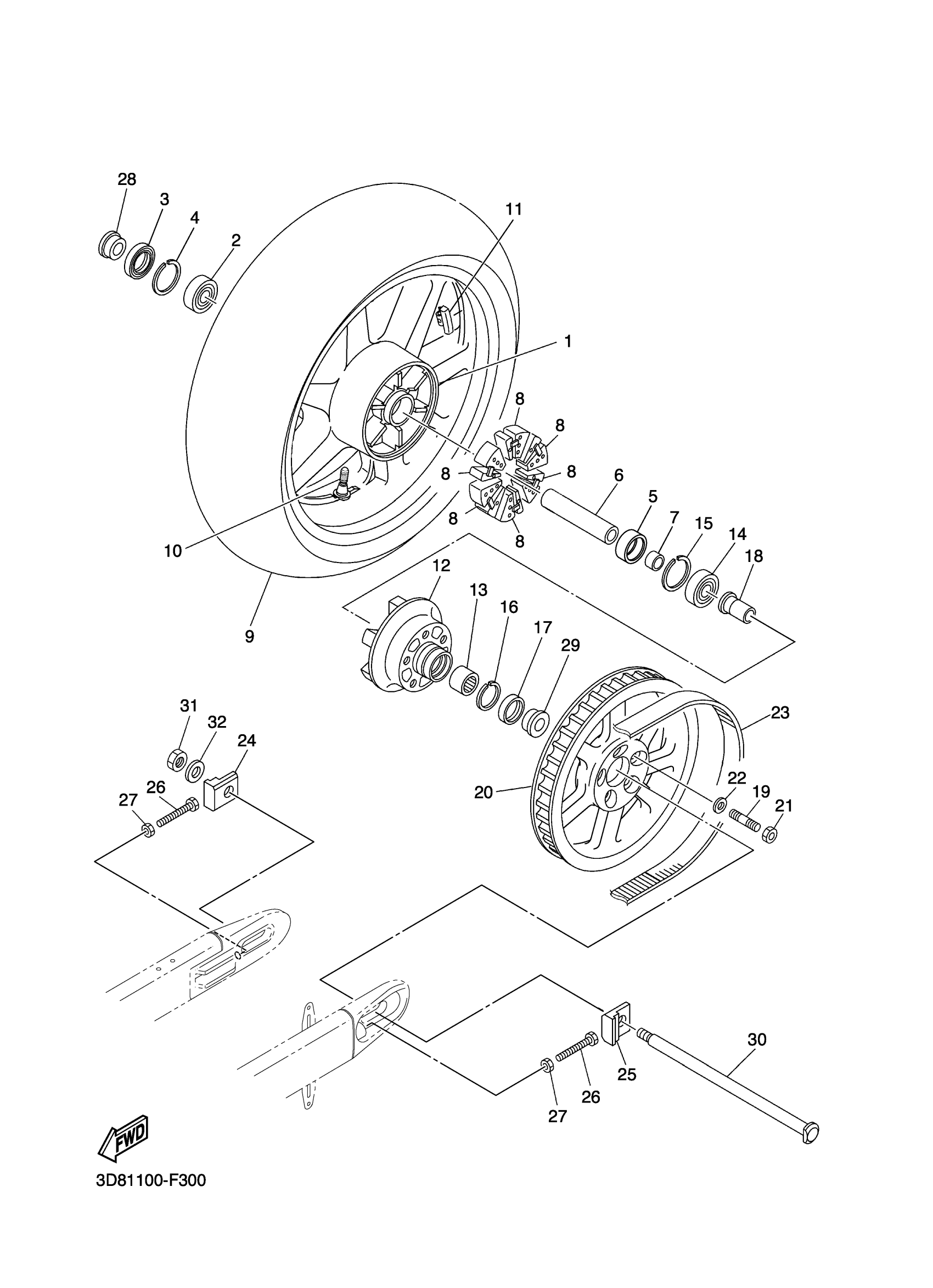

Yamaha XVS13CTFGC (V STAR 1300 DELUXE) 2CAE 2016 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

3D8-25338-00-MA

Unavailable

2

BEARING(3BC)

93306-30437-00

$66.99

3

OIL SEAL

93106-28001-00

Unavailable

4

CIRCLIP(26H)

99009-52500-00

$12.49

5

BEARING

93320-32811-00

$46.99

6

SPACER, BEARING

3D8-25317-00-00

$28.99

7

COLLAR, WHEEL

1D7-25383-00-00

$60.99

8

DAMPER

4WM-25364-00-00

Unavailable

9

TIRE (170/70B16M/C 75H K555)

94117-16001-00

Unavailable

9

TIRE (170/70B16M/C 75H EXEDR)

94117-16002-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

3D8-25366-20-00

$246.99

13

BEARING

93311-32698-00

Unavailable

14

BEARING(3BC)

93306-30437-00

$66.99

15

CIRCLIP(26H)

99009-52500-00

$12.49

16

CIRCLIP

93450-35163-00

Unavailable

17

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

18

COLLAR, WHEEL

3D8-25376-00-00

Unavailable

19

BOLT, STUD

95612-12630-00

Unavailable

20

SPROCKET, DRIVEN (70T)

3D8-25470-01-00

Unavailable

21

NUT, U

95614-12100-00

Unavailable

22

WASHER, PLATE

90201-12045-00

Unavailable

23

BELT

3D8-46241-01-00

Unavailable

24

PULLER, CHAIN 1

5PX-25388-00-00

Unavailable

25

PULLER, CHAIN 2

5PX-25389-00-00

Unavailable

26

BOLT

90101-08013-00

Unavailable

27

NUT

95302-08600-00

Unavailable

28

COLLAR

90387-20033-00

Unavailable

29

COLLAR(3BC)

90387-202X9-00

Unavailable

30

AXLE, WHEEL

3D8-25381-00-00

Unavailable

31

NUT, SELF-LOCKING

90185-18009-00

Unavailable

32

WASHER, PLATE (1J7)

90201-18620-00

Unavailable
