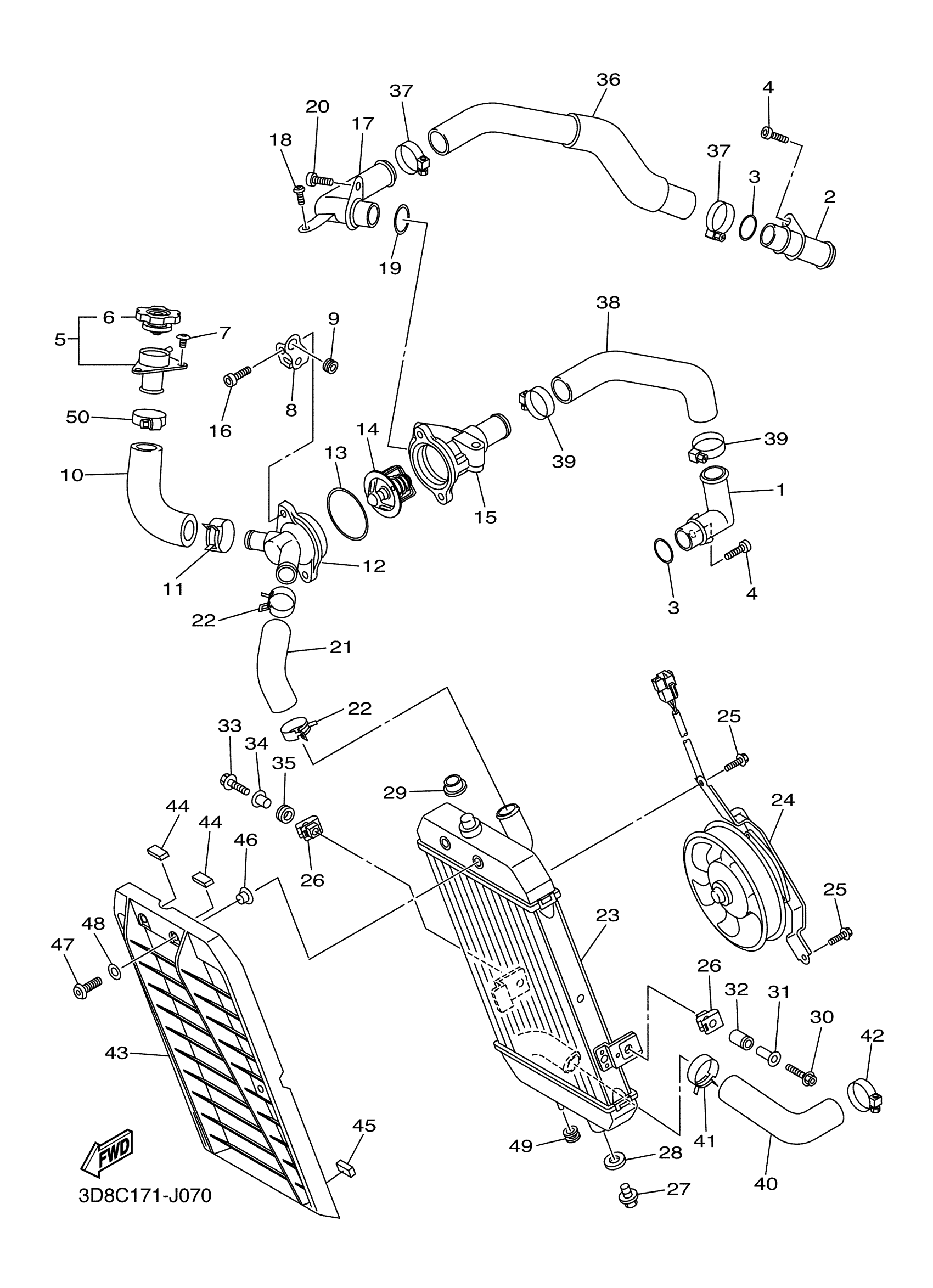

Yamaha XVS13CTFGC (V STAR 1300 DELUXE) 2CAE 2016 RADIATOR HOSE Diagram
#
2
PIPE 2
3D8-12482-00-00
Unavailable
8
BRACKET 1
3D8-1244E-00-00
Unavailable
10
HOSE 6
3D8-12589-10-00
Unavailable
12
COVER, THERMOSTAT
3D8-12413-10-00
Unavailable
14
THERMOSTAT ASSY
1AE-12410-01-00
Unavailable
15
HOUSING, THERMOSTAT
3D8-12417-10-00
Unavailable
16
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
17
PIPE 6
3D8-12476-00-00
Unavailable
18
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
20
BOLT,SOCKET
91317-06012-00
Unavailable
21
HOSE 4
3D8-12579-00-00
Unavailable
22
CLIP
90467-280A1-00
Unavailable
23
RADIATOR ASSY
3D8-12461-10-00
Unavailable
24
BLOWER ASSY
3D8-12405-10-00
Unavailable
25
BOLT, BLOWER HOLDING
3D8-12675-00-00
Unavailable
26
PLATE
3D8-12535-00-00
Unavailable
27
PLUG,DRAIN COCK
1AA-12561-00-00
Unavailable
28
GASKET
1AA-12435-00-00
Unavailable
29
GROMMET
90480-20003-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD
90110-06261-00
Unavailable
31
COLLAR
90387-0614X-00
Unavailable
32
DAMPER, RADIATOR
4XY-12465-00-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD
90110-06263-00
Unavailable
34
COLLAR 437216330000
90387-07391-00
Unavailable
35
GROMMET (4L0)
90480-19283-00
Unavailable
36
HOSE 1
3D8-12576-00-00
Unavailable
37
HOSE CLAMP ASSY
90450-28001-00
Unavailable
38
HOSE 3
3D8-12578-00-00
Unavailable
39
HOSE CLAMP ASSY
90450-28001-00
Unavailable
40
HOSE 5
3D8-12588-00-00
Unavailable
41
CLIP
90467-280A1-00
Unavailable
42
HOSE CLAMP ASSY
90450-35001-00
Unavailable
43
COVER, RADIATOR
3D8-12467-00-00
Unavailable
44
DAMPER 1
3D8-21541-00-00
Unavailable
45
DAMPER, RADIATOR
3D8-12465-00-00
Unavailable
46
COLLAR
90387-08076-00
Unavailable
47
BOLT
90111-06041-00
Unavailable
48
WASHER, PLATE
90201-06096-00
Unavailable
49
GROMMET
90480-08003-00
Unavailable
50
HOSE CLAMP ASSY
90450-28001-00
Unavailable
