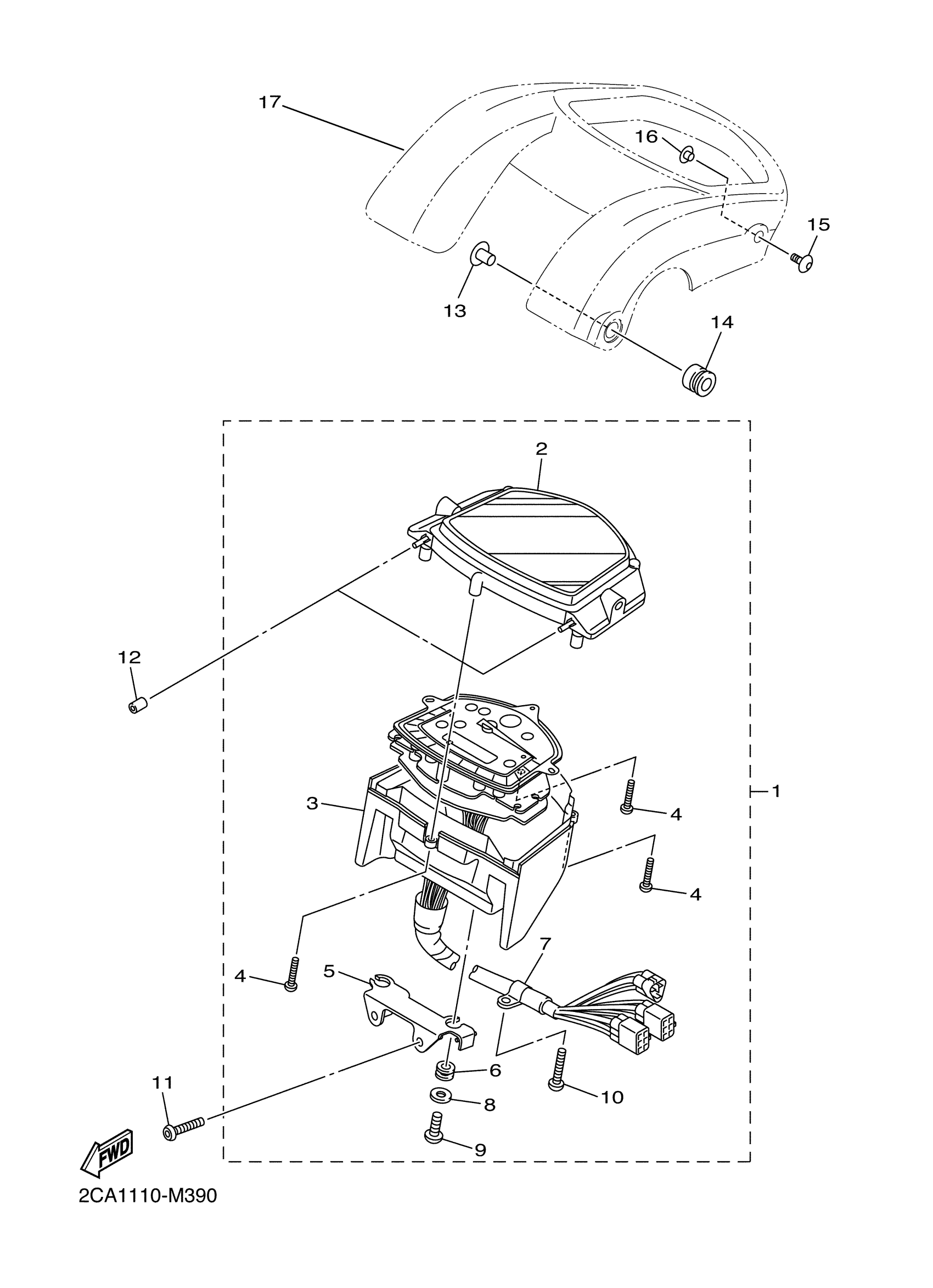

Yamaha XVS13CTFGC (V STAR 1300 DELUXE) 2CAE 2016 METER Diagram

#

Description
Price

1

METER ASSY

3D8-83500-02-00

Unavailable

2

CASE, METER UPPER

3D8-8353E-00-00

Unavailable

3

CASE, SPEEDOMETER LOWER

3D8-83572-00-00

Unavailable

4

SCREW, TAPPING

97702-30014-00

$0.48

5

BRACKET, METER

3D8-83519-00-00

Unavailable

6

DAMPER

4XV-83513-00-00

$7.99

7

CLAMP

4HC-83595-00-00

Unavailable

8

WASHER PLATE 829771780000

90201-05033-00

$10.49

9

SCREW, TAPPING

97702-50016-00

$2.39

10

SCREW, TRUSS TAP.

97707-40014-00

Unavailable

11

BOLT, BUTTON HEAD

92012-08035-00

$4.41

12

HOSE

90445-05004-00

$1.07

13

COLLAR

90387-06162-00

$9.49

14

GROMMET

90480-13020-00

$4.29

15

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

16

COLLAR

90387-05035-00

Unavailable

17

COVER, METER (BLACK)

2CA-H3559-T0-00

Unavailable
