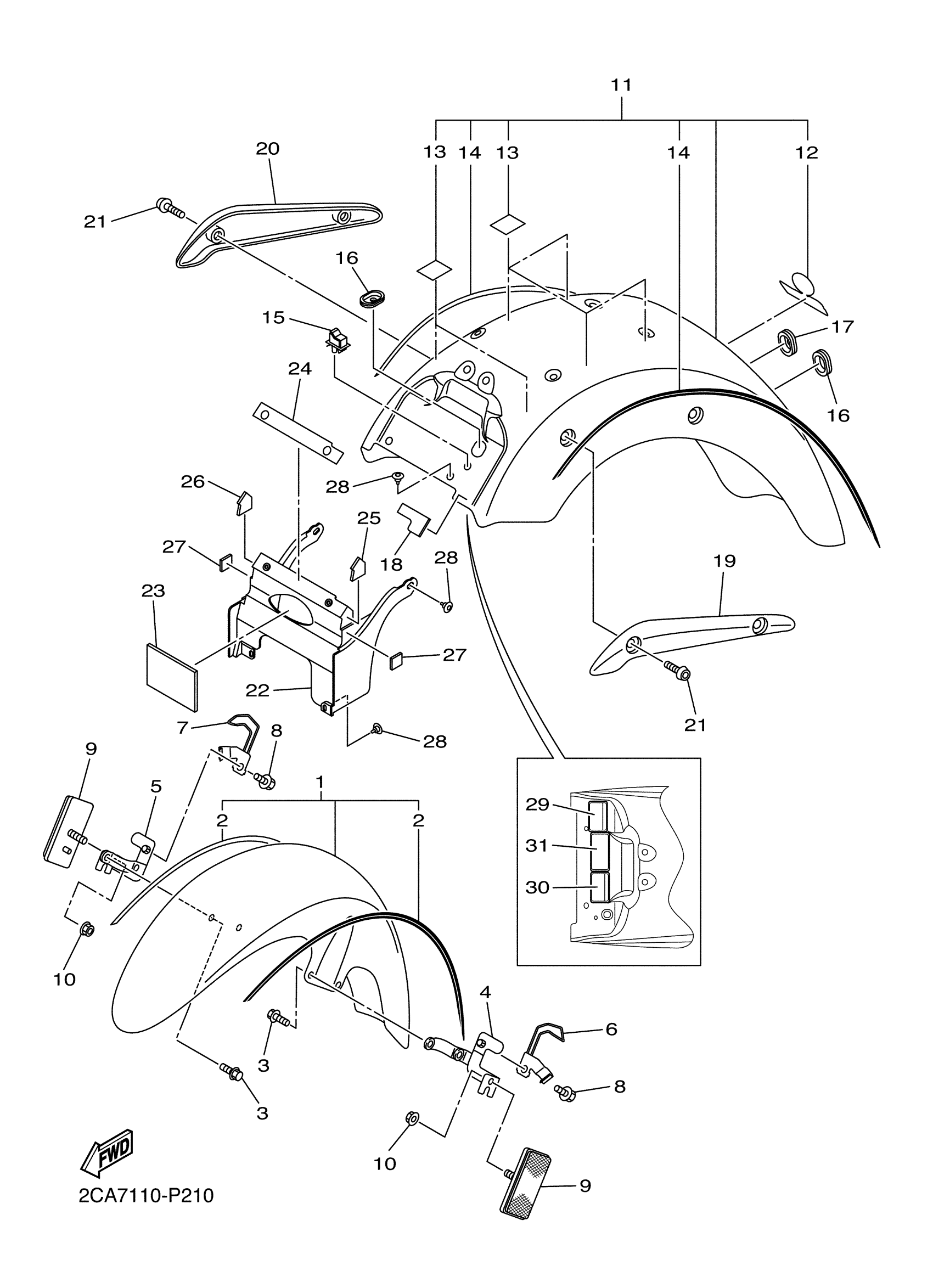

Yamaha XVS13CTFGC (V STAR 1300 DELUXE) 2CAE 2016 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY
3D8-Y2151-41-PF
Unavailable
2
GRAPHIC, FRONT FENDER SET
5S6-21570-50-00
Unavailable
4
STAY 1
3D8-21587-00-00
Unavailable
5
STAY 2
3D8-21588-00-00
Unavailable
6
HOLDER,WIRE 1
3D8-21597-00-00
Unavailable
7
HOLDER, WIRE 2
3D8-21598-00-00
Unavailable
11
REAR FENDER ASSY
3D8-W216R-82-P8
Unavailable
14
GRAPHIC SET,REAR FENDER
5S6-2165A-50-00
Unavailable
16
GROMMET
90480-01015-00
Unavailable
17
PLUG
90338-20004-00
Unavailable
18
DAMPER
3D8-21747-00-00
Unavailable
19
STAY 1
3D8-2164F-10-00
Unavailable
20
STAY 2
3D8-2164G-10-00
Unavailable
21
BOLT
90111-08033-00
Unavailable
22
GUARD, MUD
3D8-21629-00-PF
Unavailable
23
FLAP
3D8-21621-00-00
Unavailable
24
DAMPER 1
3D8-21638-00-00
Unavailable
25
DAMPER 2
3D8-21639-00-00
Unavailable
26
DAMPER
3D8-21649-00-00
Unavailable
27
PROTECTOR
3D8-21652-00-00
Unavailable
28
RIVET(4PH)
90269-07077-00
Unavailable
31
LABEL, TIRE
1D7-21668-00-00
Unavailable
