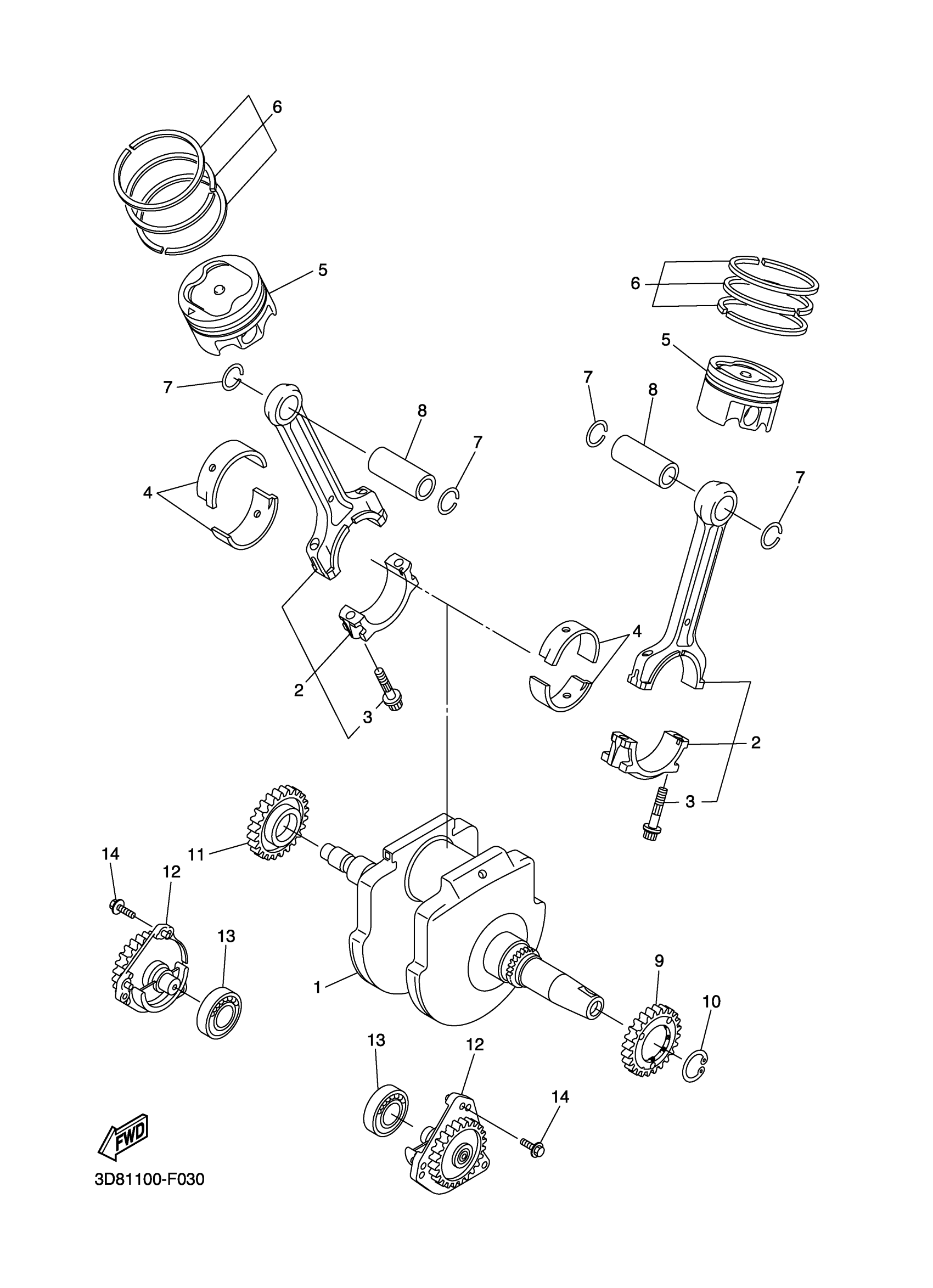

Yamaha XVS13CTFGC (V STAR 1300 DELUXE) 2CAE 2016 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

3D8-11400-01-00

Unavailable

CONNECTING ROD ASSY

3D8-11650-10-00

Unavailable

BOLT, CONNECTING ROD

5YU-11654-00-00

$7.99

PLANE BEARING, CONNECTING ROD

5YU-11656-00-00

Unavailable

PLANE BEARING, CONNECTING ROD

5YU-11656-10-00

$17.49

PLANE BEARING, CONNECTING ROD

5YU-11656-20-00

$17.49

PLANE BEARING, CONNECTING ROD

5YU-11656-30-00

Unavailable

PLANE BEARING, CONNECTING ROD

5YU-11656-40-00

Unavailable

PISTON (STD)

3D8-11631-00-00

Unavailable

PISTON RING SET (STD)

1D7-11610-00-00

Unavailable

CIRCLIP

93450-24154-00

$3.14

PIN, PISTON

5VK-11633-00-00

$41.99

BALANCER WEIGHT GEAR COMP.

3D8-11530-00-00

Unavailable

CIRCLIP(N02)

99009-40400-00

$3.35

GEAR,1

3D8-11543-00-00

Unavailable

BALANCER ASSY

3D8-11500-00-00

Unavailable

BEARING(1GJ)

93306-20458-00

Unavailable

BOLT

90109-06015-00

Unavailable
