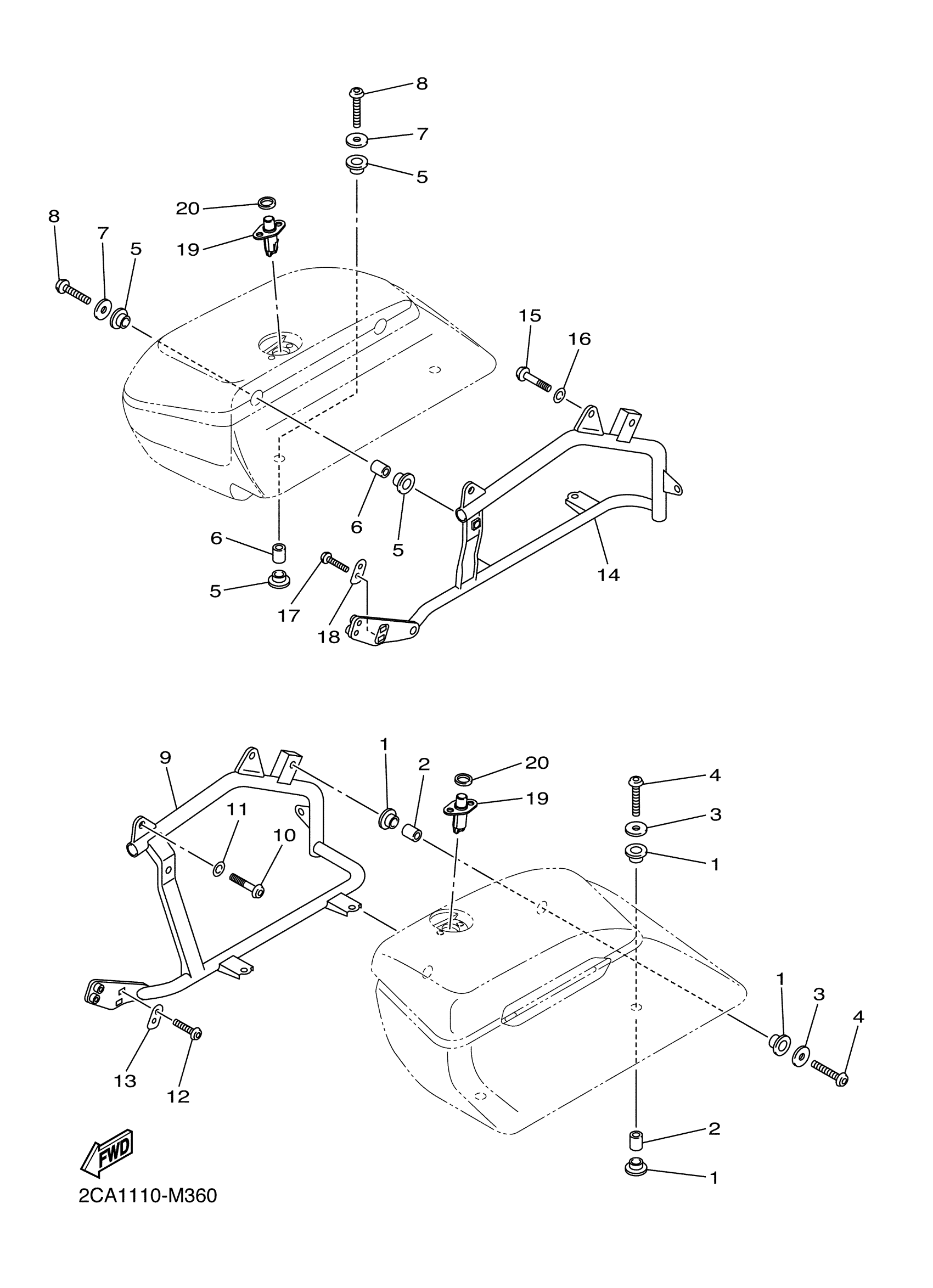

Yamaha XVS13CTFFC (V STAR 1300 DELUXE CA) 2CA8 2015 SADDLEBAG MOUNTING Diagram

#

Description
Price

1

GROMMET

90480-20004-00

$3.55

2

COLLAR

90387-08077-00

$8.49

3

WASHER (23T)

90201-065G8-00

$8.49

4

BOLT, BUTTON HEAD

92012-06025-00

$3.13

5

GROMMET

90480-20004-00

$3.55

6

COLLAR

90387-08077-00

$8.49

7

WASHER (23T)

90201-065G8-00

$8.49

8

BOLT, BUTTON HEAD

92012-06025-00

$3.13

9

FRAME, SADDLEBAG 1

5S6-28473-01-00

$289.99

10

BOLT, BUTTON HEAD

92012-08065-00

$8.49

11

. WASHER

92902-08200-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-08046-00

$7.49

13

PLATE

5S6-28417-00-00

$11.99

14

FRAME, SADDLEBAG 2

5S6-28474-01-00

Unavailable

15

BOLT, BUTTON HEAD

92012-08065-00

$8.49

16

. WASHER

92902-08200-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-08046-00

$7.49

18

PLATE

5S6-28417-00-00

$11.99

19

LOCK ASSY.1

5S6-28408-00-00

Unavailable

20

SEAL 1

5S6-28428-00-00

Unavailable
