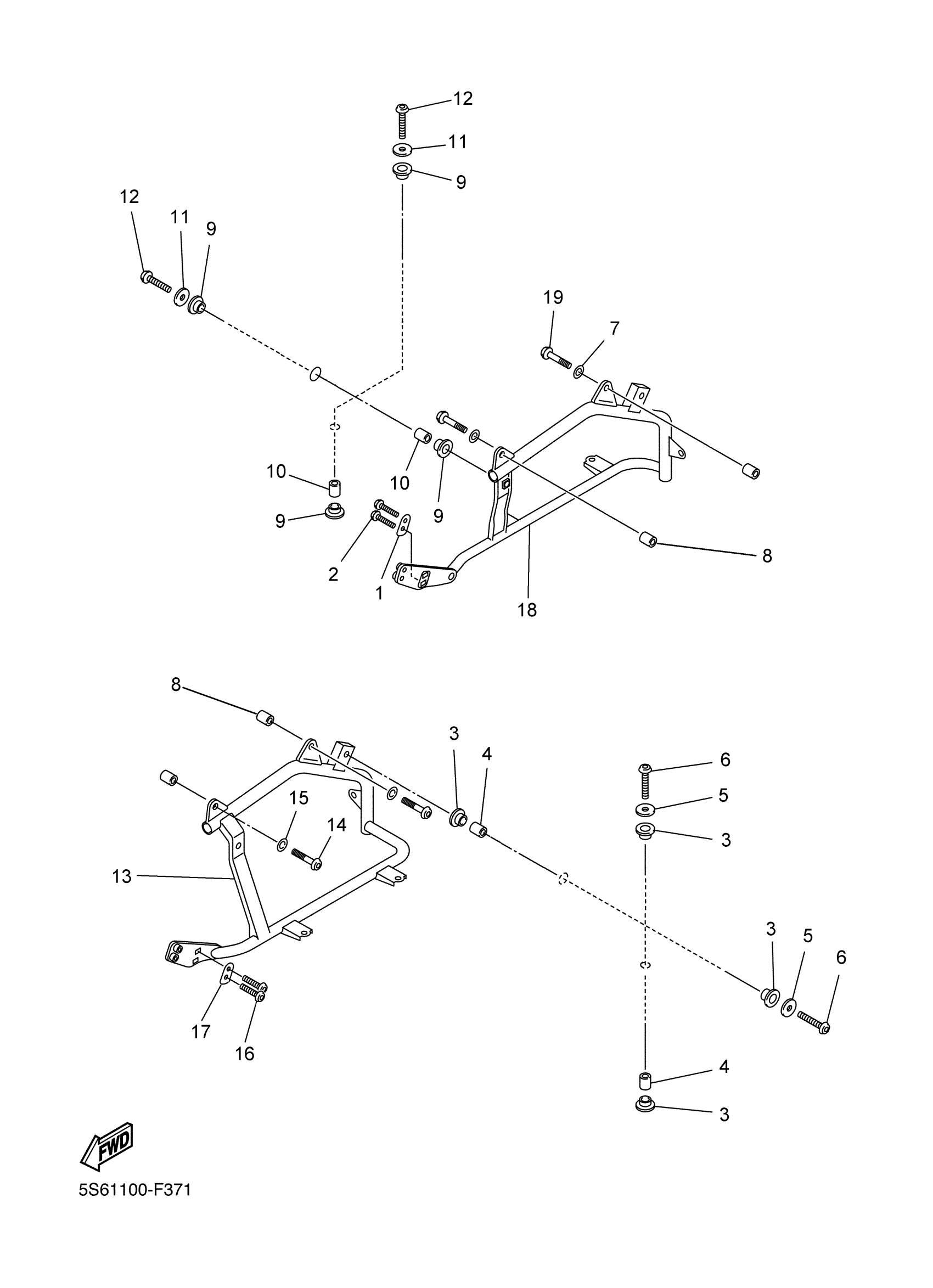

Yamaha XVS13CTFEC (V STAR 1300 DELUXE CA) 2CA5 2014 SADDLEBAG MOUNTING Diagram

#

Description
Price

1

PLATE

5S6-28417-00-00

$11.99

2

BOLT,HEX. SOCKET BUTTON

90111-08046-00

$7.49

3

GROMMET

90480-20004-00

$3.55

4

COLLAR

90387-08077-00

$8.49

5

WASHER (23T)

90201-065G8-00

$8.49

6

BOLT, BUTTON HEAD

92012-06025-00

$3.13

7

. WASHER

92902-08200-00

Unavailable

9

GROMMET

90480-20004-00

$3.55

10

COLLAR

90387-08077-00

$8.49

11

WASHER (23T)

90201-065G8-00

$8.49

12

BOLT, BUTTON HEAD

92012-06025-00

$3.13

13

FRAME, SADDLEBAG 1

5S6-28473-01-00

$289.99

14

BOLT, BUTTON HEAD

92012-08065-00

$8.49

15

. WASHER

92902-08200-00

Unavailable

16

BOLT,HEX. SOCKET BUTTON

90111-08046-00

$7.49

17

PLATE

5S6-28417-00-00

$11.99

18

FRAME, SADDLEBAG 2

5S6-28474-01-00

Unavailable

19

BOLT, BUTTON HEAD

92012-08065-00

$8.49
