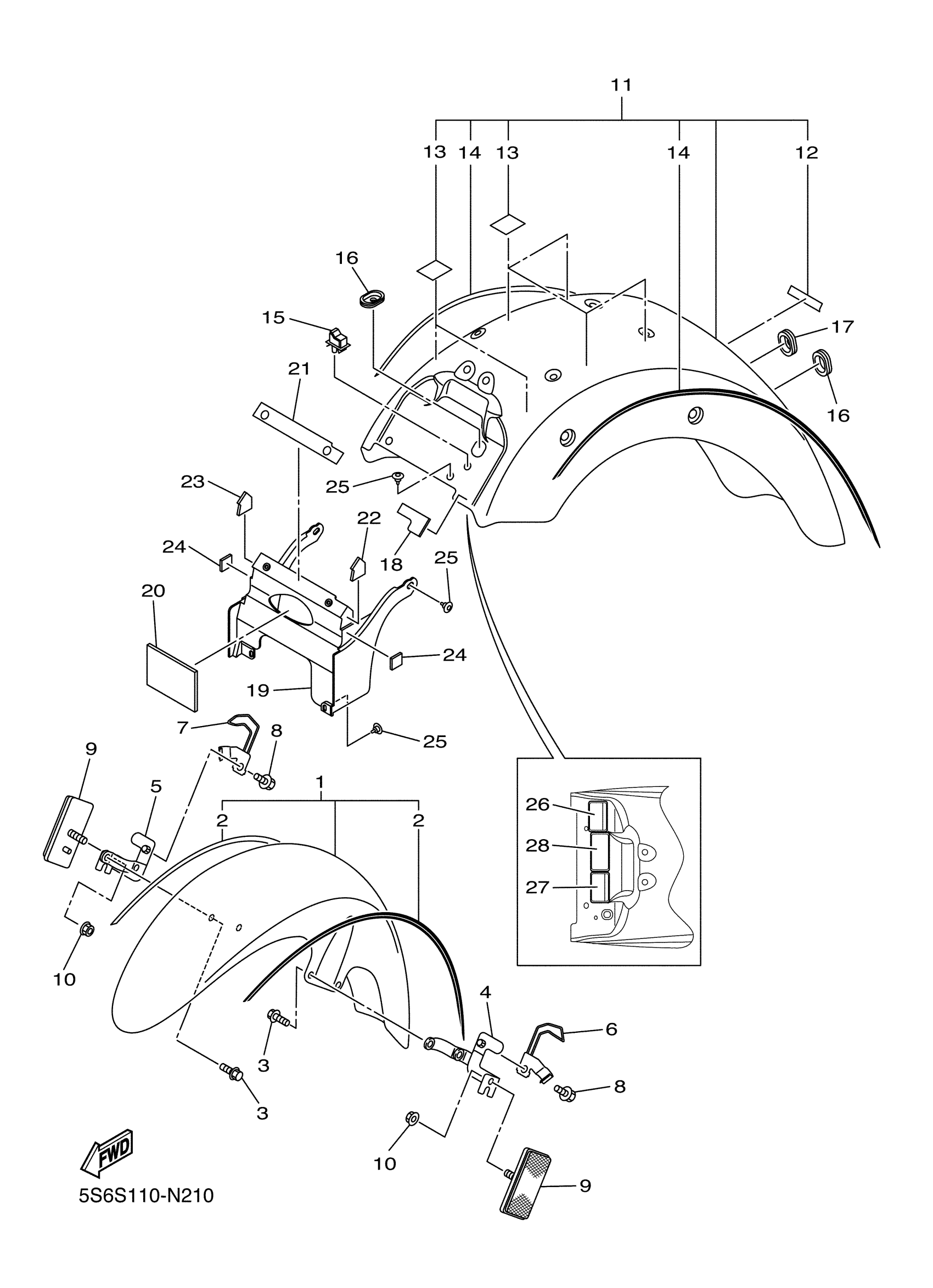

Yamaha XVS13CTECB (V STAR 1300 TOURER CA) 5S6T 2014 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

3D8-Y2151-11-P0

Unavailable

2

GRAPHIC SET, FRONT FENDER

5S6-21570-00-00

Unavailable

3

BOLT, FLANGE

95812-08020-00

$2.80

4

STAY 1

3D8-21587-00-00

Unavailable

5

STAY 2

3D8-21588-00-00

Unavailable

6

HOLDER,WIRE 1

3D8-21597-00-00

Unavailable

7

HOLDER, WIRE 2

3D8-21598-00-00

Unavailable

8

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

9

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

10

NUT, FLANGE(3GM)

95707-05500-00

$8.49

11

REAR FENDER ASSY

3D8-W216R-70-P0

Unavailable

12

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

13

SEAL

5PX-21669-01-00

$11.99

14

GRAPHIC SET,REAR FENDER

5S6-2165A-00-00

Unavailable

15

CLAMP (1J7)

90464-16021-00

$12.49

16

GROMMET

90480-01015-00

Unavailable

17

PLUG

90338-20004-00

Unavailable

18

DAMPER

3D8-21747-00-00

Unavailable

19

GUARD, MUD

3D8-21629-00-P0

Unavailable

20

FLAP

3D8-21621-00-00

Unavailable

21

DAMPER 1

3D8-21638-00-00

Unavailable

22

DAMPER 2

3D8-21639-00-00

Unavailable

23

DAMPER

3D8-21649-00-00

Unavailable

24

PROTECTOR

3D8-21652-00-00

Unavailable

25

RIVET(4PH)

90269-07077-00

Unavailable

28

LABEL, TIRE

1D7-21668-00-00

Unavailable
