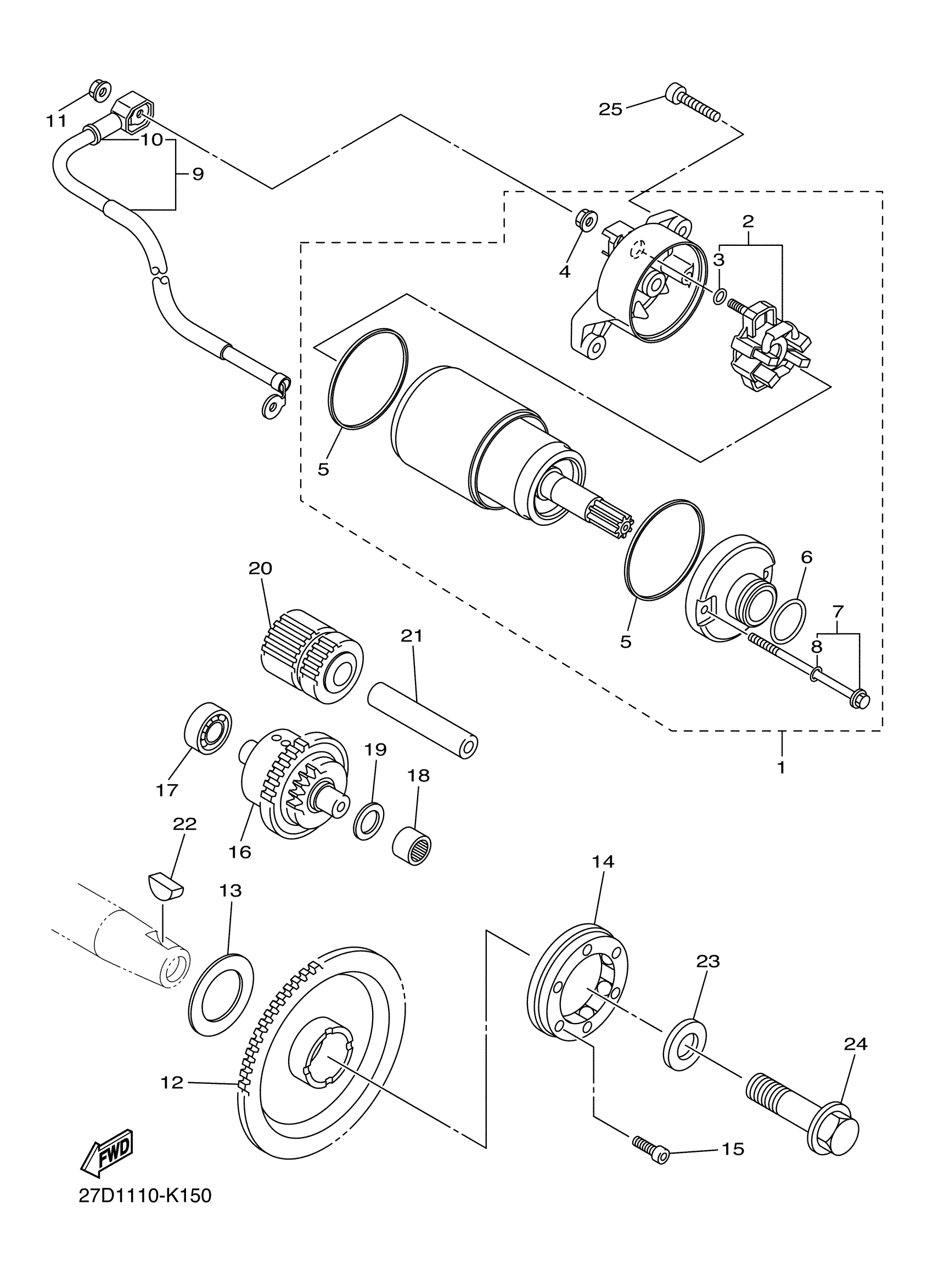

Yamaha XVS13CTDR (V STAR 1300 TOURER) 5S6N 2013 STARTER Diagram
#
Description
Price
3
.. O-RING
3TB-81847-00-00
Unavailable
5
GASKET
35C-81844-00-00
Unavailable
7
BOLT
28P-81826-00-00
Unavailable
8
.. O-RING
3TB-81847-00-00
Unavailable
9
CORD, STARTER MOTOR
3D8-81815-10-00
Unavailable
10
CAP
4B5-81871-00-00
Unavailable
12
GEAR 3
3D8-15515-10-00
Unavailable
13
WASHER, PLATE(1VJ)
90201-303P4-00
Unavailable
14
STARTER ONE-WAY ASSY
4NK-15590-00-00
Unavailable
16
DAMPER ASSY
3D8-15560-10-00
Unavailable
17
BRG,R-B 6000 26MM 19G KY
93306-00004-00
Unavailable
18
BEARING
93317-11096-00
Unavailable
19
WASHER PLATE (3L6)
90201-08759-00
Unavailable
20
GEAR, IDLER 1
3D8-15512-01-00
Unavailable
21
SHAFT 2
4WM-15522-00-00
Unavailable
22
KEY, WOODRUFF
90280-05001-00
Unavailable
23
WASHER, PLATE
90201-12008-00
Unavailable
24
BOLT, WASHER BASED(3LD)
90105-12584-00
Unavailable
25
BOLT, SOCKET
91314-06030-00
Unavailable
