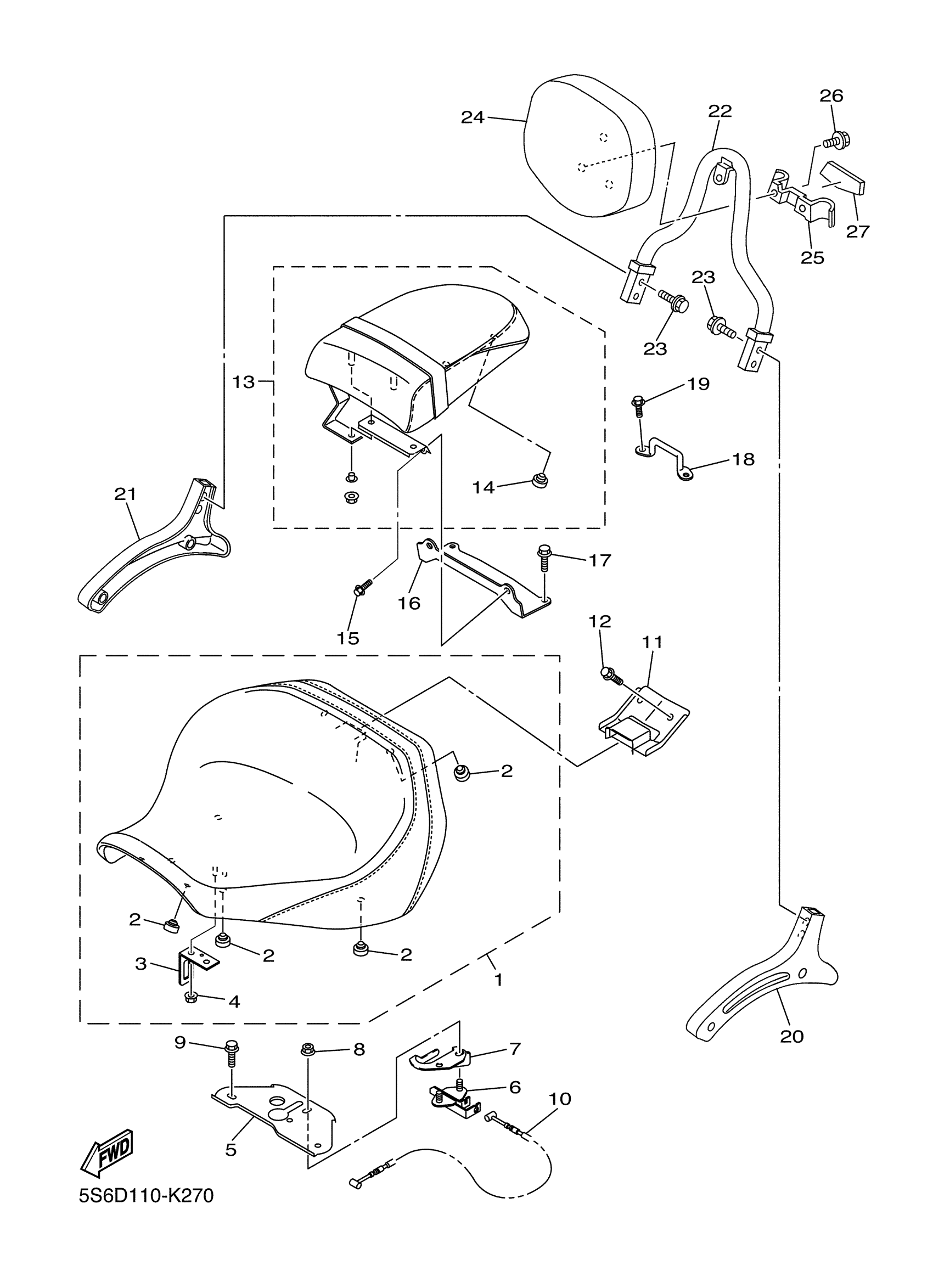

Yamaha XVS13CTDR (V STAR 1300 TOURER) 5S6N 2013 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

3D8-24710-11-00

Unavailable

2

PAD, SEAT

22W-24741-00-00

$8.99

3

BRACKET, SEAT

4NK-24728-00-00

$11.99

4

NUT, U FLANGE

95604-06200-00

$8.49

5

BRACKET, SEAT 1

3D8-21341-01-00

Unavailable

6

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

7

PLATE

27D-24792-00-00

$14.49

8

NUT, FLANGE

95702-06500-00

$2.39

9

BOLT, FLANGE

95817-06014-00

Unavailable

10

CABLE, SEAT LOCK

5PX-2478E-00-00

$20.99

11

BRACKET

3D8-2475N-00-00

Unavailable

12

BOLT, BUTTON HEAD

92012-08012-00

$8.49

13

TANDEM SEAT ASSY

3D8-24750-02-00

Unavailable

14

PAD, SEAT

22W-24741-00-00

$8.99

15

BOLT, FLANGE

95022-08012-00

$12.49

16

BRACKET, SEAT LEVER 1

1D7-2475H-00-00

Unavailable

17

BOLT, FLANGE

95022-08012-00

$12.49

18

BRACKET 6

3D8-2475R-00-00

Unavailable

19

BOLT, FLANGE

95022-08012-00

$12.49

20

GRIP 1

5S6-2164A-00-00

Unavailable

21

GRIP 2

5S6-2164E-00-00

Unavailable

22

STAY 1

5S6-2164F-00-00

Unavailable

23

BOLT, FLANGE(2UJ)

95024-08012-00

Unavailable

24

BACK REST ASSY

5GA-2840F-21-00

Unavailable

25

STAY 2

5GA-2164G-00-00

Unavailable

26

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

27

EMBLEM

5GA-24786-01-00

Unavailable
