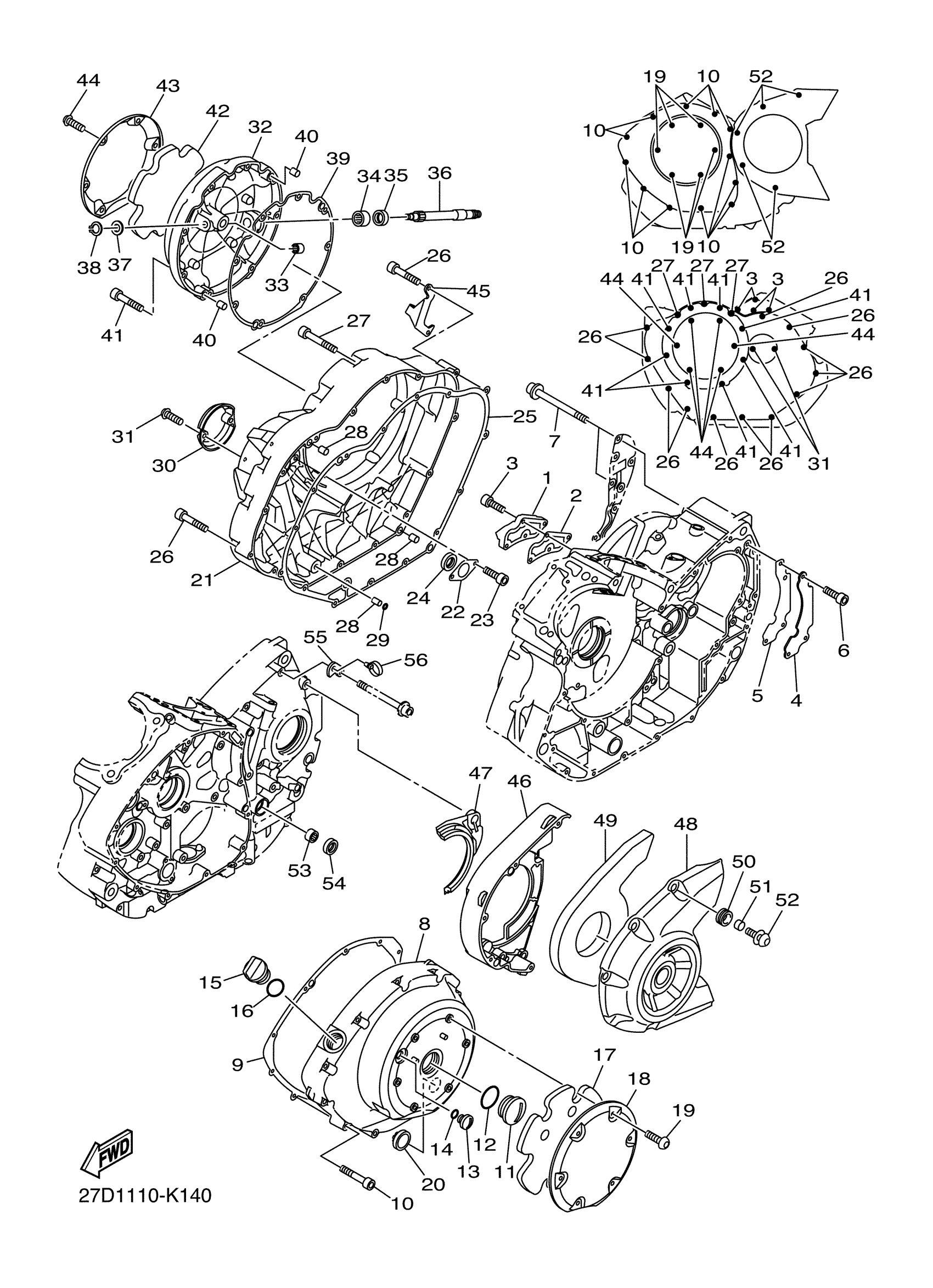

Yamaha XVS13CTDR (V STAR 1300 TOURER) 5S6N 2013 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, OIL PUMP

3D8-15416-00-00

$49.99

2

GASKET 1

3D8-15454-00-00

$9.99

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

SEPARATOR, OIL

3D8-15358-00-00

Unavailable

5

GASKET, DRAIN

3D8-15353-00-00

Unavailable

6

BOLT,SOCKET

91317-06016-00

$1.25

7

BOLT, HEXAGON SOCKET HEAD

90110-06250-00

Unavailable

8

COVER, CRANKCASE 1

3D8-15411-00-00

$348.99

9

GASKET, CRANKCASE COVER 1

3D8-15451-00-00

$23.99

10

BOLT, SOCKET

91314-06040-00

$8.49

11

PLUG, STRAIGHT SCREW (5Y1)

90340-36078-00

$14.99

12

O-RING

93210-35804-00

$0.48

13

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

14

O-RING (2H9)

93210-14369-00

$7.49

15

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

16

O-RING(1KT)

93210-27778-00

Unavailable

17

DAMPER 1

27D-1542A-00-00

Unavailable

18

COVER

27D-15492-00-00

Unavailable

19

BOLT, BUTTON

92014-06016-00

Unavailable

20

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

21

COVER, CRANKCASE 2

3D8-15421-00-00

Unavailable

22

PLATE, BEARING COVER

3D8-15388-00-00

Unavailable

23

BOLT,SOCKET

91317-06012-00

Unavailable

24

OIL SEAL (4X7)

93101-14102-00

Unavailable

25

GASKET, CRANKCASE COVER 2

3D8-15461-00-00

Unavailable

26

BOLT, SOCKET

91314-06040-00

$8.49

27

BOLT, SOCKET

91314-06065-00

Unavailable

28

PIN, DOWEL

99530-08012-00

Unavailable

29

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

30

COVER 2

3D8-15423-01-00

Unavailable

31

BOLT, BUTTON

92014-06016-00

Unavailable

32

COVER, AIR CLEANER

3D8-15414-00-00

Unavailable

33

BEARING

93317-11096-00

Unavailable

34

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

35

OIL SEAL (3X3)

93102-15212-00

Unavailable

36

AXLE, PUSH LEVER

3D8-16382-00-00

Unavailable

37

.. WASHER, PLATE

92990-08600-00

Unavailable

38

CIRCLIP

99080-07600-00

Unavailable

39

GASKET

3D8-15453-00-00

Unavailable

40

PIN, DOWEL

99530-08012-00

Unavailable

41

BOLT, SOCKET

91314-06030-00

Unavailable

42

DAMPER 2

27D-1542B-00-00

Unavailable

43

COVER

27D-15415-00-00

Unavailable

44

BOLT, BUTTON

92014-06016-00

Unavailable

45

HOLDER, CLUTCH CABLE

27D-15441-00-00

Unavailable

46

STAY,CRANKCASECOVER 1

3D8-1541A-01-00

Unavailable

47

DAMPER 4

3D8-15337-02-00

Unavailable

48

COVER, OIL PUMP 2

27D-15426-00-00

Unavailable

49

DAMPER 1

27D-15316-00-00

Unavailable

50

GROMMET

90480-13030-00

Unavailable

51

COLLAR

90387-06207-00

Unavailable

52

BOLT,HEX. SOCKET BUTTON

90111-06130-00

Unavailable

53

BEARING

93317-11287-00

Unavailable

54

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable

55

STAY 1

3D8-15544-00-00

Unavailable

56

CLAMP

90464-16006-00

Unavailable
