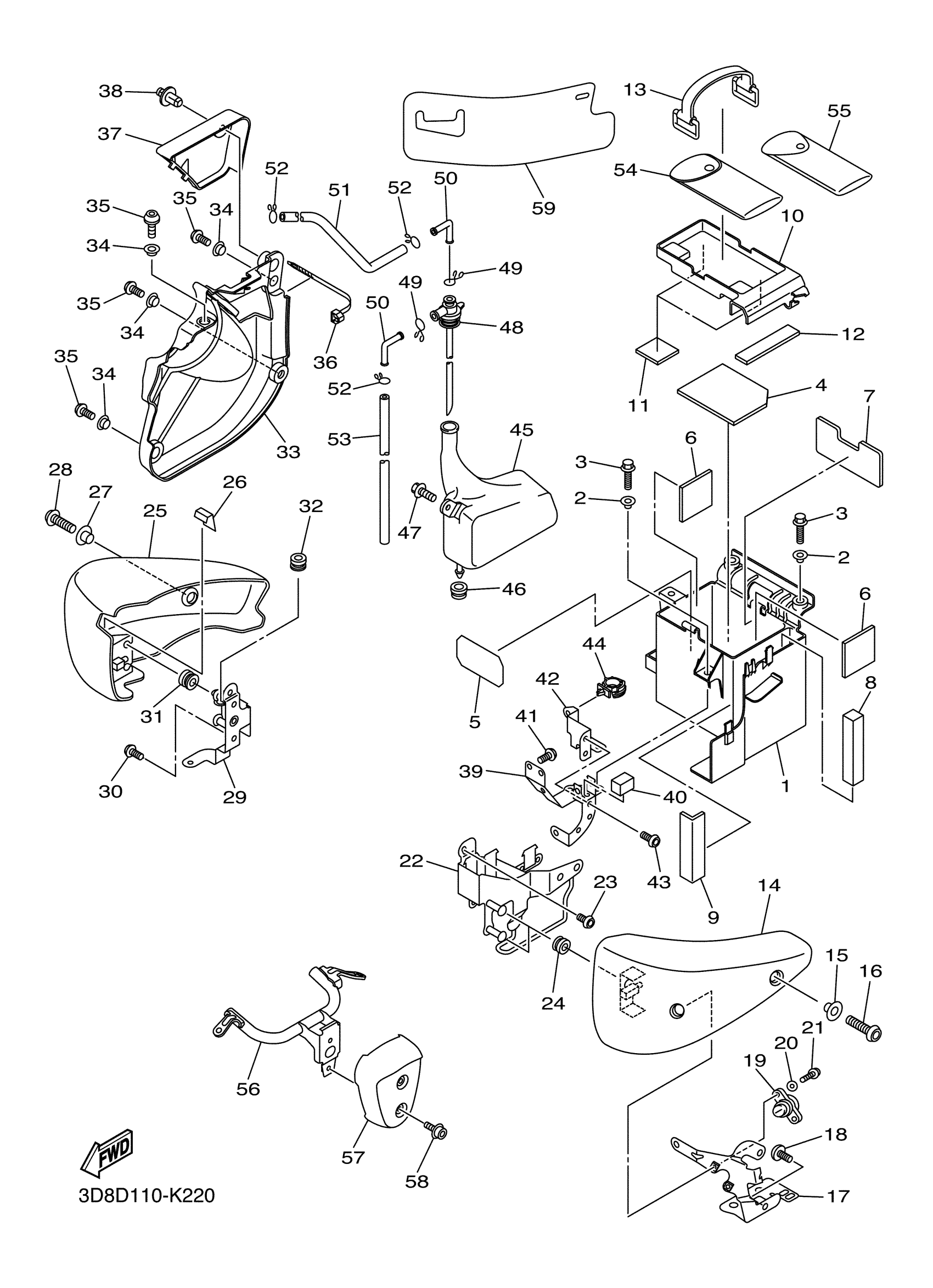

Yamaha XVS13CTBL (V STAR 1300 TOURER) 5S6G0 2012 SIDE COVER Diagram
#
2
COLLAR
90387-06267-00
Unavailable
5
PROTECTOR
5PX-21652-00-00
Unavailable
8
DAMPER, LOCATING 2
3D8-21779-00-00
Unavailable
10
BOX, TOOL
3D8-28173-10-00
Unavailable
14
COVER, SIDE 1
3D8-21711-00-PA
Unavailable
16
SCREW
90149-06023-00
Unavailable
17
BRACKET 1
3D8-2175T-00-00
Unavailable
18
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
19
ROTOR SET
5PX-W2470-00-00
Unavailable
20
WASHER, PLATE
90201-06034-00
Unavailable
21
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
22
BRACKET 3
3D8-2172M-10-00
Unavailable
23
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
24
GROMMET(3VD)
90480-12550-00
Unavailable
25
COVER, SIDE 2
3D8-21721-00-PA
Unavailable
26
PROTECTOR
3MA-27491-00-00
Unavailable
28
BOLT
90111-06038-00
Unavailable
29
BRACKET 4
3D8-2172N-00-00
Unavailable
30
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
31
GROMMET(3VD)
90480-12550-00
Unavailable
32
GROMMET(3AK)
90480-18495-00
Unavailable
33
COVER, SIDE 4
3D8-21741-10-00
Unavailable
34
COLLAR
90387-06184-00
Unavailable
35
BOLT
90111-06038-00
Unavailable
36
CLAMP(4FM)
90464-15195-00
Unavailable
37
PLATE
3D8-2176E-10-00
Unavailable
38
RIVET(4PH)
90269-07077-00
Unavailable
39
BRACKET 1
3D8-2172K-01-00
Unavailable
40
DAMPER, LOCATING 1
3D8-21778-00-00
Unavailable
41
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
42
BRACKET 2
3D8-2172L-00-00
Unavailable
43
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
44
CLAMP
90464-17008-00
Unavailable
45
TANK, RECOVERY
3D8-21871-00-00
Unavailable
46
GROMMET(4FU)
90480-13567-00
Unavailable
47
BOLT, WITH WASHER
90119-06137-00
Unavailable
48
CAP
3D8-21875-00-00
Unavailable
49
CLIP(72X)
90467-11M08-00
Unavailable
50
ELBOW
26H-21828-00-00
Unavailable
51
PIPE, BREATHER
3D8-21826-00-00
Unavailable
52
CLIP 101235600
90467-08003-00
Unavailable
53
HOSE (L420)
90445-092K1-00
Unavailable
54
TOOL KIT
3D8-28100-11-00
Unavailable
55
TOOL KIT 2
3D8-28110-01-00
Unavailable
56
STAY, COVER
3D8-1541E-00-00
Unavailable
57
COVER, CARBURETOR 1
5EL-14283-00-00
Unavailable
58
BOLT, HEXAGON SOCKET HEAD
90110-05057-00
Unavailable
59
COVER
27D-24796-00-00
Unavailable
