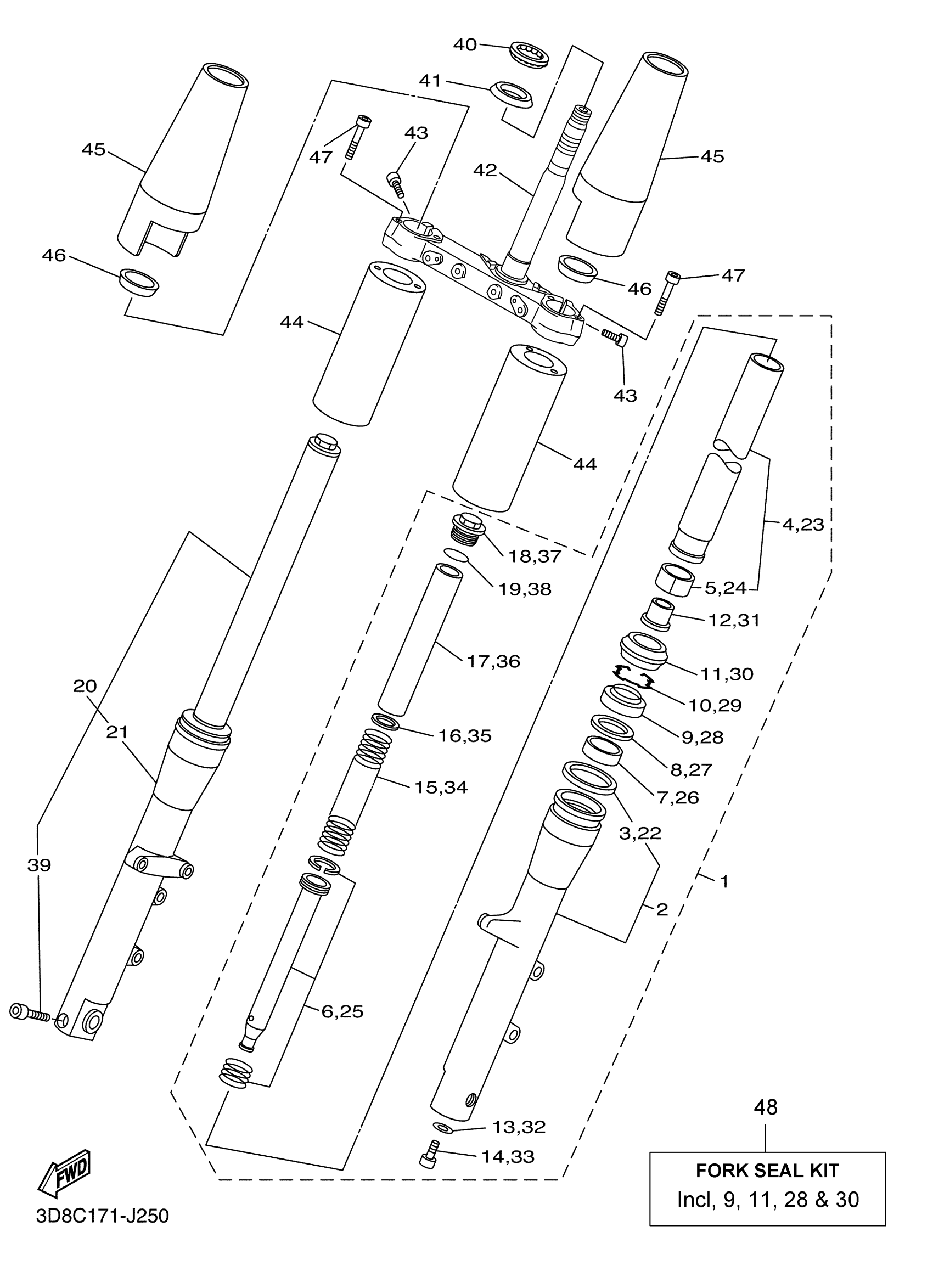

Yamaha XVS13CTBL (V STAR 1300 TOURER) 5S6G0 2012 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
3D8-23102-20-00
Unavailable
2
TUBE, OUTER (LEFT)
5KS-23126-10-00
Unavailable
6
CYLINDER COMP., FRONT FORK
3D8-23170-10-00
Unavailable
12
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
15
SPRING, FRONT FORK
3D8-23141-00-00
Unavailable
16
WASHER, SPRING UPPER
4DW-23149-40-00
Unavailable
17
SPACER
5EL-23118-00-00
Unavailable
18
BOLT, CAP
1D0-23111-00-00
Unavailable
19
O-RING
43F-23188-10-00
Unavailable
20
FRONT FORK ASSY (R.H)
3D8-23103-20-00
Unavailable
21
TUBE, OUTER (RIGHT)
5KS-23136-10-00
Unavailable
25
CYLINDER COMP., FRONT FORK
3D8-23170-10-00
Unavailable
31
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
34
SPRING, FRONT FORK
3D8-23141-00-00
Unavailable
35
WASHER, SPRING UPPER
4DW-23149-40-00
Unavailable
36
SPACER
5EL-23118-00-00
Unavailable
37
BOLT, CAP
1D0-23111-00-00
Unavailable
38
O-RING
43F-23188-10-00
Unavailable
39
BOLT,SOCKET
91314-08040-00
Unavailable
40
BEARING(3FV)
93399-99932-00
Unavailable
41
SEAL, STEERING
3FV-23462-00-00
Unavailable
42
UNDER BRACKET COMP.
5S7-23340-01-00
Unavailable
43
BOLT,SOCKET
91314-10020-00
Unavailable
44
COVER, LOWER 1
3D8-23123-00-00
Unavailable
45
COVER, UPPER 1
3D8-23121-00-00
Unavailable
46
GASKET
3D8-23163-00-00
Unavailable
47
BOLT, SPECIAL
3D8-23394-20-00
Unavailable
48
FORK SEAL KIT (TWO FORKS)
4EB-W003B-00-00
Unavailable
