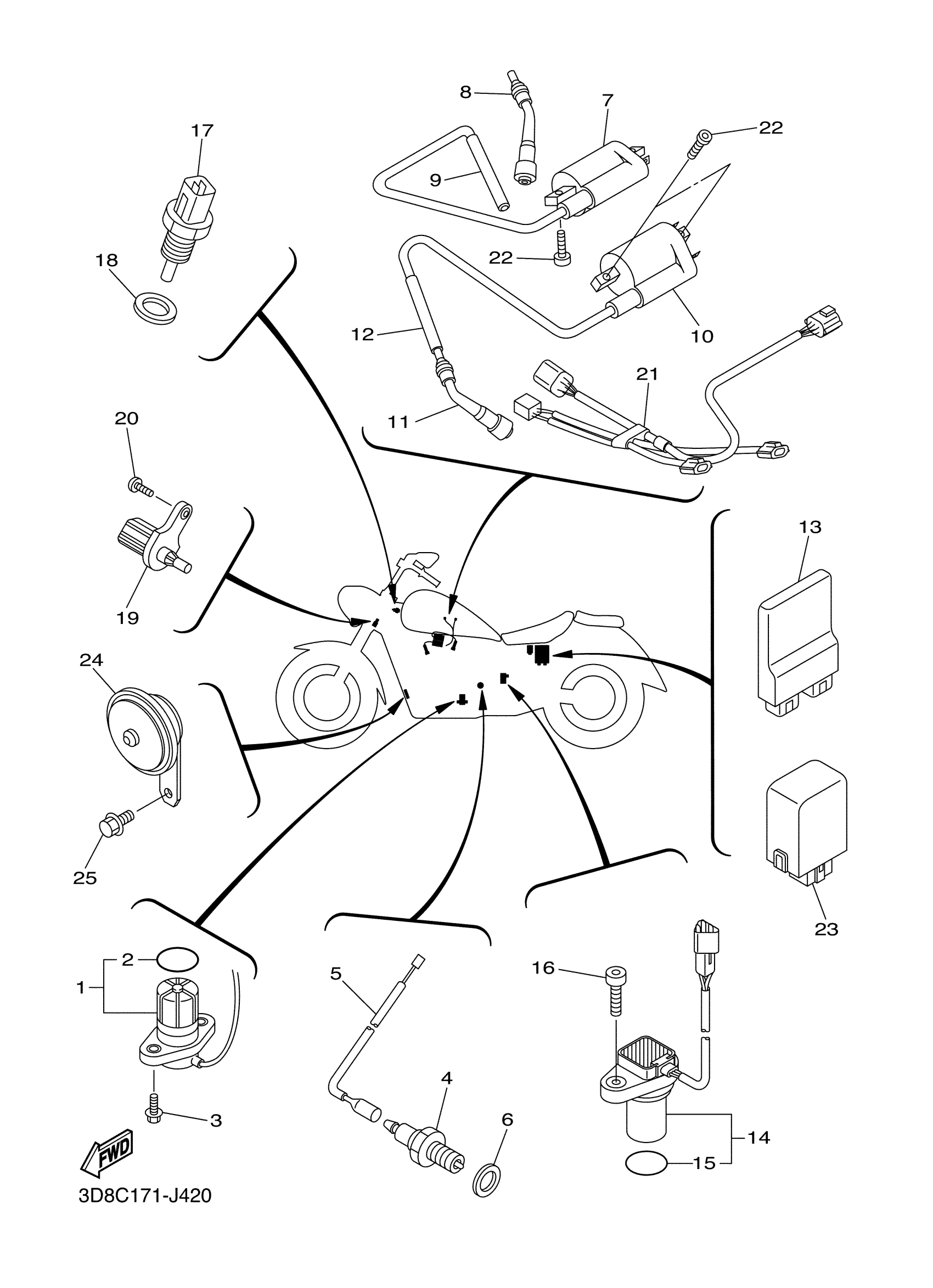

Yamaha XVS13CTBL (V STAR 1300 TOURER) 5S6G0 2012 ELECTRICAL 1 Diagram

#

Description
Price

1

OIL LEVEL GAUGE ASSY

3D8-85720-00-00

$104.33

2

O-RING

5VY-8A8E0-00-00

$10.21

3

BOLT, FLANGE

95022-06016-00

$3.11

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$49.24

5

WIRE, SUB LEAD

3D8-82509-00-00

Unavailable

6

GASKET (1KH,1.0T)

90430-10148-00

$4.44

7

IGNITION COIL ASSY

3D8-82310-03-00

Unavailable

8

PLUG CAP ASSY

3D8-82370-00-00

Unavailable

9

HOSE

5RU-82353-00-00

$4.50

10

IGNITION COIL ASSY

3D8-82310-11-00

Unavailable

11

PLUG CAP ASSY

3D8-82370-00-00

Unavailable

12

HOSE

5RU-82353-00-00

$4.50

13

ENGINE CONTROL UNIT ASSY

3D8-8591A-20-00

Unavailable

14

Sensor Speed

3D8-83755-01-00

Unavailable

15

O-RING

4D9-81168-00-00

$4.04

16

BOLT, SOCKET

91314-06016-00

Unavailable

17

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

18

WASHER, PLATE

90201-12790-00

Unavailable

19

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

20

SCREW, PAN

98517-05012-00

Unavailable

21

WIRE, SUB LEAD

3D8-82509-20-00

Unavailable

22

BOLT,SOCKET

91380-06016-00

Unavailable

23

FLASHER RELAY ASSY

3D8-83350-01-00

Unavailable

24

HORN

3D8-83371-00-00

Unavailable

25

BOLT, WASHER BASED

90105-082A5-00

Unavailable
