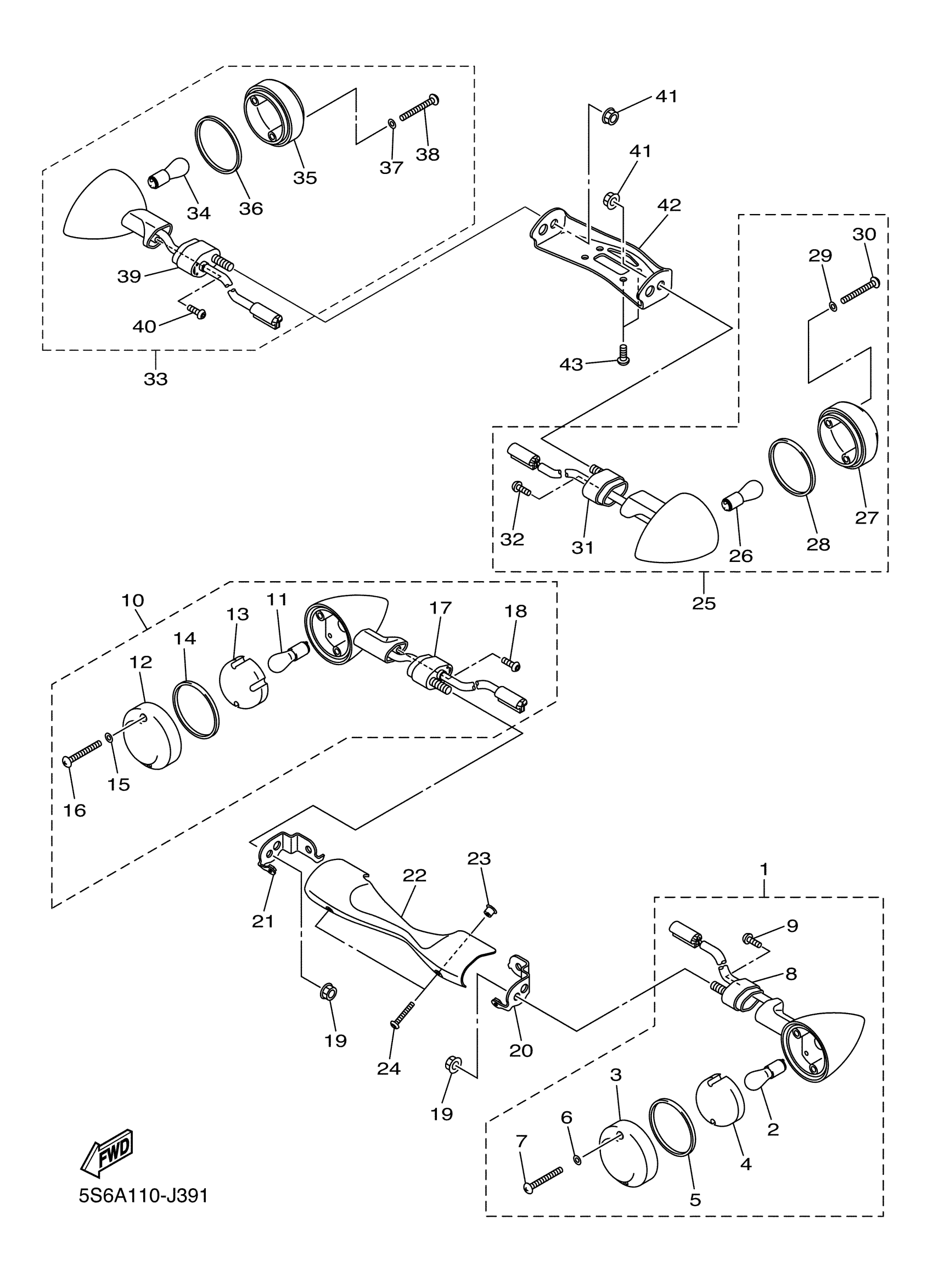

Yamaha XVS13CTAR (V STAR 1300 TOURER) 5S6D 2011 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

3D8-83310-00-00

$85.95

2

BULB

1A2-84714-50-00

$11.36

3

LENS, FLASHER

3D8-83312-00-00

$10.53

4

LENS, INNER 1

3D8-8333L-00-00

Unavailable

5

GASKET, FLASHER LENS

3D8-83313-00-00

$7.03

6

WASHER

3D8-83348-00-00

$3.32

7

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

8

STAY, FLASHER 2

3D8-83369-00-00

$31.11

9

SCREW, PAN TAP.2 SLIT

97707-40614-00

$2.14

10

FRONT FLASHER LIGHT ASSY 2

3D8-83320-00-00

$88.17

11

BULB

1A2-84714-50-00

$11.36

12

LENS, FLASHER

3D8-83312-00-00

$10.53

13

LENS, INNER 1

3D8-8333L-00-00

Unavailable

14

GASKET, FLASHER LENS

3D8-83313-00-00

$7.03

15

WASHER

3D8-83348-00-00

$3.32

16

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

17

STAY, FLASHER 2

3D8-83369-00-00

$31.11

18

SCREW, PAN TAP.2 SLIT

97707-40614-00

$2.14

19

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

20

STAY, FLASHER 1

3D8-83318-20-00

Unavailable

21

STAY, FLASHER 2

3D8-83328-10-00

Unavailable

22

COVER, OUTER 1

3D8-23122-10-00

Unavailable

23

COLLAR

90387-06255-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-05024-00

Unavailable

25

REAR FLASHER LIGHT ASSY 1

3D8-83330-10-00

Unavailable

26

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

27

LENS, FLASHER

3D8-83312-00-00

$10.53

28

GASKET, FLASHER LENS

3D8-83313-00-00

$7.03

29

WASHER

3D8-83348-00-00

$3.32

30

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

31

STAY, FLASHER 2

3D8-83369-00-00

$31.11

32

SCREW, PAN TAP.2 SLIT

97707-40614-00

$2.14

33

REAR FLASHER LIGHT ASSY 2

3D8-83340-10-00

Unavailable

34

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

35

LENS, FLASHER

3D8-83312-00-00

$10.53

36

GASKET, FLASHER LENS

3D8-83313-00-00

$7.03

37

WASHER

3D8-83348-00-00

$3.32

38

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

39

STAY, FLASHER 2

3D8-83369-00-00

$31.11

40

SCREW, PAN TAP.2 SLIT

97707-40614-00

$2.14

41

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

42

STAY, FLASHER 1

3D8-83368-00-00

Unavailable

43

BOLT

90111-06031-00

Unavailable
