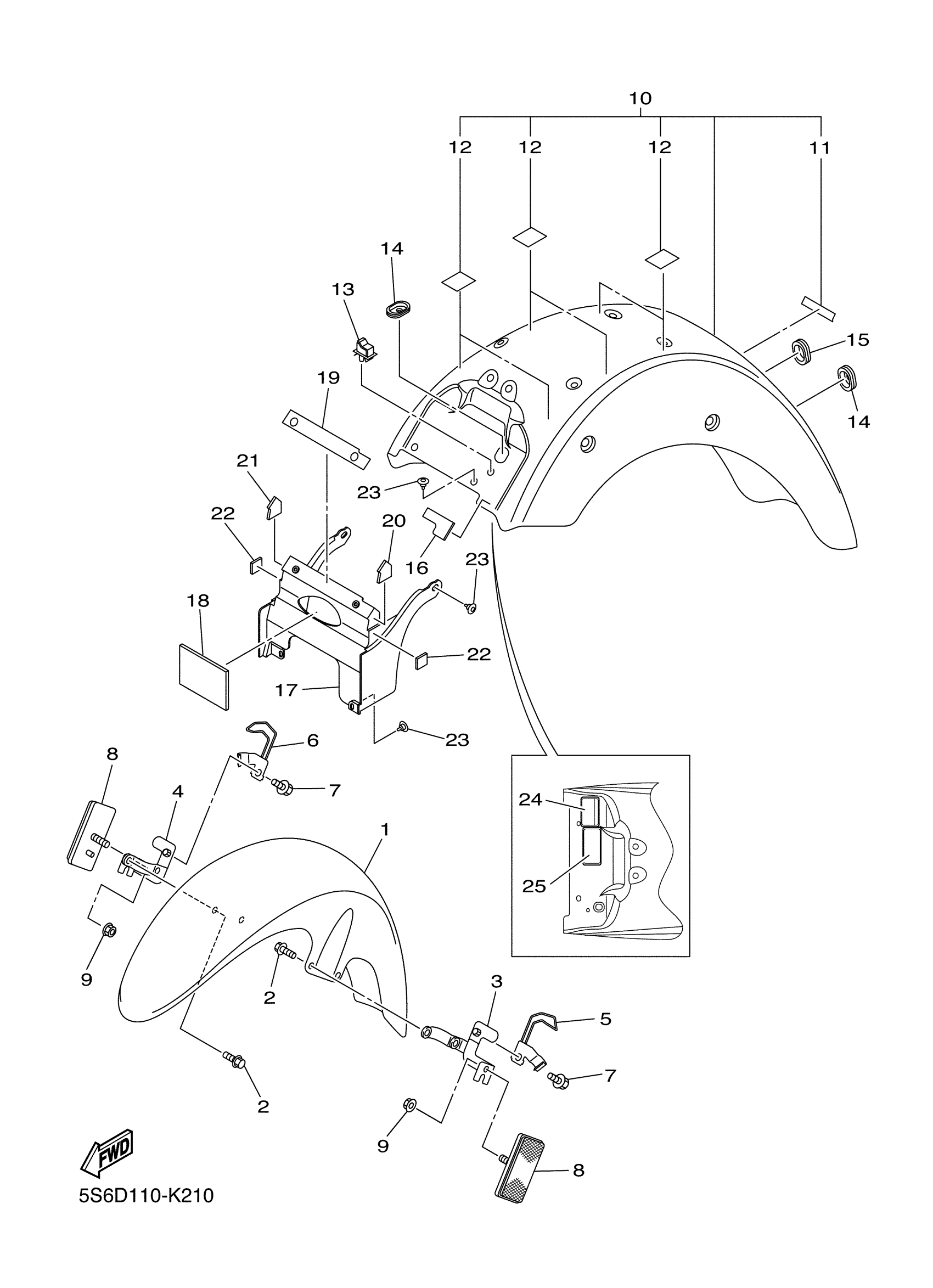

Yamaha XVS13CTAR (V STAR 1300 TOURER) 5S6D 2011 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

3D8-21510-01-P1

Unavailable

2

BOLT, FLANGE

95812-08020-00

$2.80

3

STAY 1

3D8-21587-00-00

Unavailable

4

STAY 2

3D8-21588-00-00

Unavailable

5

HOLDER,WIRE 1

3D8-21597-00-00

Unavailable

6

HOLDER, WIRE 2

3D8-21598-00-00

Unavailable

7

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

8

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

9

NUT, FLANGE(3GM)

95707-05500-00

$8.49

10

REAR FENDER ASSY

3D8-W216R-11-P1

Unavailable

11

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

12

SEAL

5PX-21669-01-00

$11.99

13

CLAMP (1J7)

90464-16021-00

$12.49

14

GROMMET

90480-01015-00

$7.49

15

PLUG

90338-20004-00

$7.49

16

DAMPER

3D8-21747-00-00

Unavailable

17

GUARD, MUD

3D8-21629-00-P2

Unavailable

18

FLAP

3D8-21621-00-00

Unavailable

19

DAMPER 1

3D8-21638-00-00

Unavailable

20

DAMPER 2

3D8-21639-00-00

Unavailable

21

DAMPER

3D8-21649-00-00

Unavailable

22

PROTECTOR

3D8-21652-00-00

Unavailable

23

RIVET(4PH)

90269-07077-00

Unavailable

24

PLATE, ROUTING 2

5PX-21686-00-00

Unavailable

25

LABEL, TIRE

1D7-21668-00-00

Unavailable
