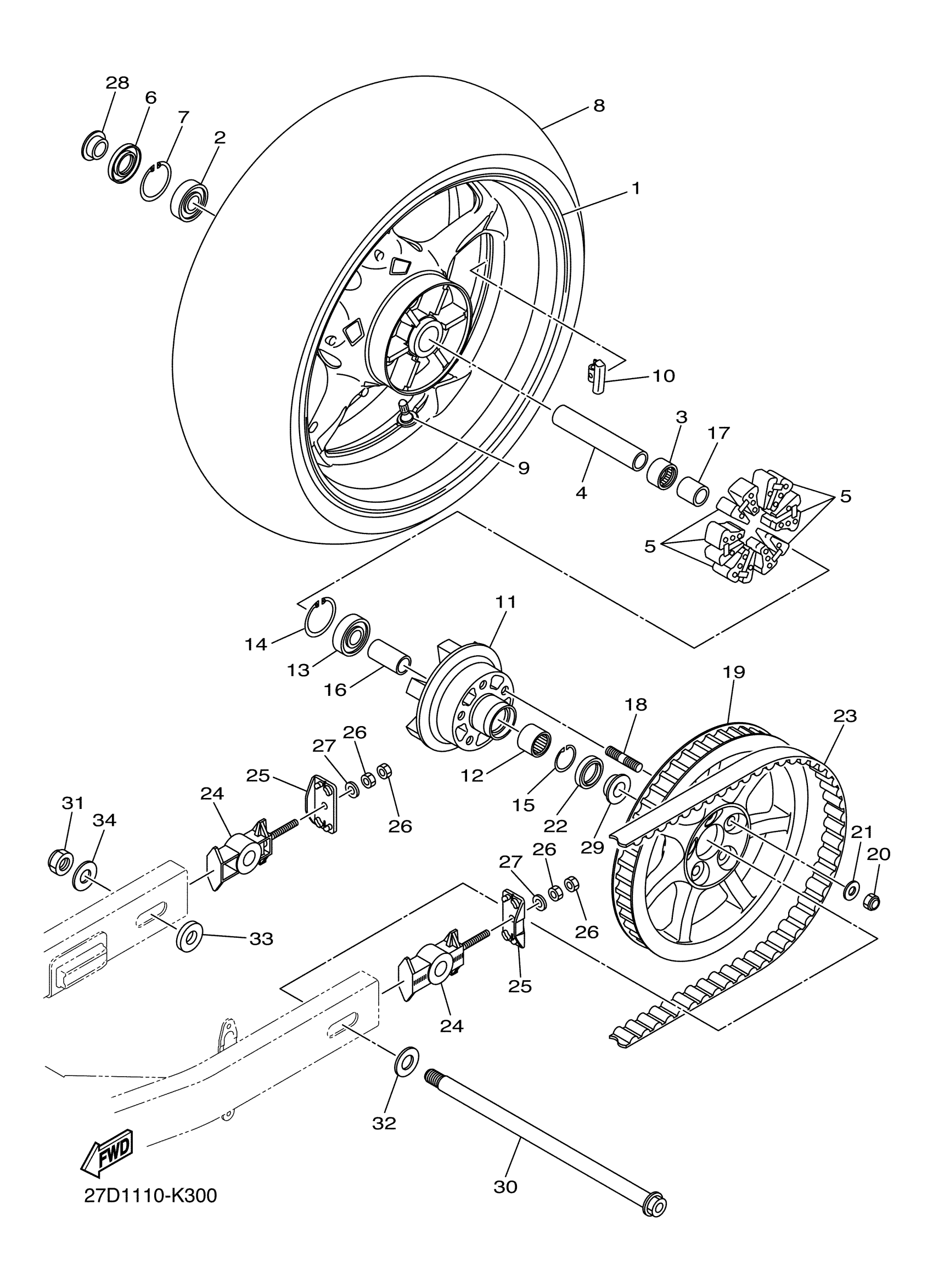

Yamaha XVS13CGO (STRYKER) 1GPK 2016 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
27D-25338-01-0X
Unavailable
6
OIL SEAL
93106-28001-00
Unavailable
8
TIRE (210/40R18M/C 73H EXEDRA)
94121-18015-00
Unavailable
10
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
11
CLUTCH, HUB
27D-25366-00-00
Unavailable
15
CIRCLIP
93450-35163-00
Unavailable
16
COLLAR, WHEEL
27D-25376-00-00
Unavailable
17
COLLAR, WHEEL
1D7-25383-00-00
Unavailable
18
BOLT, STUD
95612-12630-00
Unavailable
19
SPROCKET, DRIVEN (70T)
3D8-25470-01-00
Unavailable
20
NUT, U
95614-12100-00
Unavailable
21
WASHER, PLATE
90201-12045-00
Unavailable
22
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
23
BELT
3D8-46241-01-00
Unavailable
24
PULLER, CHAIN 1
5S7-25388-00-00
Unavailable
25
PLATE 1
5S7-2539F-00-00
Unavailable
26
NUT(2UJ)
95304-08600-00
Unavailable
27
.. WASHER, PLATE
92990-08600-00
Unavailable
28
COLLAR
90387-20033-00
Unavailable
29
COLLAR(3BC)
90387-202X9-00
Unavailable
30
AXLE, WHEEL
5S7-25381-00-00
Unavailable
31
NUT, SELF-LOCKING
90185-18009-00
Unavailable
32
WASHER, PLATE
90201-20029-00
Unavailable
33
COLLAR, CALIPER
27D-2583B-00-00
Unavailable
34
WASHER, PLATE
90201-18029-00
Unavailable
