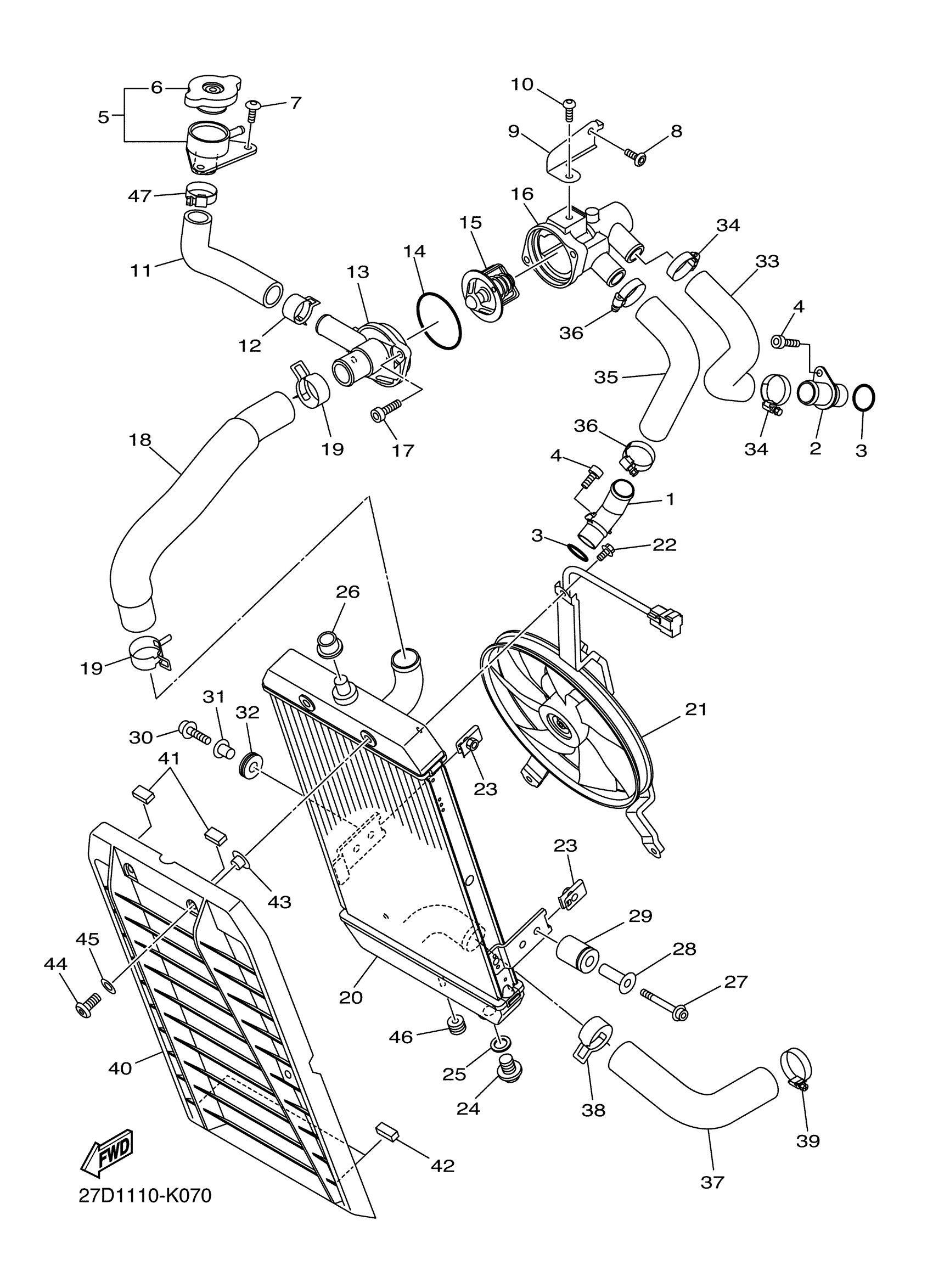

Yamaha XVS13CGO (STRYKER) 1GPK 2016 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 1

3D8-12481-00-00

Unavailable

2

PIPE 2

3D8-12482-00-00

Unavailable

3

O-RING (716)

93210-18417-00

$7.49

4

BOLT (33M)

91312-06014-00

$5.60

5

CONDUCTION ASSY

4GG-12590-00-00

Unavailable

6

CAP, RADIATOR

4FL-12462-00-00

$62.99

7

BOLT,HEX. SOCKET BUTTON

90111-06083-00

$7.49

8

SCREW(3XV)

90149-06298-00

$5.60

9

BRACKET 1

27D-1244E-00-00

Unavailable

10

BOLT, BUTTON HEAD

92012-06010-00

$4.30

11

HOSE 6

27D-12589-00-00

Unavailable

12

CLIP

90467-230A1-00

$3.71

13

COVER, THERMOSTAT

27D-12413-00-00

Unavailable

14

O-RING (620)

93210-49046-00

$7.49

15

THERMOSTAT ASSY

1AE-12410-01-00

Unavailable

16

HOUSING, THERMOSTAT

27D-12417-00-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

HOSE 4

27D-12579-00-00

Unavailable

19

CLIP

90467-280A1-00

Unavailable

20

RADIATOR ASSY

3D8-12461-10-00

Unavailable

21

BLOWER ASSY

3D8-12405-10-00

Unavailable

22

BOLT, BLOWER HOLDING

3D8-12675-00-00

Unavailable

23

PLATE

3D8-12535-00-00

Unavailable

24

PLUG,DRAIN COCK

1AA-12561-00-00

Unavailable

25

GASKET

1AA-12435-00-00

Unavailable

26

GROMMET

90480-20003-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06261-00

Unavailable

28

COLLAR

90387-0614X-00

Unavailable

29

DAMPER, RADIATOR

27D-12465-00-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-06263-00

Unavailable

31

COLLAR 437216330000

90387-07391-00

Unavailable

32

GROMMET, ANODE

27D-11328-00-00

Unavailable

33

HOSE 1

27D-12576-01-00

Unavailable

34

HOSE CLAMP ASSY

90450-28001-00

Unavailable

35

HOSE 3

27D-12578-01-00

Unavailable

36

HOSE CLAMP ASSY

90450-28001-00

Unavailable

37

HOSE 5

3D8-12588-00-00

Unavailable

38

CLIP

90467-280A1-00

Unavailable

39

HOSE CLAMP ASSY

90450-35001-00

Unavailable

40

COVER, RADIATOR

3D8-12467-00-00

Unavailable

41

DAMPER 1

3D8-21541-00-00

Unavailable

42

DAMPER, RADIATOR

3D8-12465-00-00

Unavailable

43

COLLAR

90387-08076-00

Unavailable

44

BOLT

90111-06041-00

Unavailable

45

WASHER, PLATE

90201-06096-00

Unavailable

46

GROMMET

90480-08003-00

Unavailable

47

HOSE CLAMP ASSY

90450-28001-00

Unavailable
