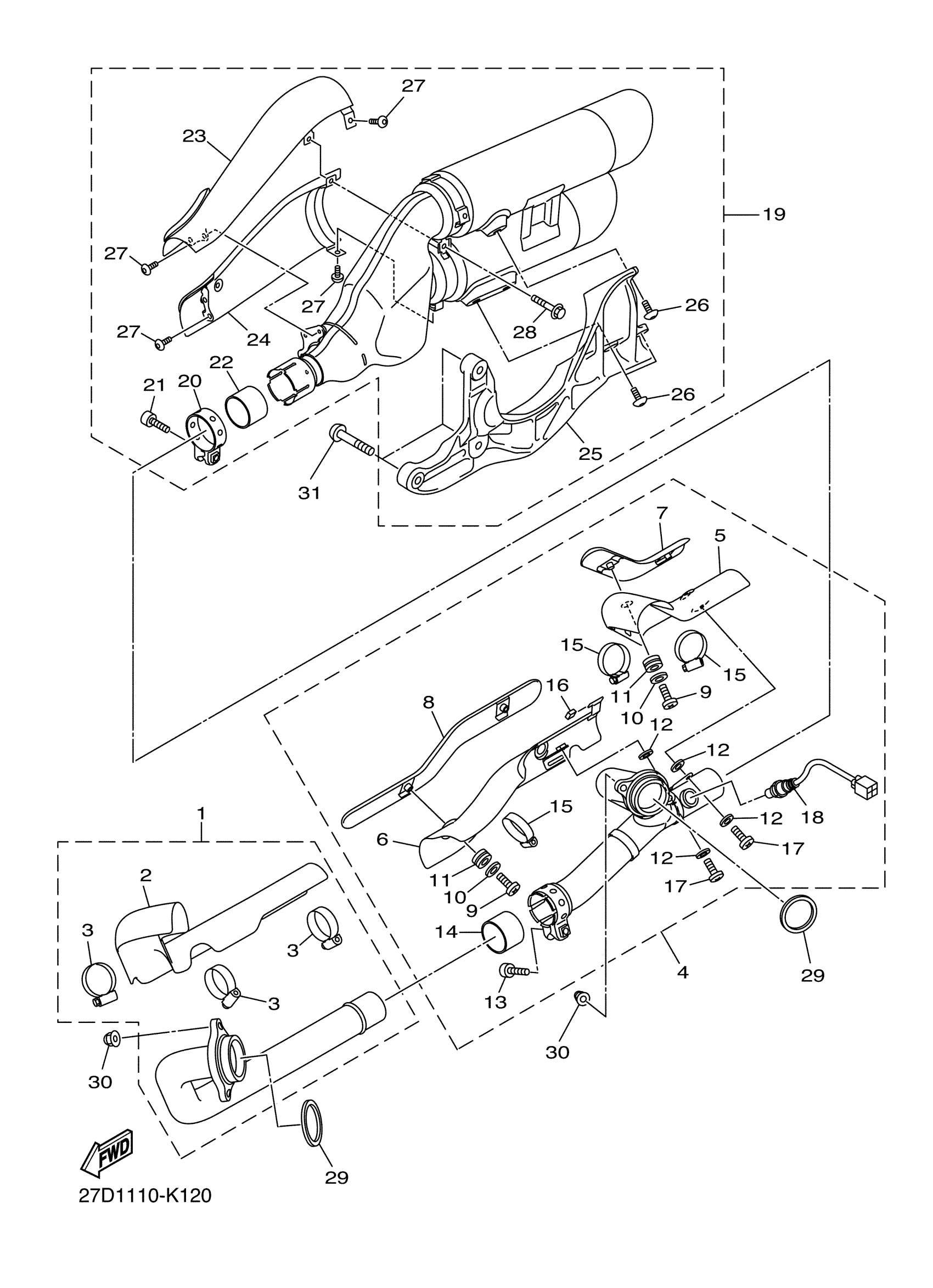

Yamaha XVS13CGO (STRYKER) 1GPK 2016 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

1GP-14610-00-00

$340.99

2

PROTECTOR, MUFFLER 1

1GP-14718-00-00

Unavailable

3

HOSE CLAMP ASSY

90450-44001-00

$16.99

4

EXHAUST PIPE ASSY 2

1GP-14620-00-00

Unavailable

5

PROTECTOR, MUFFLER 2

1GP-14728-00-00

$251.99

6

PROTECTOR, MUFFLER 3

1GP-14738-00-00

Unavailable

7

PROTECTOR, MUFFLER 4

1GP-14748-00-00

Unavailable

8

PROTECTOR, EXHAUST PIPE

1GP-14628-00-00

Unavailable

9

SCREW, BIND(J45)

98980-06012-00

$8.49

10

WASHER, PLATE(1JK)

90201-064K6-00

$9.49

11

GROMMET

90480-17005-00

$5.60

12

WASHER, PLATE

90201-05015-00

$8.49

13

BOLT, SOCKET

91314-08035-00

$2.22

14

GASKET, SILENCER

5PX-14755-00-00

$29.99

15

HOSE CLAMP ASSY

90450-44001-00

$16.99

16

DAMPER, LOCATING 1

3MA-24181-00-00

Unavailable

17

SCREW, BIND (705)

98980-06016-00

Unavailable

18

SENSOR

5D1-8592A-00-00

Unavailable

19

MUFFLER ASSY 1

1GP-14710-01-00

Unavailable

20

BAND, MUFFLER

3D8-14715-00-00

Unavailable

21

BOLT, SOCKET

91314-08035-00

$2.22

22

GASKET, MUFFLER

5VY-14714-00-00

Unavailable

23

PROTECTOR, SILENCER 2

1GP-147A8-10-00

Unavailable

24

PROTECTOR, SILENCER

1GP-14758-10-00

Unavailable

25

STAY, MUFFLER 2

27D-14772-00-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-08043-00

Unavailable

27

BOLT, BUTTON HEAD

92014-06010-00

Unavailable

28

BOLT, FLANGE

95817-06035-00

Unavailable

29

GASKET, EXHAUST PIPE

3EG-14613-00-00

Unavailable

30

NUT, CROWN

90176-08006-00

Unavailable

31

BOLT,HEX. SOCKET BUTTON

90111-10032-00

Unavailable
