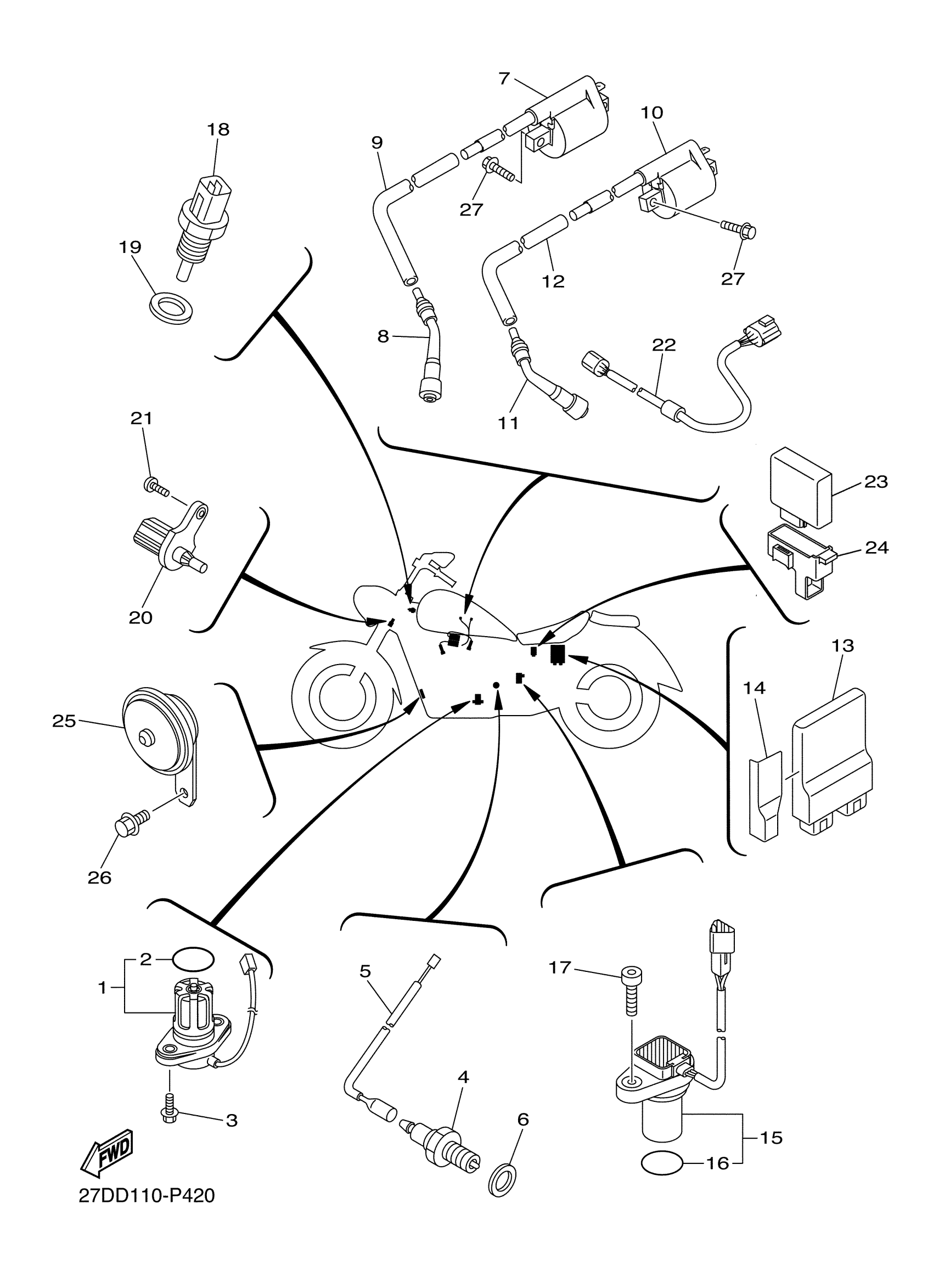

Yamaha XVS13CGO (STRYKER) 1GPK 2016 ELECTRICAL 1 Diagram

#

Description
Price

1

OIL LEVEL GAUGE ASSY

27D-85720-00-00

Unavailable

2

O-RING

5VY-8A8E0-00-00

$14.49

3

BOLT, FLANGE

95022-06016-00

$3.62

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

5

WIRE, SUB LEAD

3D8-82509-00-00

Unavailable

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

IGNITION COIL ASSY

1B9-82310-03-00

$46.99

8

PLUG CAP ASSY

3D8-82370-00-00

$90.99

9

HOSE

27D-82353-00-00

$9.99

10

IGNITION COIL ASSY

1S4-82310-03-00

Unavailable

11

PLUG CAP ASSY

3D8-82370-00-00

$90.99

12

HOSE

27D-82353-10-00

Unavailable

13

ENGINE CONTROL UNIT ASSY

27D-8591A-00-00

Unavailable

14

DAMPER, LOCATING 3

3D8-2177M-00-00

$0.99

15

Sensor Speed

3D8-83755-01-00

Unavailable

16

O-RING

4D9-81168-00-00

Unavailable

17

BOLT, SOCKET

91314-06016-00

Unavailable

18

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

19

WASHER, PLATE

90201-12790-00

Unavailable

20

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

21

SCREW, PAN

98517-05012-00

Unavailable

22

WIRE, SUB LEAD

27D-82509-00-00

Unavailable

23

FLASHER CONT. UNIT ASSY

1US-83400-00-00

Unavailable

24

BAND

1US-85546-00-00

Unavailable

25

HORN

3D8-83371-00-00

Unavailable

26

BOLT, WASHER BASED

90105-082A5-00

Unavailable

27

BOLT, FLANGE

90105-06127-00

Unavailable
