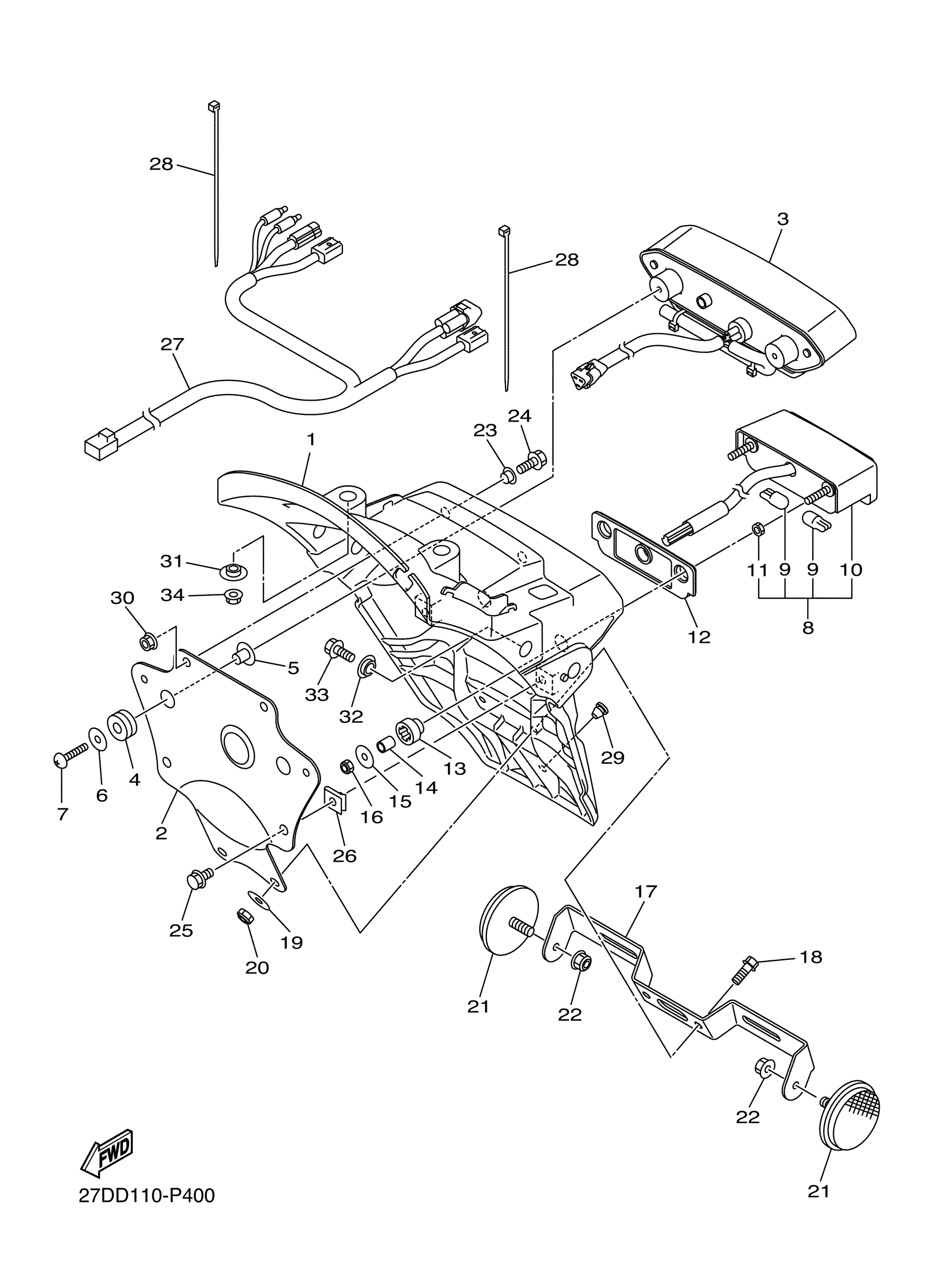

Yamaha XVS13CGGY (STRYKER BULLET COWL) BJ31 2016 TAILLIGHT Diagram

#

Description
Price

1

BASE, TAILLIGHT

27D-84711-00-00

Unavailable

2

BRACKET, TAILLIGHT

27D-2117E-00-00

$37.99

3

TAILLIGHT UNIT ASSY

27D-84710-00-00

$210.99

4

GROMMET (431)

90480-14052-00

$5.60

5

COLLAR

90387-06271-00

$4.56

6

WASHER PLATE 829771780000

90201-05033-00

$10.49

7

SCREW, TRUSS TAP.

97707-50025-00

$8.49

8

LICENCE LIGHT UNIT ASSY

27D-84745-00-00

$167.99

9

BULB

5PX-84744-00-00

$3.22

10

BODY, LICENCE LIGHT

5PX-84749-00-00

$83.99

11

NUT, SPECIAL

5PX-84748-00-00

Unavailable

12

SEAT, BASE

5PX-84742-00-00

$7.99

13

DAMPER

3F9-84553-00-00

Unavailable

14

COLLAR (420)

90387-06241-00

$8.49

15

WASHER, PLATE

90201-05025-00

$5.60

16

NUT, U

95617-05100-00

Unavailable

17

BRACKET, LICENSE

5C7-84751-00-00

Unavailable

18

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

19

WASHER, PLATE

90201-06380-00

Unavailable

20

NUT, SELF-LOCKING

95617-06100-00

Unavailable

21

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

22

NUT, S/L FLANGE

95607-05200-00

Unavailable

23

COLLAR

90387-0611K-00

Unavailable

24

BOLT, FLANGE

95817-06016-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

NUT, SPRING(4ES)

90183-06069-00

Unavailable

27

CORD, TAILLIGHT

27D-84717-10-00

Unavailable

28

CLAMP

5Y9-12491-00-00

Unavailable

29

PLUG(1NL)

90338-07180-00

Unavailable

30

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

31

COLLAR

90387-06153-00

Unavailable

32

COLLAR

90387-08079-00

Unavailable

33

BOLT, FLANGE

90105-06066-00

Unavailable

34

NUT, U FLANGE

95604-06200-00

Unavailable
