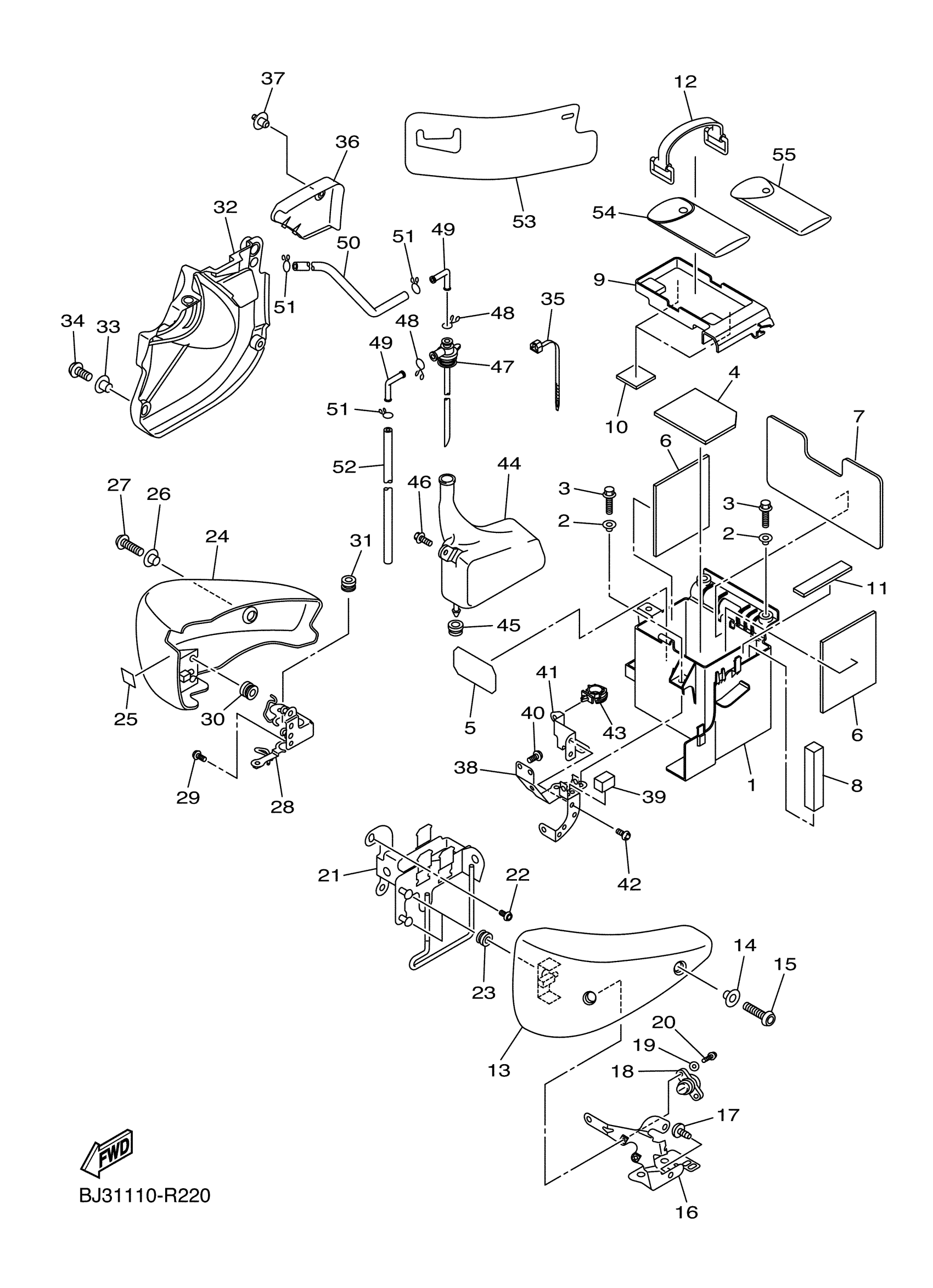

Yamaha XVS13CGGY (STRYKER BULLET COWL) BJ31 2016 SIDE COVER Diagram
#
2
COLLAR
90387-06267-00
Unavailable
5
PROTECTOR
5PX-21652-00-00
Unavailable
8
DAMPER, LOCATING 2
3D8-21779-00-00
Unavailable
9
BOX, TOOL
3D8-28173-10-00
Unavailable
13
COVER, SIDE 1
3D8-21711-01-PD
Unavailable
16
BRACKET 1
3D8-2175T-00-00
Unavailable
17
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
18
ROTOR SET
5PX-W2470-00-00
Unavailable
19
WASHER, PLATE
90201-06034-00
Unavailable
20
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
21
BRACKET 3
27D-2172M-00-00
Unavailable
22
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
23
GROMMET(3VD)
90480-12550-00
Unavailable
24
COVER, SIDE 2
3D8-21721-00-PD
Unavailable
25
PROTECTOR
3MA-27491-00-00
Unavailable
27
BOLT
90111-06038-00
Unavailable
28
BRACKET 4
27D-2172N-00-00
Unavailable
29
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
30
GROMMET(3VD)
90480-12550-00
Unavailable
31
GROMMET(3AK)
90480-18495-00
Unavailable
32
COVER, SIDE 4
3D8-21741-10-00
Unavailable
33
COLLAR
90387-06184-00
Unavailable
34
BOLT
90111-06038-00
Unavailable
35
CLAMP(4FM)
90464-15195-00
Unavailable
36
PLATE
3D8-2176E-10-00
Unavailable
37
RIVET(4PH)
90269-07077-00
Unavailable
38
BRACKET 1
3D8-2172K-01-00
Unavailable
39
DAMPER, LOCATING 1
3D8-21778-00-00
Unavailable
40
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
41
BRACKET 2
3D8-2172L-00-00
Unavailable
42
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
43
CLAMP
90464-17008-00
Unavailable
44
TANK, RECOVERY
3D8-21871-00-00
Unavailable
45
GROMMET(4FU)
90480-13567-00
Unavailable
46
BOLT, WITH WASHER
90119-06137-00
Unavailable
47
CAP
3D8-21875-00-00
Unavailable
48
CLIP(72X)
90467-11M08-00
Unavailable
49
ELBOW
26H-21828-00-00
Unavailable
50
PIPE, BREATHER
27D-21826-00-00
Unavailable
51
CLIP 101235600
90467-08003-00
Unavailable
52
HOSE (L420)
90445-092K1-00
Unavailable
53
COVER
27D-24796-00-00
Unavailable
54
TOOL KIT
27D-28100-00-00
Unavailable
55
TOOL KIT 2
3D8-28110-01-00
Unavailable
