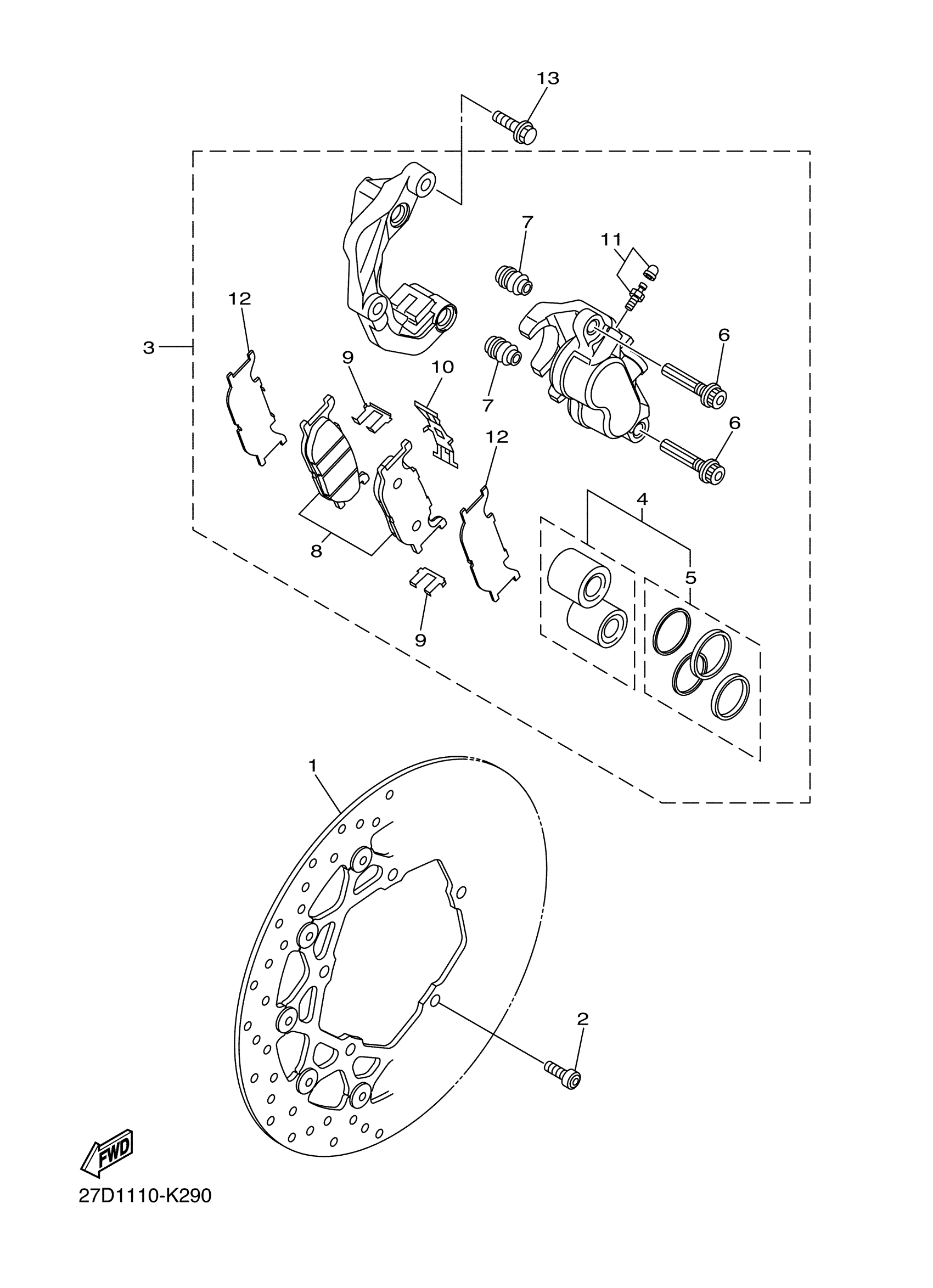

Yamaha XVS13CGGY (STRYKER BULLET COWL) BJ31 2016 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

5D0-2581T-10-00

$262.91

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$1.91

3

CALIPER ASSY (LEFT)

27D-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

3YX-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

3JB-25803-00-00

$36.93

6

PIN, SLIDE

5JW-25914-10-00

$17.93

7

BOOT 2

4TT-25937-00-00

$13.33

8

BRAKE PAD KIT

5S7-25805-00-00

Unavailable

9

SUPPORT, PAD

4BP-25919-00-00

$27.53

10

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

11

BLEED SCREW KIT

15B-W0048-00-00

$16.89

12

SHIM, CALIPER

4DN-25827-00-00

Unavailable

13

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80
