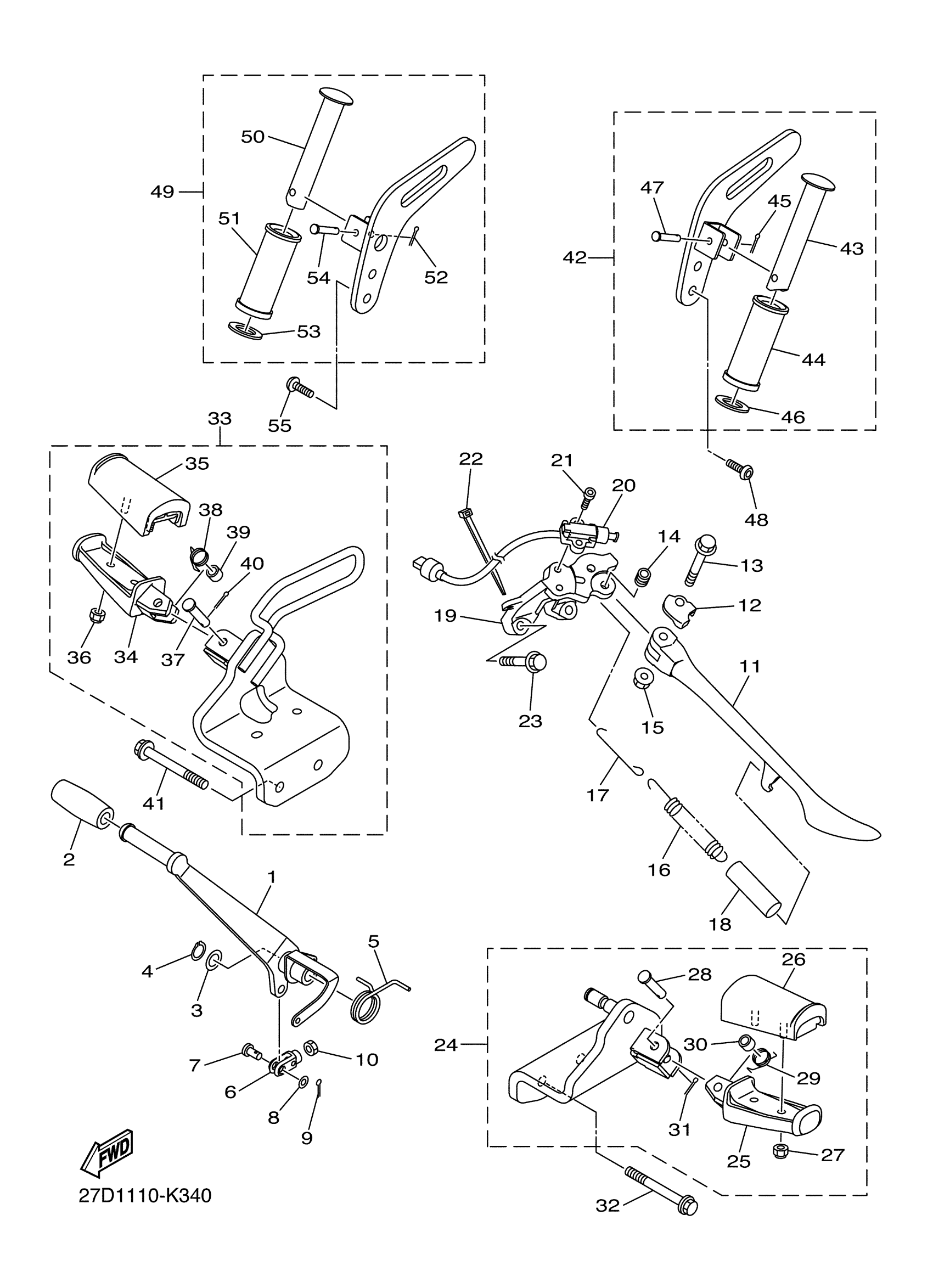

Yamaha XVS13CFS (STRYKER) 1GPG 2015 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

27D-27211-00-00

$128.99

2

COVER, SHIFT PEDAL

5VN-18113-00-00

$15.49

3

WASHER, PLATE (5K7)

90201-124E4-00

$9.49

4

CIRCLIP(10Y)

99009-12400-00

$3.59

5

SPRING, RETURN

27D-27216-00-00

$14.49

6

JOINT

4FM-27222-00-00

$23.99

7

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

8

WASHER, PLATE 1562722600

90201-08083-00

$9.49

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

NUT, HEXAGON SMALL

95317-08700-00

$9.49

11

STAND, SIDE

5S7-27311-00-00

Unavailable

12

WASHER

5S7-27322-00-00

Unavailable

13

BOLT, FLANGE

90105-10315-00

$9.49

14

COLLAR(3XP)

90387-1003G-00

$21.99

15

NUT, SELF-LOCKING

90185-10008-00

$7.49

16

SPRING, TENSION

90506-35007-00

Unavailable

17

LINK, SIDE STAND

3D8-27315-00-00

Unavailable

18

HOSE (L70)

90445-22327-00

Unavailable

19

BRACKET, SIDE STAND

3D8-27321-00-00

Unavailable

20

SWITCH, SIDE STAND

27D-82566-30-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-05025-00

Unavailable

22

BAND

1UA-82591-00-00

Unavailable

23

BOLT, FLANGE

90105-10158-00

Unavailable

24

FRONT FOOTREST ASSY (LEFT)

27D-27410-10-00

Unavailable

25

FOOTREST

1NH-27451-00-00

Unavailable

26

COVER, FOOTREST

4VR-27413-00-00

Unavailable

27

NUT, SELF-LOCKING

95617-06100-00

Unavailable

28

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

29

SPRING, TORSION(1MY)

90508-18696-00

Unavailable

30

COLLAR(1HX)

90387-087K5-00

Unavailable

31

PIN, COTTER

91490-25020-00

Unavailable

32

BOLT, FLG.(SMALL HEAD)

95024-10070-00

Unavailable

33

FRONT FOOTREST ASSY (RIGHT)

27D-27420-00-00

Unavailable

34

FOOTREST

1NH-27461-00-00

Unavailable

35

COVER, FOOTREST

4VR-27413-00-00

Unavailable

36

NUT, SELF-LOCKING

95617-06100-00

Unavailable

37

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

38

SPRING, TORSION(1MY)

90508-18696-00

Unavailable

39

COLLAR(1HX)

90387-087K5-00

Unavailable

40

PIN, COTTER

91490-25020-00

Unavailable

41

BOLT, FLG.(SMALL HEAD)

95024-10080-00

Unavailable

42

REAR FOOTREST ASSY 1

27D-27430-00-00

Unavailable

43

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

44

COVER, REAR FOOTREST

5S7-27433-00-00

Unavailable

45

PIN, COTTER (648)

91490-20015-00

$2.20

46

WASHER, PLATE (888)

90201-20279-00

Unavailable

47

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

48

BOLT,HEX. SOCKET BUTTON

90111-08045-00

Unavailable

49

REAR FOOTREST ASSY 2

27D-27440-00-00

Unavailable

50

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

51

COVER, REAR FOOTREST

5S7-27433-00-00

Unavailable

52

PIN, COTTER (648)

91490-20015-00

$2.20

53

WASHER, PLATE (888)

90201-20279-00

Unavailable

54

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

55

BOLT,HEX. SOCKET BUTTON

90111-08045-00

Unavailable
