ELECTRICAL 2
2015 Yamaha Stryker (XVS13CFS) Electrical 2 Diagram

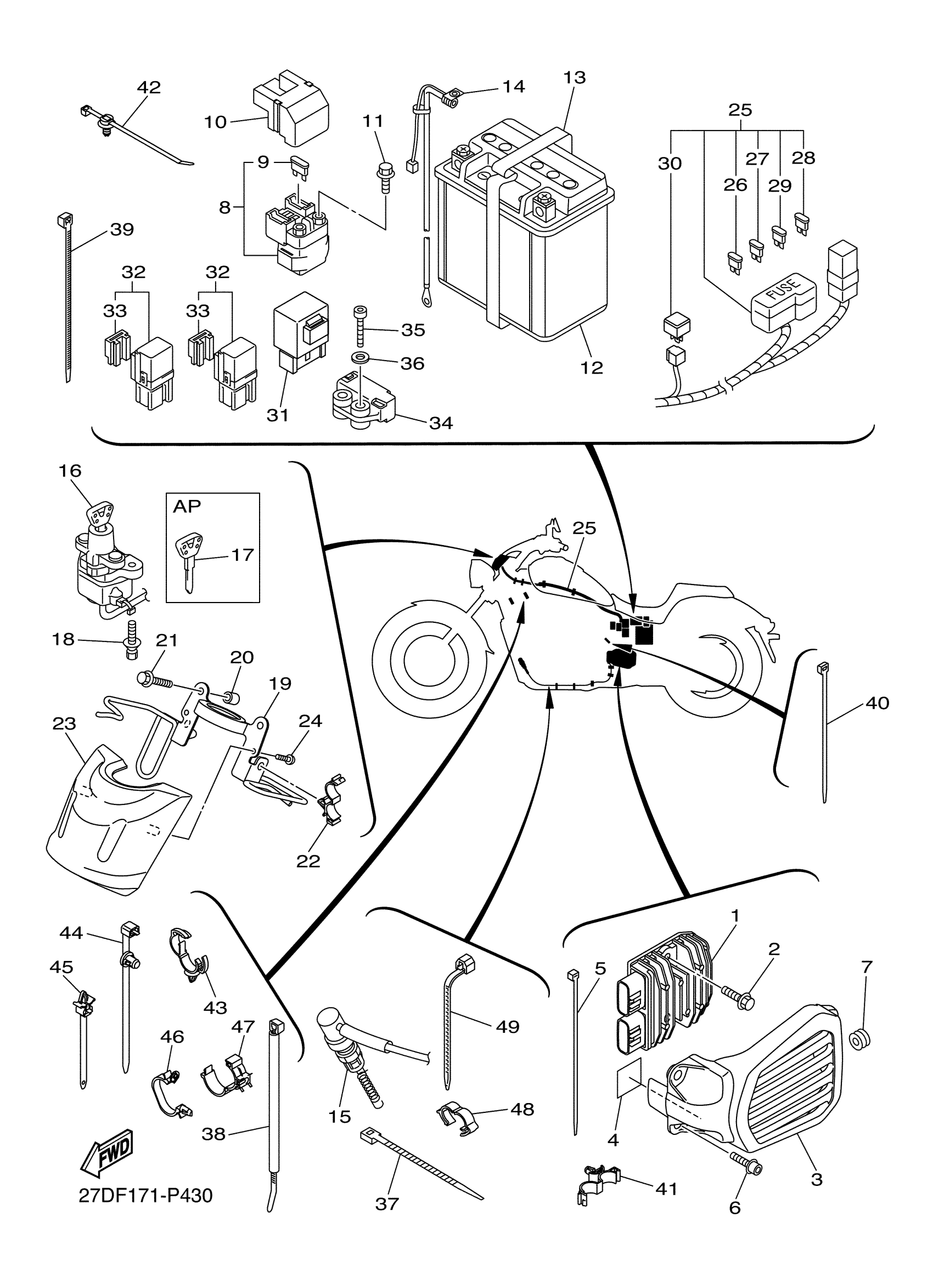

Find the part on the Electrical 2 diagram for your 2015 Yamaha Stryker (XVS13CFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
BOLT, WITH WASHER(4JX)
90119-06225-00
3
CASE, REGULATOR
3D8-21247-02-00
4
DAMPER
2GH-24185-00-00
6
BOLT, HEXAGON SOCKET HEAD
90110-06215-00
7
GROMMET(3VD)
90480-12550-00
8
STARTER RELAY ASSY (RC19-074)
3D8-81940-00-00
14
WIRE, MINUS LEAD
27D-82116-00-00
15
STOP SWITCH ASSY
27D-82530-00-00
16
MAIN SWITCH STEERING LOCK
3D8-82501-02-00
19
BRACKET 1
27D-2334G-00-00
23
COVER, MAIN SWITCH
27D-82568-00-00
25
WIRE HARNESS ASSY
27D-82590-10-00
31
RELAY ASSY
5VK-81950-33-00
32
RELAY ASSY
1TP-81950-00-00
34
SENSOR, LEAN ANGLE
5PS-82576-02-00
35
BOLT
91312-04025-00
36
WASHER, PLATE
90201-04027-00
37
BAND
1UA-82591-00-00
38
CLAMP ASSY
27D-82360-00-00
44
CLAMP
90464-40001-00
48
CLAMP
90464-16003-00
