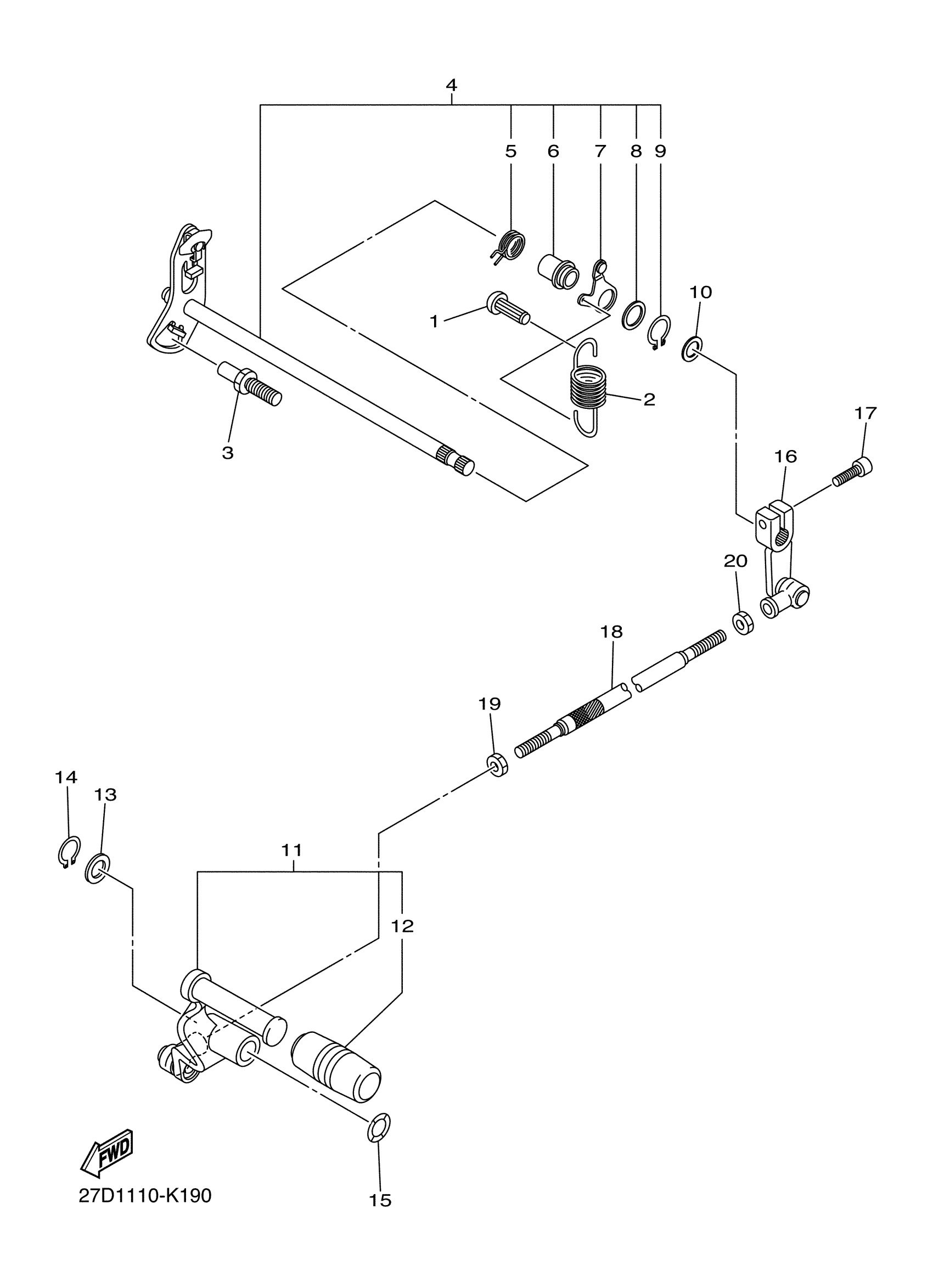

Yamaha XVS13CFR (STRYKER) 27DD 2015 SHIFT SHAFT Diagram

#

Description
Price

1

HOOK, SPRING

132-16346-00-00

$9.99

2

SPRING, TENSION

90506-18015-00

Unavailable

3

STOPPER, SCREW

5VK-18127-00-00

Unavailable

4

SHIFT SHAFT ASSY

3D8-18101-01-00

$152.99

5

SPRING, TORSION

90508-32040-00

$7.49

6

SPACER

3D8-18175-00-00

Unavailable

7

STOPPER LEVER ASSY

3D8-18140-00-00

$16.49

8

WASHER, PLATE (30X)

90201-177G4-00

$9.49

9

CIRCLIP(1EY)

99009-17400-00

$4.73

10

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

11

SHIFT PEDAL ASSY

27D-18110-00-00

Unavailable

12

COVER, SHIFT PEDAL

5VN-18113-00-00

$15.49

13

WASHER, PLATE (5K7)

90201-124E4-00

$9.49

14

CIRCLIP(10Y)

99009-12400-00

$3.59

15

WASHER, WAVE (17W)

90206-12074-00

$9.49

16

ARM, SHIFT

3D8-18112-01-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

ROD, SHIFT

3D8-18115-00-00

Unavailable

19

NUT

90170-06024-00

Unavailable

20

NUT, HEXAGON

95314-06600-00

Unavailable
