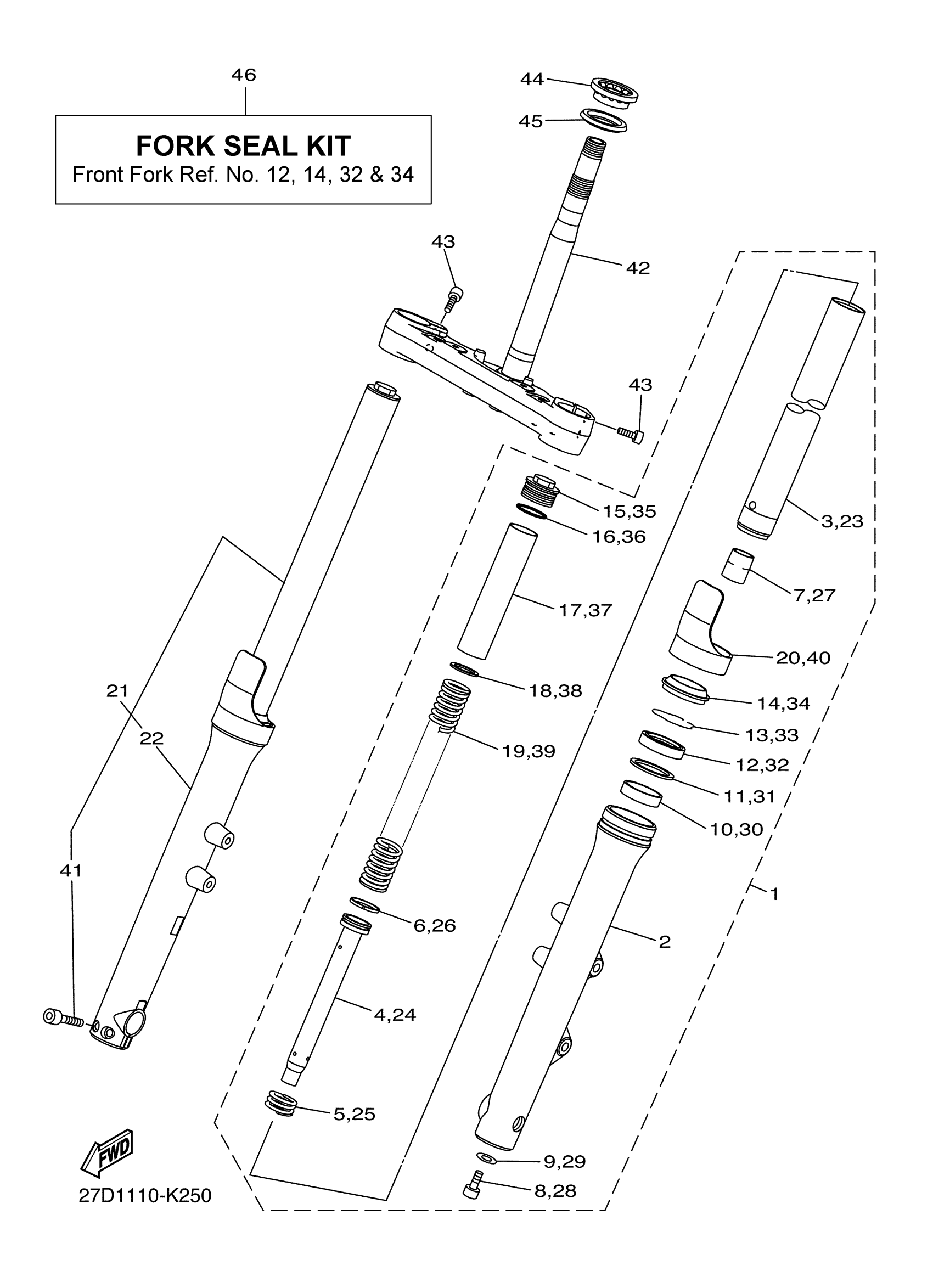

Yamaha XVS13CFR (STRYKER) 27DD 2015 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
27D-23102-01-00
Unavailable
2
TUBE, OUTER (L.H)
27D-23126-01-00
Unavailable
3
. INNER TUBE COMP 1
27D-23110-00-00
Unavailable
4
PISTON, FRONT FORK
27D-23171-00-00
Unavailable
5
. SPRING, REBOUND
3VD-23151-00-00
Unavailable
7
SPINDLE, TAPER
27D-23173-00-00
Unavailable
10
METAL, SLIDE 1
3VD-23125-10-00
Unavailable
16
O-RING(3VD)
93210-35N02-00
Unavailable
17
. SPACER
27D-23118-00-00
Unavailable
18
WASHER, PLATE (248-27226-00)
90201-25289-00
Unavailable
19
SPRING, FRONT FORK
27D-23141-00-00
Unavailable
20
COVER
4TX-2331G-00-00
Unavailable
21
FRONT FORK ASSY (R.H)
27D-23103-01-00
Unavailable
22
TUBE, OUTER (R.H)
27D-23136-01-00
Unavailable
23
. INNER TUBE COMP 1
27D-23110-00-00
Unavailable
24
PISTON, FRONT FORK
27D-23171-00-00
Unavailable
25
. SPRING, REBOUND
3VD-23151-00-00
Unavailable
27
SPINDLE, TAPER
27D-23173-00-00
Unavailable
30
METAL, SLIDE 1
3VD-23125-10-00
Unavailable
36
O-RING(3VD)
93210-35N02-00
Unavailable
37
. SPACER
27D-23118-00-00
Unavailable
38
WASHER, PLATE (248-27226-00)
90201-25289-00
Unavailable
39
SPRING, FRONT FORK
27D-23141-00-00
Unavailable
40
COVER
4TX-2331G-00-00
Unavailable
41
BOLT, SOCKET
91314-08035-00
Unavailable
42
UNDER BRACKET COMP.
27D-23340-00-00
Unavailable
43
BOLT,SOCKET
91314-10025-00
Unavailable
44
BEARING(3FV)
93399-99932-00
Unavailable
45
SEAL, STEERING
3FV-23462-00-00
Unavailable
46
FORK SEAL KIT (TWO FORKS)
5VU-W003B-00-00
Unavailable
