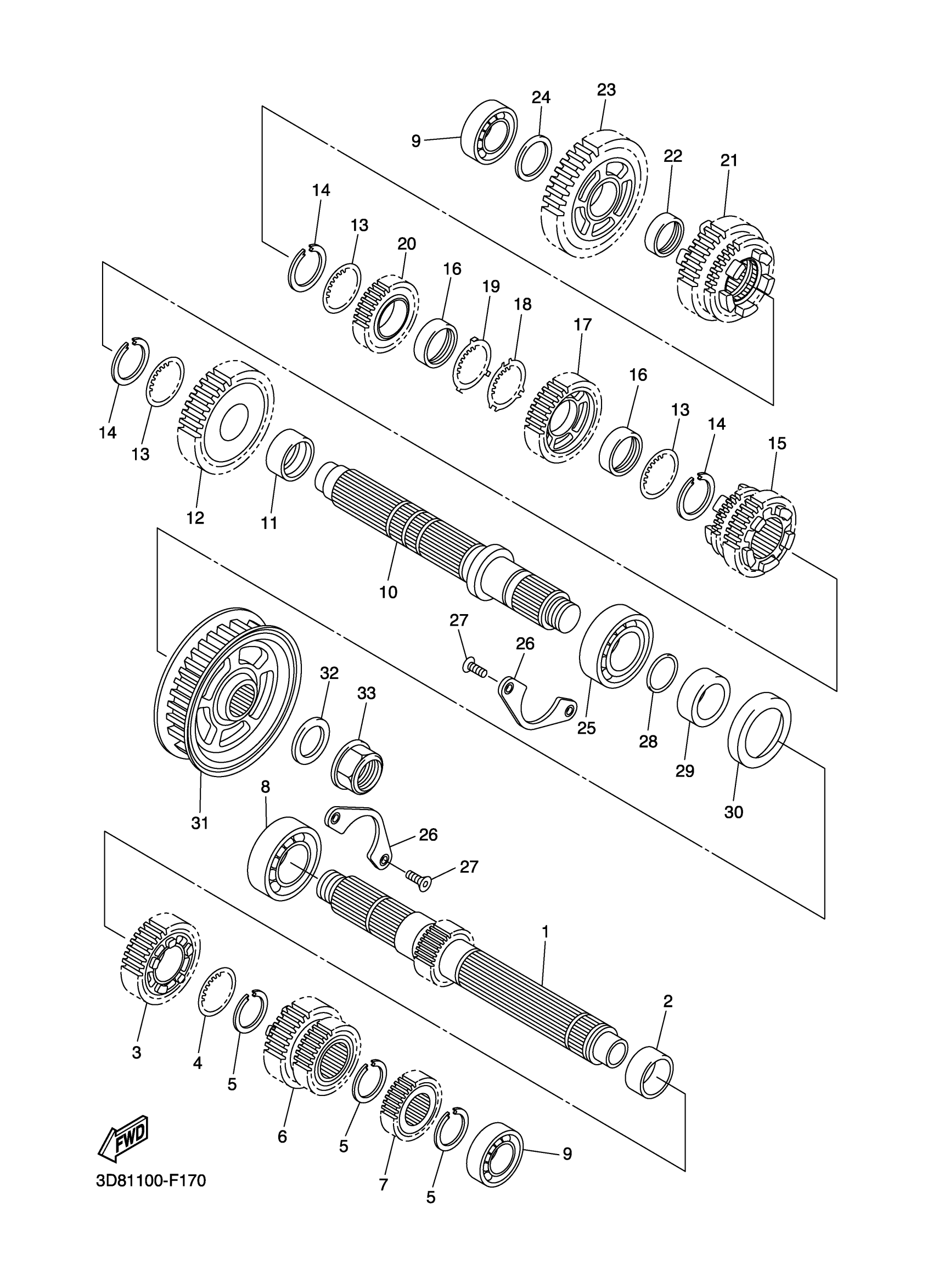

Yamaha XVS13CFGR (STRYKER BULLET COWL) 1GPD 2015 TRANSMISSION Diagram
#
Description
Price
1
AXLE, MAIN
3D8-17411-00-00
Unavailable
3
GEAR, 5TH PINION
3D8-17151-00-00
Unavailable
6
GEAR, 3RD PINION
27D-17131-00-00
Unavailable
7
GEAR, 2ND PINION
3D8-17121-00-00
Unavailable
10
AXLE, DRIVE
3D8-17421-00-00
Unavailable
12
GEAR, 2ND WHEEL
3D8-17221-00-00
Unavailable
13
WASHER
90209-28008-00
Unavailable
15
CLUTCH, DOG
3D8-17285-00-00
Unavailable
16
COLLAR
90387-28004-00
Unavailable
17
GEAR, 3RD WHEEL
3D8-17231-00-00
Unavailable
18
WASHER, CLAW
90214-29002-00
Unavailable
19
WASHER, CLAW
90214-28002-00
Unavailable
20
GEAR, 4TH WHEEL
3D8-17241-00-00
Unavailable
21
GEAR, 5TH WHEEL
3D8-17251-00-00
Unavailable
22
COLLAR
90387-25008-00
Unavailable
23
GEAR, 1ST WHEEL
3D8-17211-00-00
Unavailable
24
WASHER, PLATE(83R)
90201-224L4-00
Unavailable
25
BRG. R-B 6306 72MM 352.5GK
93306-30610-00
Unavailable
26
PLATE, BEARING COVER
3D8-15381-00-00
Unavailable
27
SCREW, COUNTERSUNK
90151-06023-00
Unavailable
28
O-RING(50M)
93210-27672-00
Unavailable
29
COLLAR
90387-30010-00
Unavailable
30
OIL SEAL
93102-45012-00
Unavailable
31
PULLEY, BELT
27D-17651-00-00
Unavailable
32
WASHER, CONICAL SPRING
90208-22004-00
Unavailable
33
NUT
90179-22016-00
Unavailable
