Description

Price

1

REAR ARM COMP.

27D-22110-00-00

Unavailable

2

SHAFT, PIVOT

27D-22141-00-00

$40.99

3

COLLAR

90387-16030-00

Unavailable

4

OIL SEAL

93108-44001-00

$7.49

5

NUT, SELF-LOCKING

90185-16002-00

$16.99

6

BEARING

93317-52897-00

$58.99

7

COLLAR

90387-16029-00

Unavailable

8

OIL SEAL

93109-28001-00

$8.49

9

ARM, RELAY

3D8-2217A-00-00

Unavailable

10

BEARING, CYLINDRICAL(2GH)

93317-42060-00

$46.99

11

COLLAR(2MF)

90387-100T8-00

Unavailable

12

BOLT, FLANGE

90105-10233-00

$8.49

13

COLLAR

90387-10049-00

Unavailable

14

WASHER, PLATE(47X)

90201-101J1-00

$8.49

15

NUT(4KG)

90179-10658-00

$9.49

16

BEARING, CYLINDRICAL(2GH)

93317-41761-00

Unavailable

17

COLLAR(2GH)

90387-126T1-00

Unavailable

18

BOLT

90101-12027-00

Unavailable

19

WASHER, PLATE

90201-12045-00

Unavailable

20

NUT, U

95612-12100-00

Unavailable

21

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

22

OIL SEAL

93109-17071-00

Unavailable

23

COLLAR(3TJ)

90387-127W0-00

Unavailable

24

ARM 1

3D8-2217M-00-00

Unavailable

25

BOLT

90109-10024-00

Unavailable

26

WASHER, PLATE

90201-10035-00

Unavailable

27

NUT, U

95617-10100-00

Unavailable

28

PROTECTOR

5PX-21652-00-00

Unavailable

29

CASE, CHAIN

5S7-22311-00-00

Unavailable

30

GROMMET

90480-13004-00

Unavailable

31

COLLAR

90387-06171-00

Unavailable

32

SCREW(4DN)

90149-06302-00

Unavailable

33

STAY, CHAIN CASE

3D8-2213J-00-00

Unavailable

34

GROMMET

90480-13004-00

Unavailable

35

COLLAR

90387-06171-00

Unavailable

36

BOLT

90111-06038-00

Unavailable

37

NUT, HEXAGON

95380-06600-00

Unavailable

38

GROMMET

90480-13004-00

Unavailable

39

WASHER, PLATE

90201-06095-00

Unavailable

40

SCREW(4DN)

90149-06302-00

Unavailable

41

CASE, CHAIN 2

3D8-22312-00-00

Unavailable

42

COLLAR

90387-06106-00

Unavailable

43

BOLT

90111-06038-00

Unavailable

44

PLATE, GUIDE 1

5S7-22341-00-00

Unavailable

45

NUT, SPRING(4ES)

90183-06069-00

Unavailable

46

SCREW(3XV)

90149-06298-00

Unavailable

47

LABEL, TIRE

27D-21668-00-00

Unavailable

48

SHOCK ABSORBER ASSY, REAR

27D-22210-00-00

Unavailable

49

BOLT

90109-10028-00

Unavailable

50

NUT(4KG)

90179-10658-00

$9.49

51

CAP

5YU-2143A-00-00

Unavailable

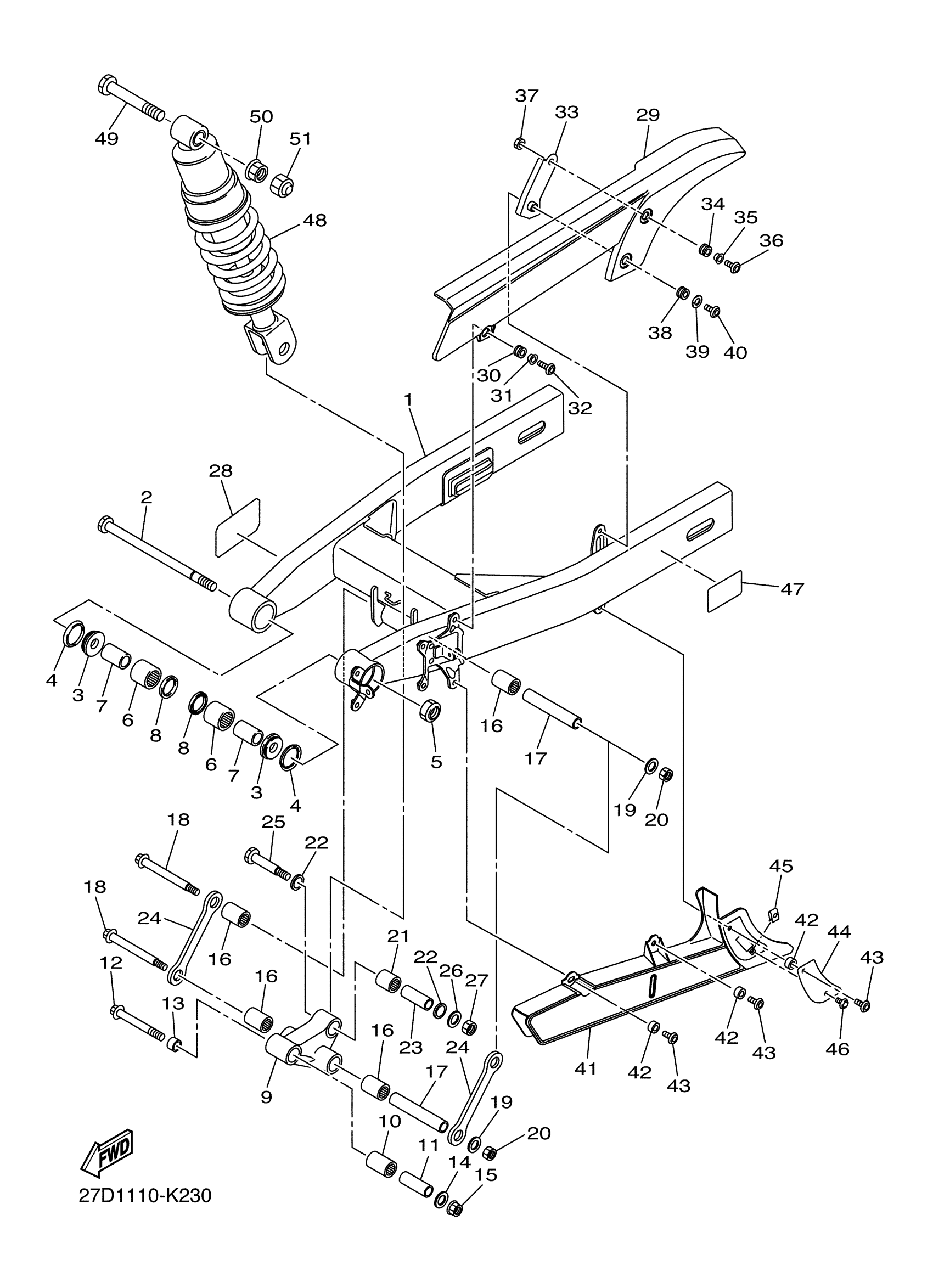

Yamaha XVS13CFGR (STRYKER BULLET COWL) 1GPD 2015 REAR ARM SUSPENSION Diagram

REAR ARM COMP.

SHAFT, PIVOT

COLLAR

OIL SEAL

NUT, SELF-LOCKING

BEARING

COLLAR

OIL SEAL

ARM, RELAY

BEARING, CYLINDRICAL(2GH)

COLLAR(2MF)

BOLT, FLANGE

COLLAR

WASHER, PLATE(47X)

NUT(4KG)

BEARING, CYLINDRICAL(2GH)

COLLAR(2GH)

BOLT

WASHER, PLATE

NUT, U

BEARING, CYLINDRICAL(3YL)

OIL SEAL

COLLAR(3TJ)

ARM 1

BOLT

WASHER, PLATE

NUT, U

PROTECTOR

CASE, CHAIN

GROMMET

COLLAR

SCREW(4DN)

STAY, CHAIN CASE

GROMMET

COLLAR

BOLT

NUT, HEXAGON

GROMMET

WASHER, PLATE

SCREW(4DN)

CASE, CHAIN 2

COLLAR

BOLT

PLATE, GUIDE 1

NUT, SPRING(4ES)

SCREW(3XV)

LABEL, TIRE

SHOCK ABSORBER ASSY, REAR

BOLT

NUT(4KG)

CAP
