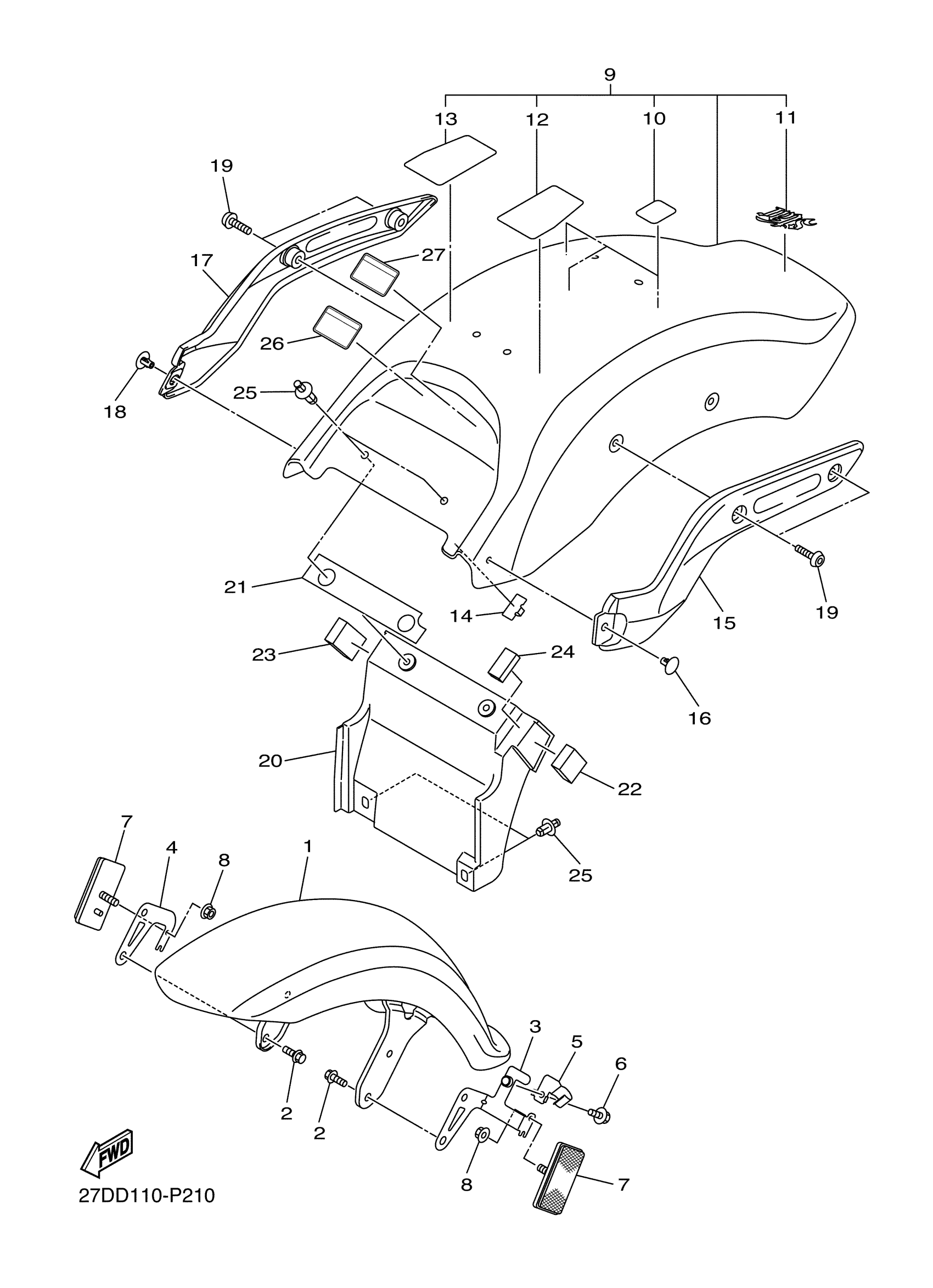

Yamaha XVS13CFGR (STRYKER BULLET COWL) 1GPD 2015 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

27D-YK215-11-V9

Unavailable

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

STAY 1

27D-21587-00-00

Unavailable

4

STAY 2

27D-21588-00-00

Unavailable

5

HOLDER, BRAKE HOSE

27D-25887-00-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

7

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

8

NUT, FLANGE(3GM)

95707-05500-00

$8.49

9

REAR FENDER COMP.

27D-W2161-40-V9

Unavailable

10

SEAL

5PX-21669-01-00

$11.99

11

EMBLEM 1

46B-2163G-10-00

$7.99

12

SEAL, 2

27D-216A2-00-00

Unavailable

13

SEAL, 3

27D-216A3-00-00

Unavailable

14

CLAMP

90465-04020-00

Unavailable

15

STAY 1

27D-2164F-10-00

$92.99

16

RIVET(4KM)

90269-05074-00

Unavailable

17

STAY 2

27D-2164G-10-00

Unavailable

18

RIVET(4KM)

90269-05074-00

Unavailable

19

BOLT

90111-08033-00

Unavailable

20

GUARD, MUD

27D-21629-00-00

Unavailable

21

DAMPER 1

3D8-21638-00-00

Unavailable

22

DAMPER, PLATE

90520-13001-00

Unavailable

23

DAMPER, PLATE

90520-13002-00

Unavailable

24

MOLE

7CF-22869-00-00

Unavailable

25

RIVET(4PH)

90269-07077-00

Unavailable

26

PLATE, ROUTING 2

5RU-21686-00-00

Unavailable

27

PLATE, ROUTING

34B-21684-00-00

Unavailable
