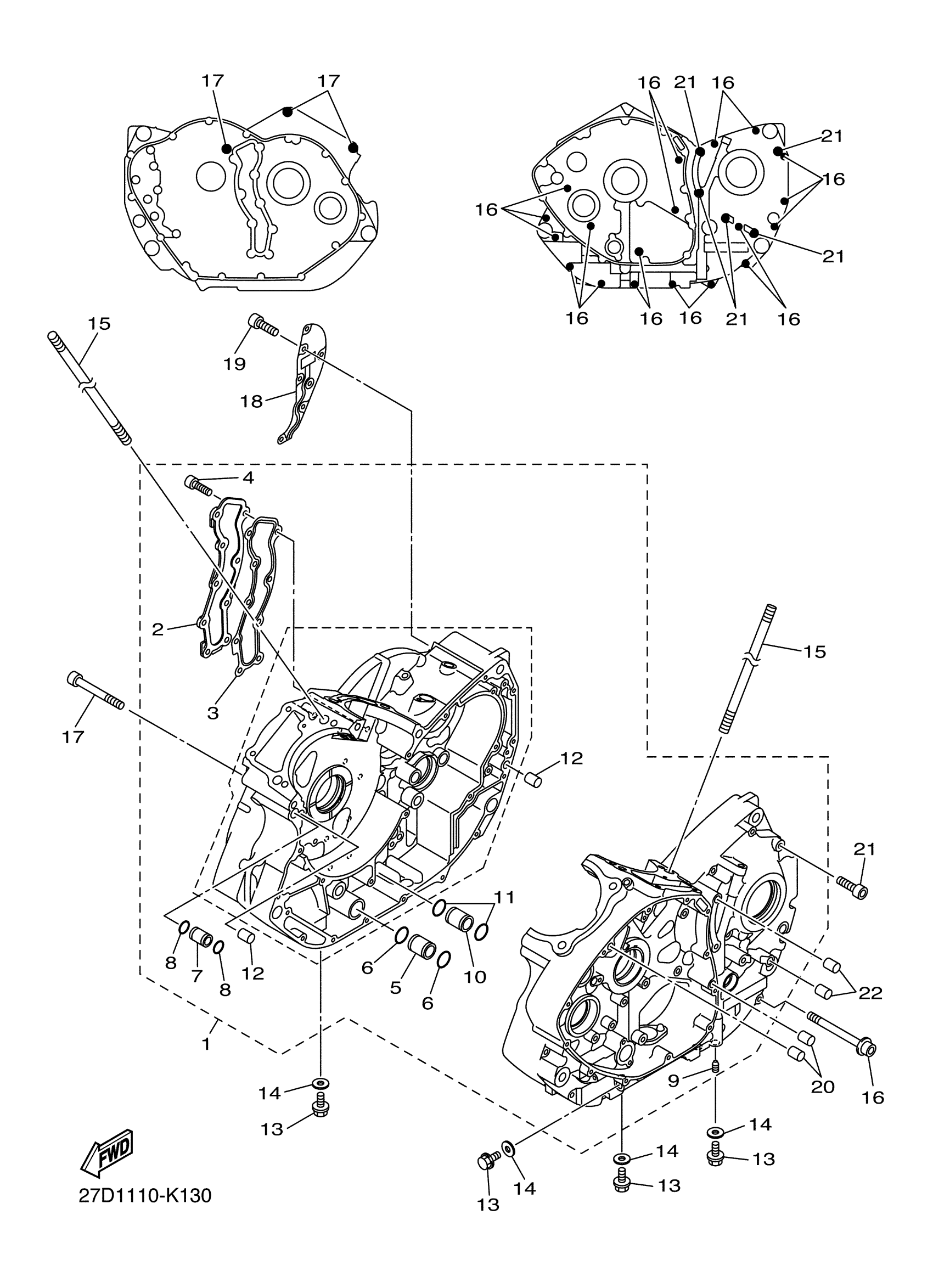

Yamaha XVS13CFGR (STRYKER BULLET COWL) 1GPD 2015 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
3D8-15100-28-00
Unavailable
2
COVER, CRANKCASE 3
3D8-15431-00-00
Unavailable
3
GASKET, CRANKCASE COVER 3
3D8-15462-00-00
Unavailable
9
NOZZLE 1
2H7-15138-00-00
Unavailable
15
BOLT, STUD
90116-12011-00
Unavailable
16
BOLT, FLANGE
90105-06144-00
Unavailable
17
BOLT
91314-10110-00
Unavailable
18
SEPERATOR, OIL
3D8-15368-00-00
Unavailable
19
BOLT,SOCKET
91317-06016-00
Unavailable
20
PIN, DOWEL
99530-08012-00
Unavailable
21
BOLT, SOCKET
91317-08035-00
Unavailable
22
PIN, DOWEL
99590-10114-00
Unavailable
