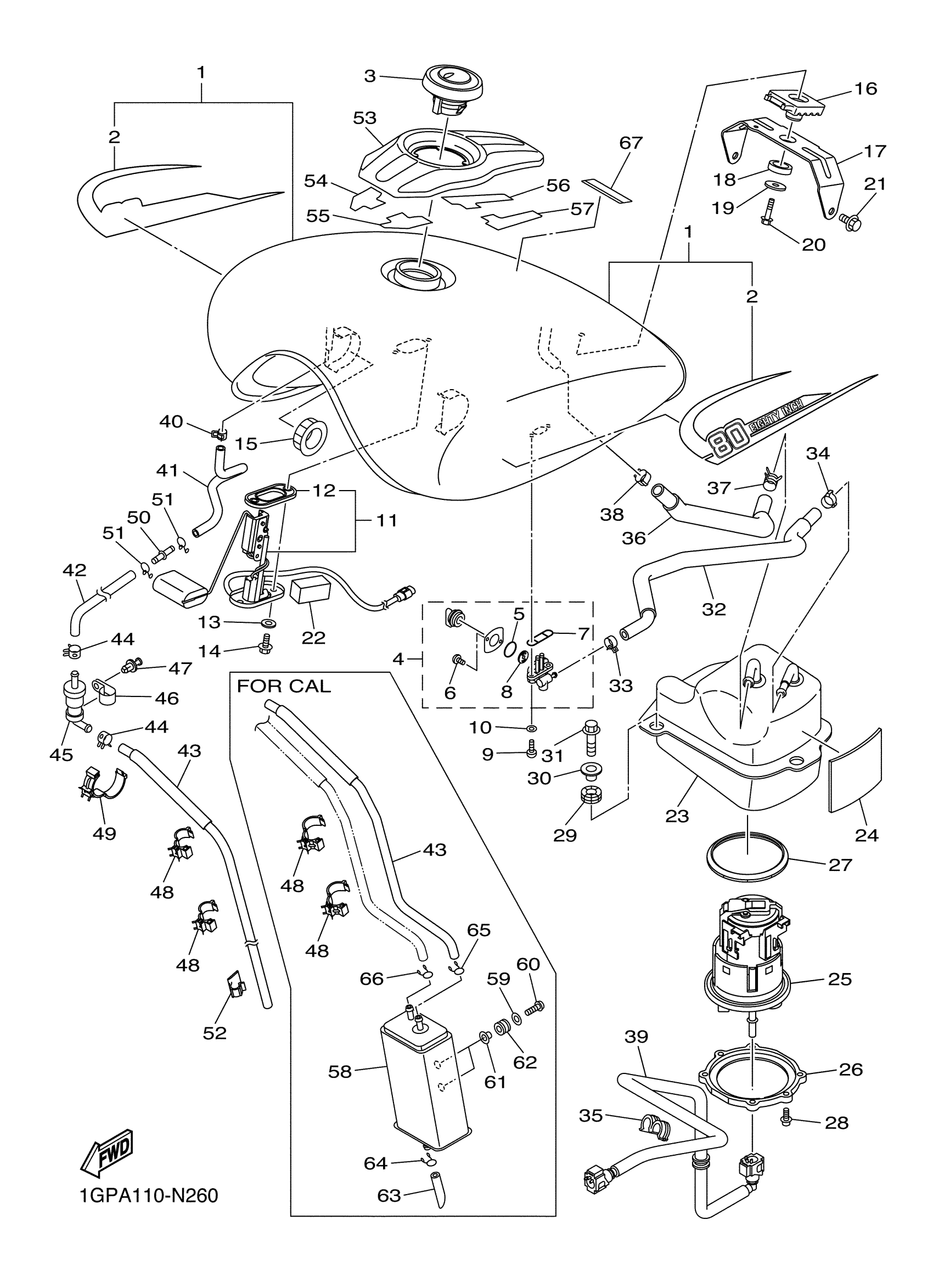

Yamaha XVS13CEGY (STRYKER) 1GPA 2014 FUEL TANK Diagram
#
1
FUEL TANK COMP.
27D-YG241-00-01
Unavailable
2
GRAPHIC SET
1GP-24240-50-00
Unavailable
16
DAMPER, LOCATING 2
1D7-24182-00-00
Unavailable
17
BRACKET, TANK FITTING
27D-2413Y-00-00
Unavailable
18
DAMPER, LOCATING 3
4TR-24183-00-00
Unavailable
19
COLLAR
90387-06177-00
Unavailable
20
BOLT, FLANGE
95812-06030-00
Unavailable
21
BOLT, FLANGE
95817-08012-00
Unavailable
22
DAMPER
2YK-21747-00-00
Unavailable
23
PUMP CASE COMP.
3D8-244A0-00-00
Unavailable
24
DAMPER, PLATE 2
3D8-2414J-00-00
Unavailable
25
FUEL PUMP COMP
3D8-13907-03-00
Unavailable
26
BRACKET, FUEL PUMP
3D8-24491-10-00
Unavailable
27
O-RING
19B-24486-01-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
29
DAMPER, LOCATING 5
3D8-24185-00-00
Unavailable
30
COLLAR(2TV)
90387-062U9-00
Unavailable
31
BOLT, FLANGE
95817-06025-00
Unavailable
32
PIPE, FUEL 1
27D-24311-00-00
Unavailable
33
CLIP
90467-12004-00
Unavailable
34
CLIP
90467-130A1-00
Unavailable
35
CLAMP
90464-19001-00
Unavailable
36
PIPE 2
27D-24312-00-00
Unavailable
37
CLIP
90467-160A2-00
Unavailable
38
CLIP
5PX-2411M-00-00
Unavailable
39
PIPE, FUEL 1
3D8-13971-00-00
Unavailable
40
CLIP
90467-090A5-00
Unavailable
41
PIPE 13
27D-24324-00-00
Unavailable
42
PIPE 14
27D-24325-00-00
Unavailable
43
PIPE 1
27D-2486A-00-00
Unavailable
44
CLIP
90467-09001-00
Unavailable
45
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
46
CLAMP
90464-15014-00
Unavailable
47
RIVET
90269-05005-00
Unavailable
48
CLAMP(4GY)
90464-20191-00
Unavailable
49
CLAMP
90464-30252-00
Unavailable
50
JOINT
4XY-14568-00-00
Unavailable
51
CLIP
90467-090A2-00
Unavailable
53
COVER, TANK
27D-241B1-10-00
Unavailable
54
SEAL 7
27D-241A7-00-00
Unavailable
55
SEAL
27D-24329-00-00
Unavailable
56
SEAL 8
27D-241A8-00-00
Unavailable
57
SEAL 2
27D-2414E-00-00
Unavailable
58
CANISTER ASSY
5PX-24170-00-00
Unavailable
59
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
60
BOLT
90111-06046-00
Unavailable
61
COLLAR(42G)
90387-062L2-00
Unavailable
62
GROMMET (1E5)
90480-13163-00
Unavailable
63
PIPE 11
27D-24322-00-00
Unavailable
64
CLIP
90467-100A1-00
Unavailable
65
CLIP
90467-090A2-00
Unavailable
66
CLIP
90467-090A2-00
Unavailable
67
LABEL, CAUTION
1TP-2118K-A2-00
Unavailable
